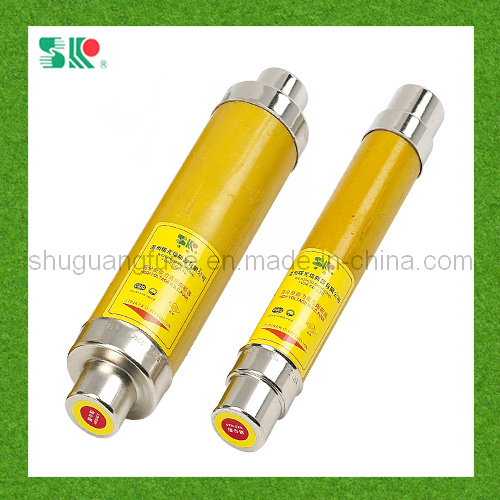

Medium&High Voltage Electrical Epoxy Resin Fuse

Name: Medium&High Voltage Electrical Epoxy Resin Fuse
Brand: all-electronics-online.com
SKU: 711472475
Availability: InStock
Rating: 4.7 (67 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XRNT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Sr
Safety Standards:	IEC, DIN Standard
Color:	Yellow
Material:	Expoy Resin
Length:	192/292/442/537mm
Diameter:	51/76/88mm
Service:	OEM, ODM
Sample:	Avaiable
Delivery:	as Required
Operation:	Electric Type
Breaking Capacity:	High Voltage Circuit Breakers
Type:	Fuse
Usaga:	Transformer Overload and Short Circuit Protection
Shape:	Tubular
Fusing Device:	Striker
Standard:	IEC282-1 GB15166.2

Product Description

Medium&high voltage electrical fuse with siba type:

1. According to bussmann DIN "S" type high performance back-up fuse
2. Comply with IEC282-1, DIN, BS
3. This fuse is intended to protect distribution networks and transformer, for indoor as well as outdoor use.
4. Any other specifications can be designed specially.

Type	Rated voltage (KV)	Rated current (A)	Diameter (mm)	Length (mm)
XRNT1	3.6	6.3 10 16 20 25 31.5 40	51	192
XRNT1	7.2	6.3 10 16 20 25 31.5 40 50 63	51	292
XRNT1	7.2	80 100 125 160	76	292
XRNT1	12	10 16 20 25 31.5 40	51	292
XRNT1	12	50 63 71 80 100	76	292
XRNT1	12	125	76	292
XRNT1	12	160 200	88	292
XRNT1	24	6.3 10 16 20 25 31.5 40	51	442
XRNT1	24	50 63 71 80 100	76	442
XRNT1	24	125	76	442
XRNT1	24	160	88	442
XRNT1	40.5	3.15 6.3 10 16 20 25	51	537
XRNT1	40.5	31.5 40	76	537
XRNT1	40.5	63	88	537
