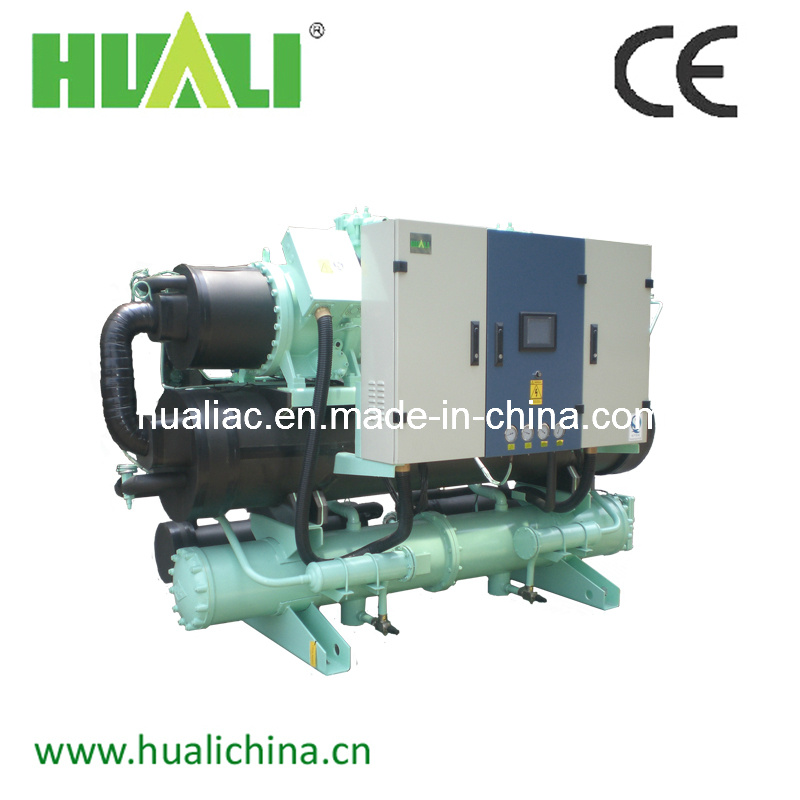

Medium-Low-Temperature Water Chiller
| Price: |
US $ 9999-24999/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
HLWW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heating And Cooling: |
Heating and Cooling |
| Certification: |
CE |
| Type: |
Refrigeration Compressor |
| Usage: |
Refrigerator |
| Control Type: |
Digital |
| Display Type: |
LED |
| Material: |
Stainless Steel |
| Brand: |
Huali |
Product Description
Medium-low-temperature Water Chiller
1. Capacity range: 70-1334KW
2. Modules units include single module type and combined (according to user's requirements) multiple modules type.
3. Advanced semi-hermetic twin-wcrew compressor (or piston compressor) and imported temperature controls of high quality to ensure the unit's performance. Computer control, easy operation.
4. Auto capacity regulation includes multi-stage or stepless (25%-100% continuous)modes.
| Screw-type Industrial Water Chiller (with Heat recovery) |
| Model HLWW ~ | 680SIM | 720SIM | 760SIM | 880SIM | 970SIM | 1040SIM | 1160SIM | 1460SIM | 1710SIM | 1910SIM |
| 680SRIM | 720SRIM | 760SRIM | 880SRIM | 970SRIM | 1040SRIM | 1160SRIM | 1460SRIM | 1710SRIM | 1910SRIM |
Rated Cooling Capacity | ×1000kcal/h | 584.5 | 622.9 | 651.4 | 758.0 | 832.3 | 893.2 | 996.7 | 1252.0 | 1474.1 | 1645.1 |
| KW | 680 | 724 | 758 | 882 | 968 | 1039 | 1159 | 1456 | 1714 | 1913 |
| USRT | 193.3 | 206.0 | 215.4 | 250.7 | 275.2 | 295.4 | 329.6 | 414.0 | 487.5 | 544.0 |
| Input Power | KW | 120.1 | 127.3 | 134.1 | 154.4 | 169.6 | 180.7 | 201.6 | 254.2 | 297.7 | 328.9 |
| × Comp. Input Power×Qty. (KW) | 120.1×1 | 127.3×1 | 134.1×1 | 154.4×1 | 169.6×1 | 180.7×1 | 201.6×1 | 254.2×1 | 297.7×1 | 328.9×1 |
| Comp. Current (A) | 201.8 | 214 | 225.5 | 259.6 | 285.1 | 303.9 | 338.9 | 427.3 | 500.5 | 552.9 |
| Refrigerant | R407C |
| Power Supply | 3φ-380V-50HZ |
| Safety Protection | , , , , , ,
Phase reversion protection, Phase lack protection, Overload current protection,
Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection, |
| Number of Refrigeration Circuit | 1 |
| Capacity Control (%) | 0, 50, 75, 100 |
| Refrigerant Charge (Kg) | 102 | 110 | 115 | 134 | 148 | 158 | 177 | 218 | 256 | 292 |
| Condenser | Shell and Tube Type |
| Water Side Max Pressure (MPa) | 1 |
| Dia. of Pipe to Condenser (inch) | 5" | 5" | 5" | 5" | 5" | 5" | 6" | 6" | 8" | 8" |
| Cooling Water Flow (m3/h) | 137.6 | 146.5 | 153.3 | 178.2 | 195.6 | 209.7 | 234.0 | 294.1 | 346.0 | 385.6 |
| Condenser Water Pressure drop (kPa) | 51 | 51 | 58 | 65 | 67 | 68 | 71 | 74 | 84 | 89 |
| Evaporator | Shell and Tube Type |
| Water Side Max Pressure (MPa) | 1 |
| Dia.of Pipe to Evaporator (inch) | 5" | 5" | 5" | 5" | 5" | 5" | 5" | 8" | 8" | 8" |
| Chilled Water Flow (m3/h) | 116.9 | 124.6 | 130.3 | 151.6 | 166.5 | 178.6 | 199.3 | 250.4 | 294.8 | 329.0 |
| Evaporator Water Pressure drop (kPa) | 47 | 63 | 79 | 40 | 58 | 69 | 72 | 74 | 76 | 79 |
| Running Noise dB(A) | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 | 75.0 |
| Total weight (Kg) | 2520 | 2730 | 2820 | 2980 | 3220 | 3400 | 3680 | 4150 | 4420 | 4780 |
| Running Weight (Kg) | 2800 | 3020 | 3240 | 3400 | 3750 | 4000 | 4250 | 4730 | 5020 | 5380 |
| Heat Recovery |
| Refrigerant Charge (Kg) | 107 | 115 | 120 | 140 | 154 | 164 | 185 | 228 | 266 | 306 |
Heat Reclaimed Volume | ×1000kcal/h | 175.4 | 186.9 | 195.4 | 227.4 | 249.7 | 268 | 299 | 375.6 | 442.2 | 493.5 |
| KW | 204 | 217 | 227 | 264 | 290 | 312 | 348 | 437 | 514 | 574 |
| USRT | 58 | 61.8 | 64.6 | 75.2 | 82.6 | 88.6 | 98.9 | 124.2 | 146.2 | 163.2 |
| Dia. of Pipe to Heat Recover (inch) | 2-1/2" | 2-1/2" | 2-1/2" | 3" | 3" | 3" | 3" | 4" | 4" | 4" |
| Water Side Max Pressure (MPa) | 1 |
| Reclaimed Water Flow (m3/h) | 35.1 | 37.4 | 39.1 | 45.5 | 49.9 | 53.6 | 59.8 | 75.1 | 88.4 | 98.7 |
Heat recovery unit water pressure Drop (kPa) | 27 | 26 | 26 | 27 | 28 | 31 | 33 | 34 | 35 | 35 |
| Total Weight (Kg) | 2620 | 2830 | 2920 | 3080 | 3320 | 3500 | 3780 | 4710 | 5080 | 5470 |
| Running Weight (Kg) | 2900 | 3120 | 3340 | 3500 | 3850 | 4100 | 4350 | 5320 | 5700 | 6100 |
| Dimension L×W×H | HLWW~ SIM | 3000×1500×1550 | 3600×1500×1550 | 3600×1500×1650 | 3600×1500×1750 | 4150×1750×1700 | 4300×1950×1750 |
| Dimension L×W×H | HLWW~ SRIM | 3100×1500×1550 | 3100×1500×1600 | 3700×1500×1600 | 3800×1500×1700 | 3800×1500×1750 | 4600×1850×1900 | 4700×1950×2050 |
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.
We found the Domestic Market Department, Overseas Markets Department,
Research & Development Department in December, 2008.
We applied for CE certification and passed in 2009.
We applied for 6 software registration rights in 2010.
We applied for 3 utility model patents in 2011.
Our company was approved as a national high-tech enterprise on November 5, 2012.
Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
