Medium Voltage 3 Core XLPE Insulation Swa Armoured Power Cable
| Price: |
US $ 0.5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
CU/XLPE/SWA/PVC |
| Core: |
Single Core, Multicore, 3 Core, Four Core, 5 Core |
| Standard: |
ASTM/BS/GB/IEC |
| Certificate: |
CCC/Ce/SGS |
| Insualtion Color: |
Black, Red |
| Conductor Flexibility: |
Stranded Class 2 |
| Armour Type: |
Galvanized Steel Wires |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
CE |
| Sheath Material: |
PVC/PE |
| Model: |
Cu/XLPE/PVC |
| Brand: |
Jytop |
Product Description
Medium Voltage 3 Core XLPE Insulation Swa armoured Power Cable Application:

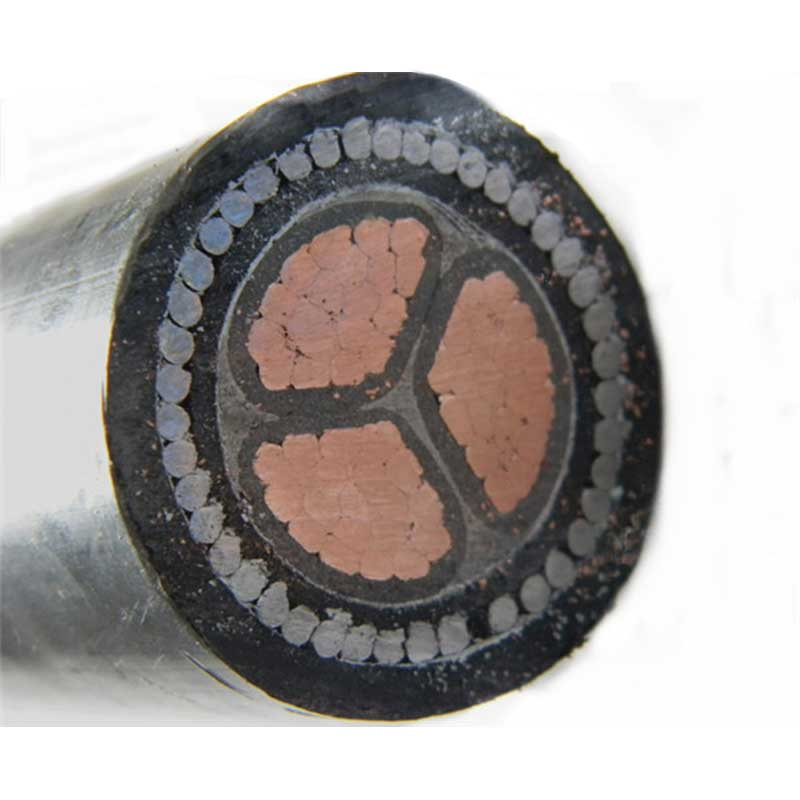

Cu/XLPE/CTS/PVC/SWA/PVC 11kV medium voltage power cable may be used for power networks, in fixed installation outdoors in cable ducts or directly in the ground. The cable consists of a Class 2 stranded copper conductor, semi conductive conductor screen, XLPE insulation, semi conducting layer with a plain copper tape screen, PVC bedding, Aluminium Wire Armour and red PVC outer sheath. 6350/11000 volts to BS6622 and IEC 60502-2, flame retardant to IEC 60332-1.
Technıcal Data
Permissible operating temp. : 90 °C
Maximum short circuit temp. : 250 °C (for + ≤ 5 second)
Test voltage (AC): 3.5 kV
Installation temp. min: -5 °C
Description & Application:
| Cross sectionmm2 | Stranding mm | Approx weight kg/km | Approx overall diameter | Gland size mm | Single cleat | Nom. Max. DC-resist conductor 20°C ohm/km | Current rating laid direct amp |
| 3 x 16 | 7/1.70 | 3,440 | 44.3 | 40 | 1.8 | 1.15 | 119 |
| 3 x 25 | 7/2.14 | 4,060 | 48.5 | 50 | 2 | 0.727 | 152 |
| 3 x 35 | 7/2.52 | 4,495 | 50.5 | 50 | R9 | 0.524 | 181 |
| 3 x 50 | 19/1.78 | 5,115 | 53.0 | 63s | R9 | 0.387 | 213 |
| 3 x 70 | 19/2.14 | 6,035 | 56.8 | 63s | R10 | 0.268 | 260 |
| 3 x 95 | 19/2.52 | 7,180 | 61.3 | 63 | R10 | 0.193 | 309 |
| 3 x 120 | 37/2.03 | 8,280 | 65.1 | 75s | R11 | 0.153 | 349 |
| 3 x 150 | 37/2.25 | 9,325 | 66.8 | 75s | R11 | 0.124 | 390 |
3 Core: Brown, Black & Grey Tapes |
| 3 x 185 | 37/2.52 | 10,740 | 72.3 | 75 | R12 | 0.0991 | 436 |
| 3 x 240 | 61/2.52 | 13,820 | 79.3 | 90 | R14 | 0.0754 | 499 |
| 3 x 300 | 61/2.85 | 16,120 | 84.2 | 90 | R15 | 0.0754 | 553 |
| 3 x 400 | 61/3.20 | 19,350 | 92.4 | Â - | R15 | 0.0470 | 619 |
Advantages:
a. Excellent electric and mechanical characteristics
b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
c. Simple in structure
d. Convenient to use
e. Light weight,perfect bending propertiesWhat kinds of products does JYTOP Cable manufacture?1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;3)PVC Insulated (Flexible ) Wire ;4) PVC Insulated and Sheathed (Armoured) Power Cable;5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on Which markets do you involve mainly in?Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia, etc. Which standards do you comply with when you produce the electrical wires and cables ?We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.ACHIEVEMENTS & COMMITMENTOur cable has been exported to South-East Asia, South Asia, Middle-East, Europe, North and South America, Africa, Australia & New Zealand and so on. Zhengzhou Jinyuan Wire and Cable Co., Ltd.'s commitment is to be recognized as a zero-defect world class manufacturer in cable industry through continuous improvement of our quality, processes, and products, and by our determination to exceed our clients' expectations. Why Choose us? For over 20 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional cable manufacturer has been producing customized cable for a wide range of applications based on high quality, excellent service and competitive market prices. This is an elite team with experienced personnel and strong technical support. Our achievements benefit by having access to the largest market for cheap labor and abundant resources in China and our determination to exceed our clients' expectations.
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
