| Prod Model: |
MIT-600 |
| Application: |
Rectifier |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
Product Description

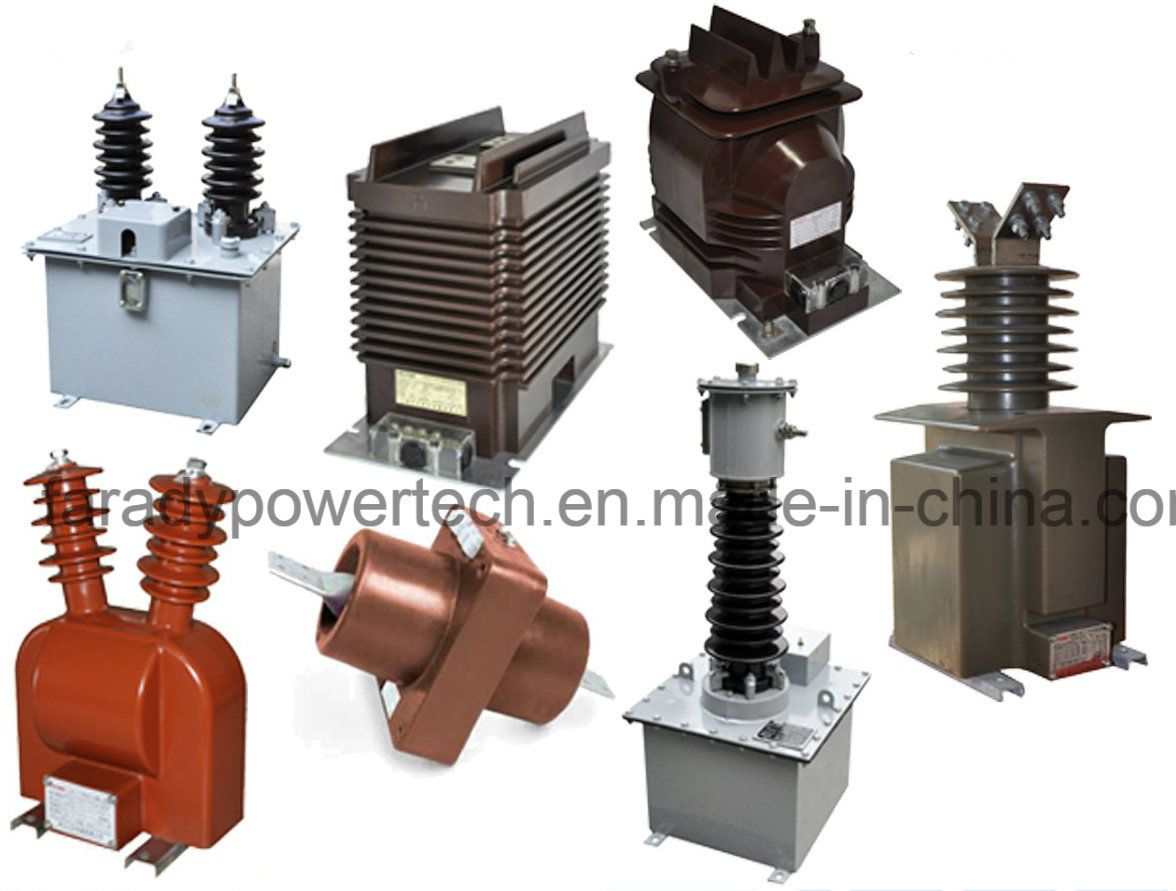

Medium Voltage Instrument power Transformer
30 years Manufacturing history,
10 years Japan OEM, to create high-quality!
We have all kind of instrument transformer from 0.3-40.5kV.
No matter what kind of specification, you want, then we have.
Email us, we will do full support!
Our instrument transformer range:
| Type of insulation | Type of installation | Medium voltage | Accuracy class | Type of using |
| Epoxy | Indoor | 3kV | 0.2S | Metering |
| Oil immersed | Outdoor | 6kV | 0.2 | Protection |
| Porcelain | Busbar | 7kV | 0.5S | Power supply |
| Polymer | Bushing | 10kV | 0.5 | Zero sequence |
| PVC | Split core | 11kV | 5P10 | Discharging |
| | Window | 13.8kV | 5P20 | Combined |
| | | 15kV | 5P30 | |
| | | 17.5kV | 5P40 | |
| | | 20kV | 10P10 | |
| | | 23kV | 10P20 | |
| | | 27kV | 10P30 | |
| | | 33kV | 10P40 | |
| | | 35kV | 3P | |
| | | 38.5kV | 6P | |
| | | 40.5kV | | |
General
This indoor dry type instrument transformer used in 10kV, 11kV power system, for measuring and protection.
It have been used in cubicle switchgear or in bay-installed switching stations.
The current transformer made from high temperature indoor epoxy resin, amorphous alloy core for metering and high quality CRGO core for protection, primary and secondary use pure electrolytic copper, both winding and core have shielding processing.LQJ-11kV indoor epoxy resin current transformer
Standards
All SAGHU Electric instrument transformers are in conformity with IEC standards, and recommendations IEC 60044-1. Transformers in conformity with specific country standards can also be supplied. (IEEE C57.13, NBR6855).
Founded in 1999, with a registered capital of 10 million USD, Zhejiang Farady Powertec Co enjoys about 20 years' experience in medium voltage distribution electrical equipment manufacture.
We are National Hi-tech enterprise, National Spark plan Program, State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.
Farady is located in Ecomonic develop Zone of Yueqing, Zhejiang, China, main products include: Auto recloser/gas insulated load break switch/capacitor switch/ring main unit/vacuum circuit breaker/SF6 switch disconnector.
All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid.
With ISO9001/14001/18001, we are strike for create value for our partner and customer.
There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.
Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from China, and contributes its share to the transformation from the Made in China into the Invented in China.
Our Advantages:
(1). Professional team: Farady before-sales engineering team give you full support as whole solution
(2). Adquate sale reference: Export to 55 countrys with good sale reference and international bid experiencec
(3). Paper work: Full ISO certificate and product type test convince end user
(4) Quality Assurances
We have a strictly quality control process from the raw material to finished products. Advanced testing lab to make sure products quality and improve our creative ability. Quality and Safety is the soul of our products.
(5) Excellent Services
Many years of manufacturing experience and rich export business help us to establish a well-trained sales service team for all customers.
(6) Fast Deliveries
Strong manufacture capacity to satisfy urgent leading time. It is around 15-25 working days after we receive the payment. It varies according to the different products and quantity.
(7) OEM ODM and MOQ
Strong R&D team for quick new products' development, we welcome OEM, ODM and customize request order. Whether selecting a current product from our catalog or seeking engineering assistance for your application. You can tell us about your sourcing requirements
