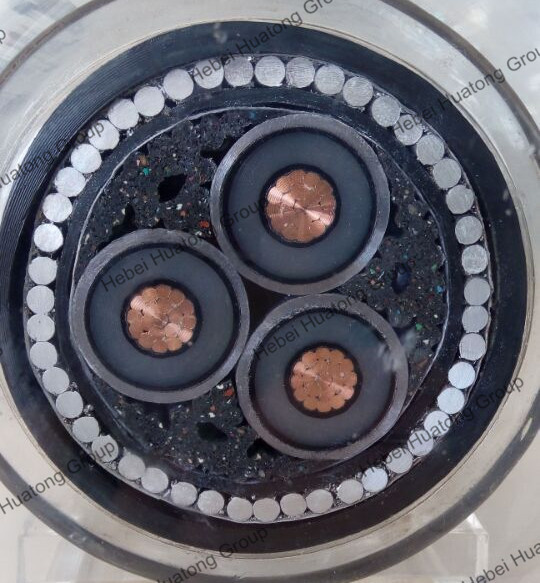

Medium Voltage XLPE Insulated Armored Power Cable
| Price: |
US $ 12-12.9/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
YJV32, YJLV32 |
| Markets: |
North America,South America,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
3.6/6kv, 6/10kv(11kv), 12/20kv(24kv), 19/33kv, 26/ |
| Cors: |
1 or 3 Cores |
| Cross Section: |
25mm2-800mm2 |
| Standarad: |
IEC60245 |
| Certificate: |
UL,CE,TUV |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Power Station |
| Insulation Material: |
XLPE |
| Certification: |
UL |
| Conductor Material: |
Copper or Aluminum |
| Range Of Application: |
Construction,Power Station, Underground |
| Brand: |
Rne Da |
Product Description

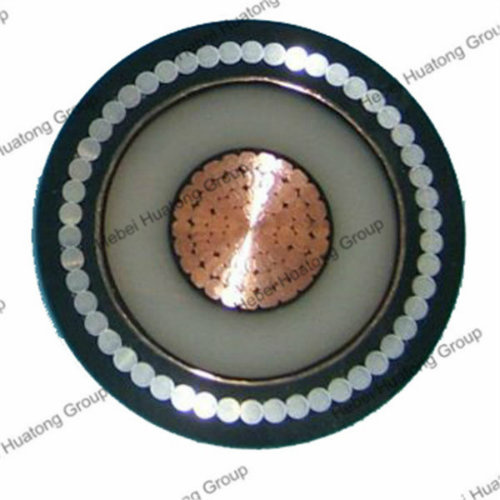

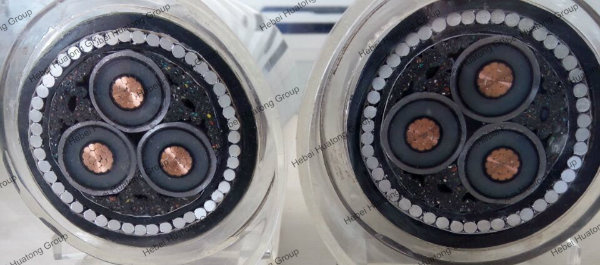

Medium voltage xlpe insulated armour power cable1 Application: It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable. Power cables for power networks, underground, outdoors and in cable ducting 2 Construction Standards: BS6622, BS EN/IEC 60228,IEC60502.2Conductor: Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)Conductor screen: Semi-conducting materialInsulation: XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655Insulation Screen: Semi-conducting materialMetallic Screen: Individual and overall copper tape screen to BS6622Filler: PET (Polyethylene Terephthalate) fibresSeparator: Binding tapeBedding: PVC (Polyvinyl Chloride) Type TM1 to BS7655Armoring:Single Core: Aluminum Wire Armored (AWA)MultiCore: Steel Wire Armored (SWA)Sheath: PVC (Polyvinyl Chloride) Type TM1 to BS7655Color: Red or Black 3 Using features: 1.Rated voltage: Uo/U:3.6/6kV, 6/10kV(11kV), 12/20kV(24kV), 19/33kV, 26/35kV(35kV).2. No. of core: Single core or three cores.3. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250ºC.4. D.C. resistance of the conductor complies with the stipulations of 3.6/6kV, 6/10kV(11kV), 12/20kV(24kV), 19/33kV, 26/35kV(35kV).5. The environment temperature should be no lower than 0oC when lay. Otherwise it should be preheated.6. The cable is laid without horizontal drop limit.7. Working Frequency Voltage Test: 3.5Uo/5min without puncture.8. Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.9. Minimum Bending RadiusSingle core - Fixed: 15 x overall diameter3 core - Fixed: 12 x overall diameter(Single core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former) Note:The single core armored cables are used for D.C. system only. If used for A.C. system, the magnetic isolation should be applied on the steel armor wires of non-magnetical materials should be used.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
