| Prod Model: |
VV |
| Product Name: |
XLPE Power Cable Insulated Power Cable Armoured Ca |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Model: |
VV |
| Brand: |
Gemt |
Product Description
Product Description
1. Standards: GB/T12706-2008, IEC60502-2005.

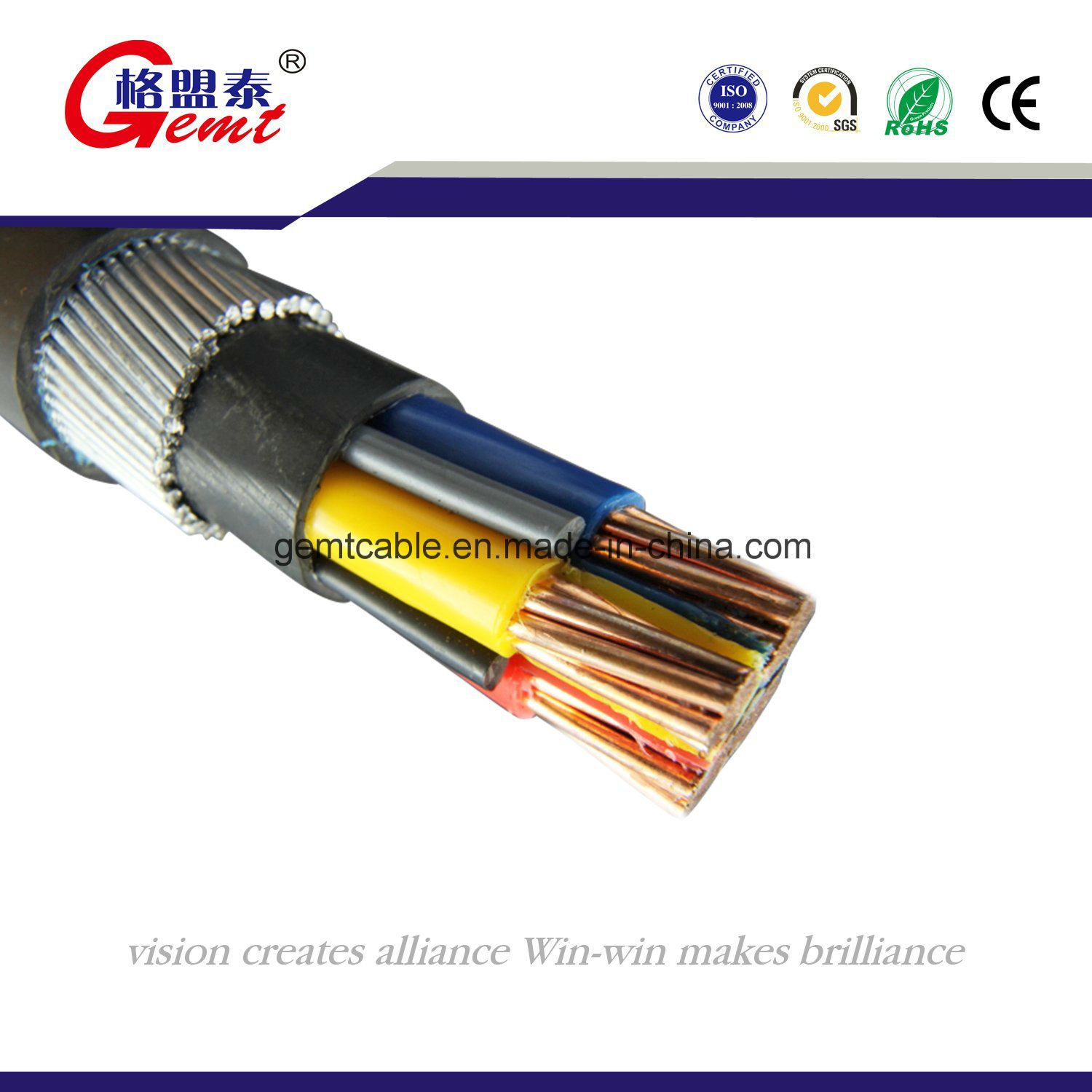

2. Description: copper conductor, XLPE insulated PVC sheathed steel tape armoured power cable.
3. Conductor: Copper.
4. Insulation/sheath:XLPE/ PVC
5. Voltage:0.6/1KV
6. Type ,description and application
| Type | Description | | Application |
YJV(YJY)
YJLV(YJLY) |
Copper (Aluminum) conductor , XLPE insulated PVC sheathed power cable. |
| For laying indoors, in tunnels, in ducts. Able to bear external mechanical force but not lager pulling forces. Single core cables are impermissible to be laid in magnetic ducts. |
YJV22(YJY22)
YJLV22(YJLY22) |
Copper (Aluminum) conductor , XLPE insulated PVC sheathed steel tape armoured power cable. |
| For laying indoors, in tunnels, in ducts and underground. Able to bear external mechanical force but not lager pulling forces. Impermissible to use single core cable in A.C circuit. |
7. Specification
Type |
NO. of cores | Rated Voltage (kV) |
| 3.6/6 | 6/6
6/10 | 8.7/10
8.7/15 | 12/20 | 18/20
18/30 | 21/35 | 26/35 |
| Nominal cross -section of conductor |
YJV
YJLV
YJY
YJLY | 1 | 25-800 | 25-800 | 25-800 | 35-800 | 50-630 | 50-630 | 50-630 |
| 3 | 25-630 | 25-630 | 25-500 | 35-500 | 50-400 | 50-400 | 50-400 |
YJV22
YJLV22
YJY23
YJLY23 | 1 | 25-800 | 25-800 | 25-800 | 35-800 | 50-630 | 50-630 | 50-630 |
| 3 | 25-630 | 25-630 | 25-500 | 35-500 | 50-400 | 50-400 | 50-400 |
YJV32
YJLV32
YJY33
YJLY33 | 1 | 25-800 | 25-800 | 25-800 | 35-800 | 50-630 | 50-630 | 50-630 |
| 3 | 25-630 | 25-630 | 25-400 | 35-400 | 50-240 | 50-185 | 50-150 |
Operation characteristic
Operation temperature
The maximum operating temperature of cores shall not exceed 90ºC when the cable is used for long period. The temperature of cores shall not exceed 250ºC at short circuit for 5 seconds. The laying temperature should not below 0ºC during installation.
Permissible bending radius
The permissible bending radius for cables shall be with the regulation as below:
For single-core no armoured cable: R>12D For multi-core:R>10D
Where: R-bending radius (mm) D-overall diameter of the cable (mm)
The single core cable of using in AC circuit shall be without armour or with steel wire and shall not be laid magnetic ducts.

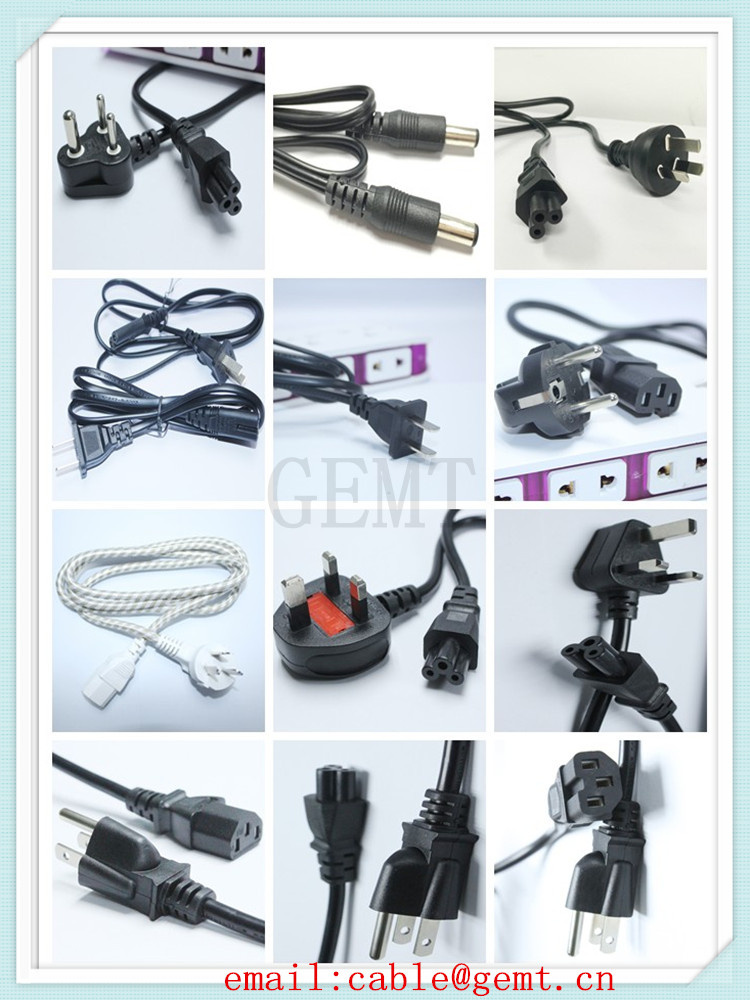

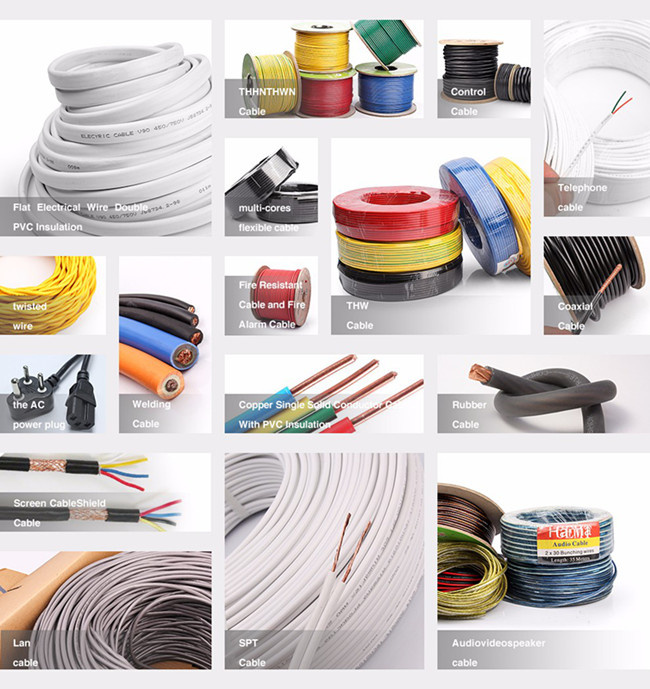

Related Products
Our Company
Gemt Cable Co., Ltd is a professional manufacturer and supplier of Lan cable, Flat cable, Welding cable, Speaker cable, Audio cable, Video cable, Coaxial cable, Power cable, Telephone cable, Home electrical cable, etc. With years of export experience along with excellent quality, advanced services and competitive prices, Gemt has won numerous customers' trust and support.

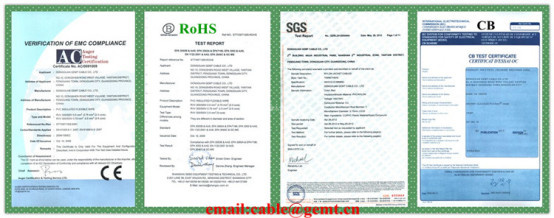

Certifications
