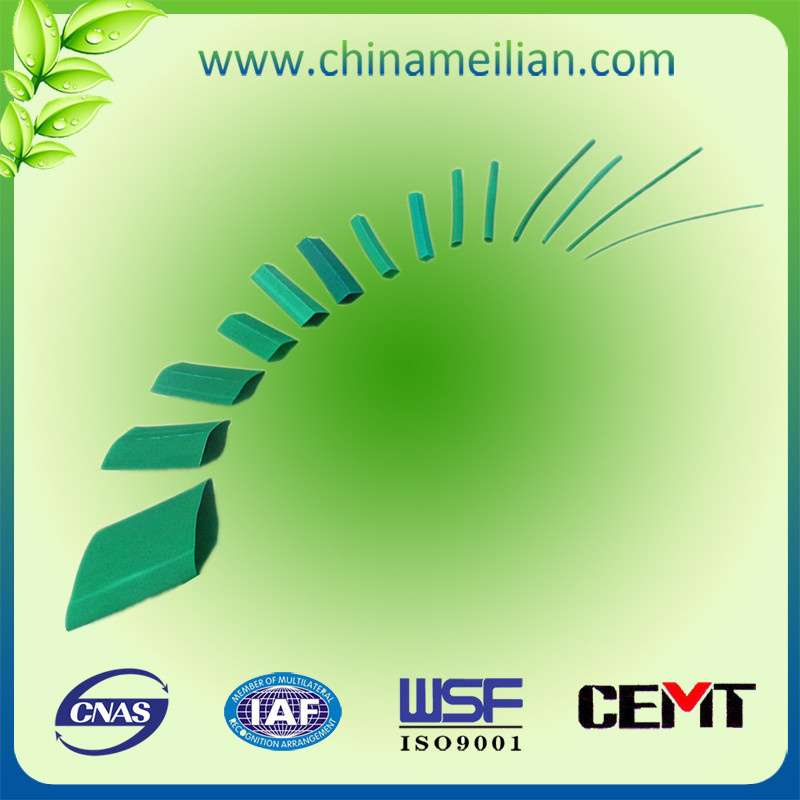

Medium Wall Adhesive Heat Shrink Busbar Sleeve

Name: Medium Wall Adhesive Heat Shrink Busbar Sleeve
Brand: all-electronics-online.com
SKU: 786558965
Availability: InStock
Rating: 4.4 (87 reviews)

Price:	US $ 10/Piece
Min Order:	100/Piece
Pay Type:	L/C,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-111
Colour:	White, Other Colors According to Request
Application:	Switch Baseplate
Chemistry:	Hybrid Insulation
Maximum Voltage:	>100KV
Type:	Insulation
Material:	PE,PVC
Thermal Rating:	<100
Color:	as Customers Requirment
Brand:	Mj

Product Description

Adhesive heat shrinking Sleeve
Description
Medium&heavy wall heat shrink tube is manufactured by polyolefin and hot melt adhesive. Used for insulating and protecting middle connections and terminals of medium& low voltage cable, busbars and other places where flame retardance is demanded and resisting corrosion and abrasion for pipelines.
Standad color: Black, white, red, yellow, blue, green, grey.

Specification sheet:

Flexible Heat Shrinkable Thin Wall crosslinked Polyolefin tubing

Property	Test condition	performance
Tersile strength		≥12MPa
Elongation		≥400%
Tensile strength after aging	After 7 days air oven at 158ºC	≥10MPa
Elongation afteraging		≥300%
Deformation test	1hr at 131ºC	≤25%
Heat shock test	4hr at 250ºC	No cracking
Conductor corrosion	After 7 days air oven at 158ºC	NO Corrosion
Volume resistivity		≥1014Ω.cm
Dielectric strength		≥12KV/mm
Cold bend test	1hr at -30ºC	No Corrosion
longitudinal change	3minute air oven at 200ºC	±5%
Eccentricity		≤30%
Flammability		ThroughVW-1
Minimum Complate shrink temperature		90ºC(3min)

Standard Size
SIZE(mm)	I.D OF AS SUPPLY (mm)	Wall OF AS SUPPLY(mm)	I.D OF AFTER RECOVERED(mm)	WALL OF AFTER RECOVERED(mm)	LENGTH PER COTL(m/roll)
SIZE(mm)	I.D OF AS SUPPLY (mm)	Wall OF AS SUPPLY(mm)	I.D OF AFTER RECOVERED(mm)	WALL OF AFTER RECOVERED(mm)	LENGTH PER COTL(m/roll)
1.0/0.5	>1.0	0.2±0.05	≤0.5	0.4±0.05	400
1.5/0.75	>1.5	0.2±0.05	≤0.75	0.4±0.05	300
2.0/1.0	>2.0	0.25±0.05	≤1.0	0.45±0.05	200
2.5/1.25	>2.5	0.25±0.05	≤1.25	0.45+0.1	200
3.0/1.5	>3.0	0.25±0.05	≤1.5	0.45+0.1	200
3.5/1.75	>3.5	0.25±0.05	≤1.75	0.45+0.1	200
4.0/2.0	>4.0	0.25±0.05	≤2.0	0.45+0.1	200
4.5/2.25	>4.5	0.35±0.1	≤2.0	0.60+0.1	100
5.0/2.5	>5.0	0.35±0.1	≤2.5	0.55+0.1	100
6.0/3.0	>6.0	0.35±0.1	≤3.0	0.55+0.1	100
7.0/3.5	>7.0	0.35±0.1	≤3.5	0.55+0.1	100
8.0/4.0	>8.0	0.35±0.1	≤4.0	0.55+0.1	100
9.0/4.5	>9.0	0.35±0.1	≤4.5	0.55+0.1	100
10.0/5.0	>10.0	0.35±0.1	≤5.0	0.60+0.1	100
11.0/5.5	>11.0	0.35±0.1	≤5.5	0.60+0.1	100
12.0/6.0	>12.0	0.35±0.15	≤6.0	0.70+0.1	100
13.0/6.5	>13.0	0.35±0.15	≤6.5	0.70+0.1	100
14.0/7.0	>14.0	0.35±0.15	≤7.0	0.70+0.1	100
15.0/7.5	>15.0	0.35±0.15	≤7.5	0.70+0.1	100
16.0/8.0	>16.0	0.35±0.15	≤8.0	0.70+0.1	100
18.0/9.0	>18.0	0.4±0.15	≤9.0	0.80+0.1	50
20.0/10.0	>20.0	0.5±0.15	≤10.0	0.90+0.1	50
22.0/11.0	>22.0	0.5±0.15	≤11.0	0.90+0.1	50
25.0/12.5	>25.0	0.5±0.15	≤12.5	0.90+0.1	25
28.0/14.0	>28.0	0.5±0.15	≤14.0	0.90+0.1	25
30.0/15.0	>30.0	0.55±0.2	≤15.0	1.00+0.2	25
35.0/17.5	>35.0	0.55±0.2	≤17.5	1.00+0.2	25
40.0/20.0	>40.0	0.55±0.2	≤20.0	1.00+0.2	25
50.0/25.0	>50.0	0.55±0.2	≤25.0	1.00+0.2	25
Standard color:black, white,red,yellow,blue,green.

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
