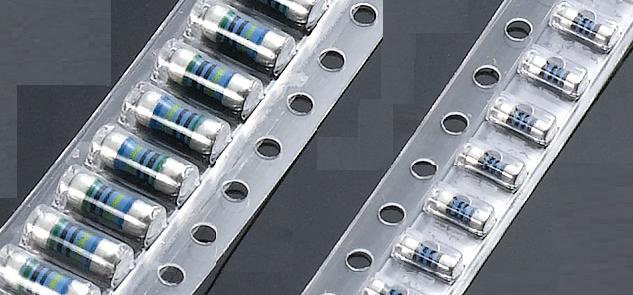

Melf Type Fusible Resistors

Name: Melf Type Fusible Resistors
Brand: all-electronics-online.com
SKU: 691437131
Availability: InStock
Rating: 4.7 (57 reviews)

Price:	US $ 0.1/Piece
Min Order:	9000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RRM series
Resistance:	Fixed Resistor
Function For Resistance:	Sampling Resistor
Installation:	SMD Resistor
Material:	Metal Film Resistor
Package Type:	Surface Mount
Type:	Fuse Resistor
Brand:	Thunder

Product Description

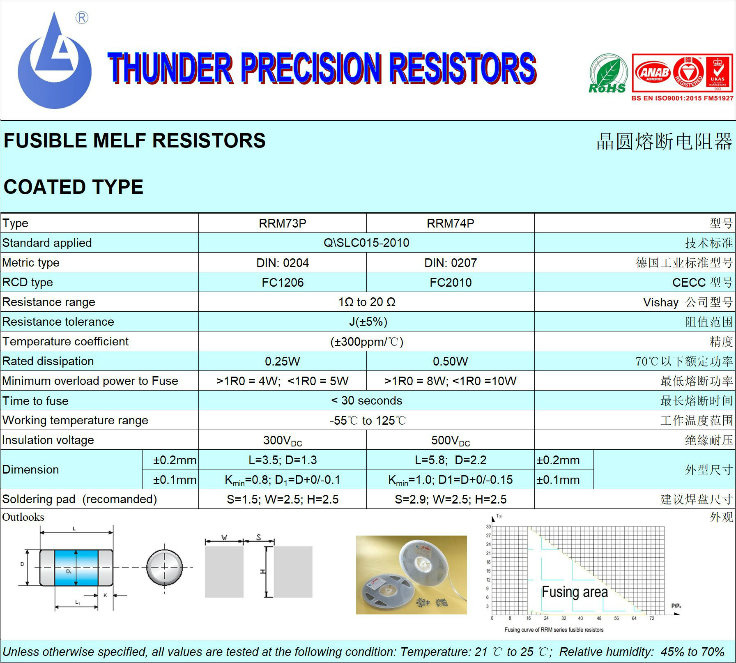

RRM series MELF fusible resistors for constant voltage are designed as fusible safety resistor (or, AC mains input resistors) in electric appliances and energy meters for overload protection. The specially selected resistive film and trimming method and special non-flammable silicon cement coating material are adopted to ensure safe and silent fusing operation without flame on immediate interruption in overload.
The fusing time of the RRM series fusible resistors could be influenced by the ambient temperature since the resistors could be derating caused by the high temperature surrounding.
RRM series fusible resistors could be performance normally when operated within the permissible power dissipation as shown in the derating curve.
RRM series MELF type fusible resistors are the right crosses to Vishay's LCM series fusible resistors with on time delivery.
RRM series Melf type fusible resistors . Wide range of overload currents is available upon request

Thunder Precision Resistor Co., Ltd. is a 25 years experienced professional manufacturer of high precision resistors and ultra-high precision resistors and varies special resistors as well as hgih precision resistor netwouds.

All production is strictly controlled and follows an extensive set of instructions established in production procedure for reproducibility which was introduced from Europe in 1988.

The quality of the products is always the first priority in Thunder Precision Resistors that is our company quality policy.

BSI issued ISO9000 Quality Management Certificate to Thunder Precision Resistors in 1998 and upgraded it in June 2016 to ISO9001: 2015.

We are going to get the certificate of IATF16949: 2016 by the end of the year that is automotive sector quality management systems updated from TS16949-2009 in Oct., 2018
