| Prod Model: |
PT-M008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Explosion Proof: |
Exibllct4 |
| Standard Wetted Parts: |
Diaphragm Coated 15-5 pH Sst |
| Output: |
3.33 Mv/V, 2mv/V |
| Input Voltage: |
10VDC |
| Mounting Torque: |
500 Inch/Lbs. Maximum |
Product Description
Introduction

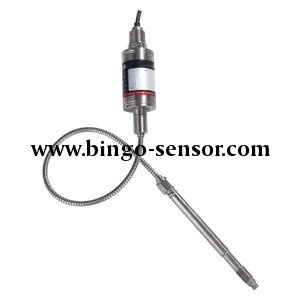

PT-M008 Series melt pressure transducer is ideal for space restricted areas applications
Required, where mounting space is limited. It also has a free-spinning jam nut that simplifies
Installation. The PT124G comes equipped with six or eight pin bendix connector. It can be
Interchangeable with the similar world standard products. It is suitable to measure and
Control the melt pressure in chemical fiber equipment, rubber and plastic machine and so on.
Technical Parameter
| Pressure range | 0-3.5MPa^ 0-150MPa(0-500psi^0-20000psi) |
| Over Pressure | 1.5 X FSO |
| Combined Error | ±0.5% FSO, ± 1.0% FSO (Including Linearity, Repeatability & Hysteresis) |
| Output | 3.33 mV/V, 2mV/V |
| Input Voltage | 10VDC |
| Repeatability | +/- 0.2%FSO |
| Bridge Resistance | Input: 345 Ohms minimum Output: 350 Ohms +/- 10% |
| Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
| Insulation Resistance | 200 megohms @ 100 Vdc |
| Max Diaphragm Temperature | 350ºC |
| Mounting Torque | 500 inch/lbs. maximum |
| Explosion proof | ExibllCT4 |
| Standard Wetted Parts | Diaphragm coated 15-5 PH SST |
| Process connector | 1/2″-20UNF, M14×1.5, M18×1.5 Optional
|
