Membrane Circuit Keyboard Panel Metal Dome Switch

Name: Membrane Circuit Keyboard Panel Metal Dome Switch
Brand: all-electronics-online.com
SKU: 616555824
Availability: InStock
Rating: 4.4 (80 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC-MDS-009
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Touch Feeling:	Excellent Touch Feeling
Material:	Silicone
Type:	Convex
Application:	With Remote Control

Product Description

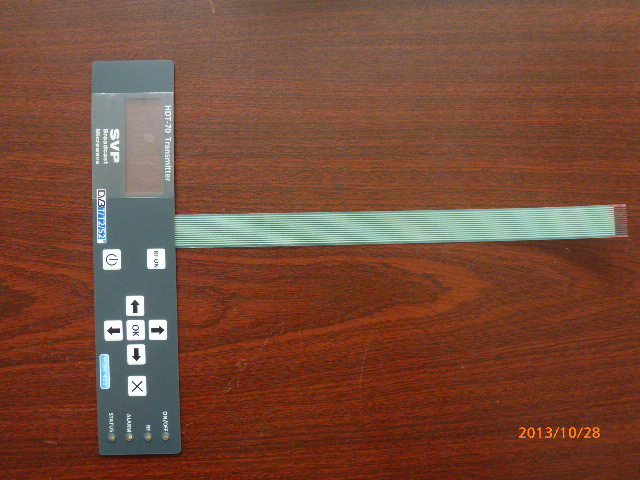

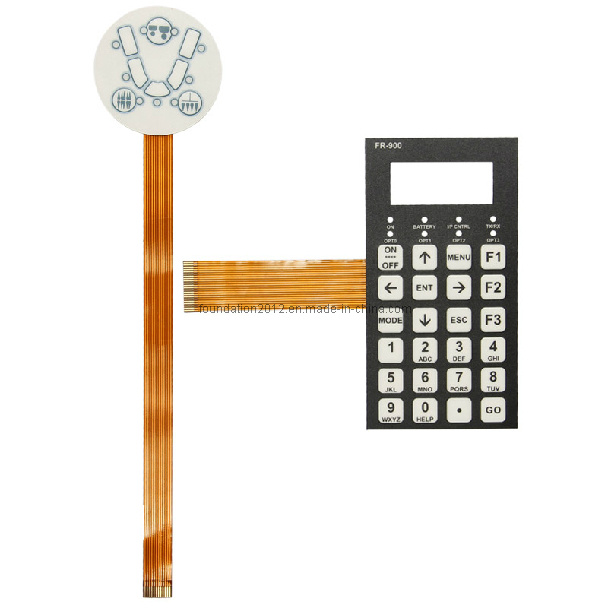

Membrane Circuit Keyboard Panel Metal Dome Switch

We have more than ten years experience of design and manufacturing in Membrane Switches and Silicone Rubber Keypads.

Our Products are popular used in electronics, appliances, hospital equipment and military vehicles.

We are very proud that we have been providing our best service to more than 100 stable customers all over the world.
1 Material: PET /PC
2 Adhesive: 3M467 & 3M468 or as per request
3 High life time :>1million times
4 Pass: ISO9001:2008 RoHS.SGS
5 High quality
4. Commercial terms:
MOQ: 100pcs
Payment Terms: T/T or L/C
Mold Charge: 100% in Advance
Sample Time: 9-10 days after drawing approval.
Lead Time for production: 15-22 days after sample approval

5. Applications:
Our membrane switches are widely used in:

Medical Equipment
Telecommunications apparatus
Telephone systems
Household appliances
Security systems
Industrial controls
6. Specifications:

wire lead resistance:<1Ω/CMLife time:>1 Million times
rated current:25-100mA,0~30V DCOperation Temperature:-40~70
Rated Voltage:<50V, DCOperation Humidity:at40,<98%RH
Insulation resistance:<100MΩ,250V DCDome springback time:<5 msec
Switch travel:Flat Type 0.05-0.3mmBase Material voltage withstand:1500 V DC
tactile type:0.3-1.5mmTail flexiblility:any angle within 180 degree

7. Company Advantage:
1) Top managers are experienced in the same field for many years.
2) Professional staff and workers.
3) Strong R&D cabability
4) Quick Delivery
5) Competitive price
6) Two factories are available for large orders
7) Expert sales team and good customer service.

	Technical Specification Of Membrane Swithc
wire lead resistance:	<1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0~30V DC	Operation Temperature:	-104°F~158°F
Rated Voltage:	<50V, DC	Operation Humidity:	at104°F,<98%RH
Insulation resistance:	<100MΩ,250V DC	Dome springback time:	<5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.

We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.

Our main product range are:

1)Membrane Switch and overlay

2)Flexible printing Circuit/ FPC/EL

3)Silicone products including silicone rubber key pad. And various silicone Rubber products.

4) Metal nameplate series

5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector

We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.

We sincerely hope can cooperate with you in the coming future!
