Mes Series Current Transformer (MES)

Name: Mes Series Current Transformer (MES)
Brand: all-electronics-online.com
SKU: 698039585
Availability: InStock
Rating: 4.8 (55 reviews)

Price:	US $ 1.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50/60Hz
Primary Current:	5A---3000A
Safe Factor:	Fs5
Secondary Current:	5A/1A
Application:	Electronic
Type:	Current Transformer
Phase:	Both

Product Description

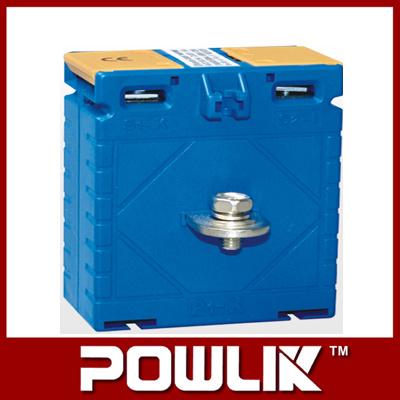

MES Series Current Transformer

1. DESCRIPTION
A range of (10 frames) compact design plastic case current transformer. It's volume is much smaller than general model, integral hinged plate terminal cover, DIN rail mounting all makes this series CT match the requirements in space limited panels.

2. FEATURE
Three built in fixing methods: Side base; DIN Rail;
Busbar mounting
Built in hinged terminal cover
Compact design
Primary current from 5A to 3000A.

3. SPECIFICAIONS
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage, (Um) 0.72Kv AC.
Continuous overload, (ID) 1.2In
Operating temperature 10º C~50º C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
