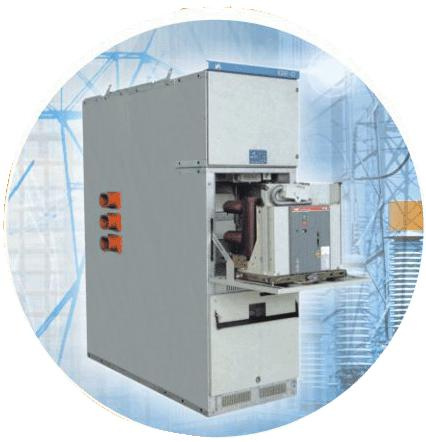

Metal-Clad Two-Layer Draw-out Type Switchgear
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
KSN1-12(KYN39-12) |
| Phase: |
3 Phase |
| Rated Frequency: |
50Hz |
| Rated Voltage (Kv): |
3, 6, 7, 2, 12 |
| Degree Of Protection: |
IP4X |
| Main Busbar Rated Current: |
630, 1250, 1600, 2000, 2500, 3150 |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
Product Description
General:
KSN1-12(KYN39-12) Metal-clad Two-layer Draw-out Type Switchgear is a kind of indoor complete set of electric apparatus with 3~10kV, three phases alternative current 50Hz single busbar and single busbar segment system. It is mainly used in power plants, industrial and mining enterprise for power distribution, and for power feeding and electric power supply in the secondary substation of power supply system. And in big-size HV motor starting fields, it could be used as controlling, protection and monitoring. This switchgear is two-layer structure matched with inner main switch, which could be VT2 vacuum circuit breaker and ZN18-12 vacuum circuit breaker, or VD4 vacuum circuit breaker and VRC vacuum circuit breaker by ABB. It meets specification of GB3906-91, IEC298 standard and having 5-protective functions and it features:
* Compatible with circuit breaker switch cubicle and F-C switch cubicle.
* Specially designed switchgear in order to reduce occupied area of substation.
* Matched excellent vacuum circuit breaker and contactor, soithasmiddle mounted switchgear function.
* Adopting international fashioned combination structures, completely metal-clad, so it satisfies complete separated.
* Aluminum zinc coated steel plate enclosure is not necessary to do any surface treatment to meet requirements of anti-corrosion.
* Satisfying IEC298 and GB3906-91 standards, it is an ideal product, which could be instead of imported products.
Technical Data:
| Rated Voltage (kV) | 3,6,7,2,12 |
| Rated 1min power frequency withstand voltage | 16 20 42 |
| Horizontal Lightening impulse withstand voltage | 40 60 75 |
| Rated Frequency | 50 |
| Main Busbar Rated Current | 630, 1250, 1600, 2000, 2500, 3150 |
| Rated peak withstand current (peak value) (kA) | 16 31.5 40 50 63 80 | 100 125 |
| 4s Rated short-time withstand current (r.m.s.) (kA/s) | 6.3 12.5 16 20 25 31.5 | 40 50 |
| Degree of protection | IP4X |
| Gross Weight (including packing ) kg | 700 | 800 |
| Net Weight (including packing ) kg | 600 | 700 |
| Dimensions (Width×Depth×Height) mm | 800×2100×2400 | 1000×2100×2400 |
| Packing dimensions (Width×Depth×Height) mm | 1300×2160×2600 | 1500×2160×2600 |
