Metal Consumer Unit Distribution Box

Name: Metal Consumer Unit Distribution Box
Brand: all-electronics-online.com
SKU: 821323915
Availability: InStock
Rating: 4.3 (107 reviews)

Price:	US $ 1.9/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HMCU
Color:	Ral7035 or Ral7032
Structure:	Protection
Type:	Distribution Box
Certification:	TUV, SGS, IP68, IP66
Size:	From 200X200X150mm to 1400X1200X300mm
Application Range:	Electrical
Shell Protection Grade:	IP66
Brand:	OEM

Product Description

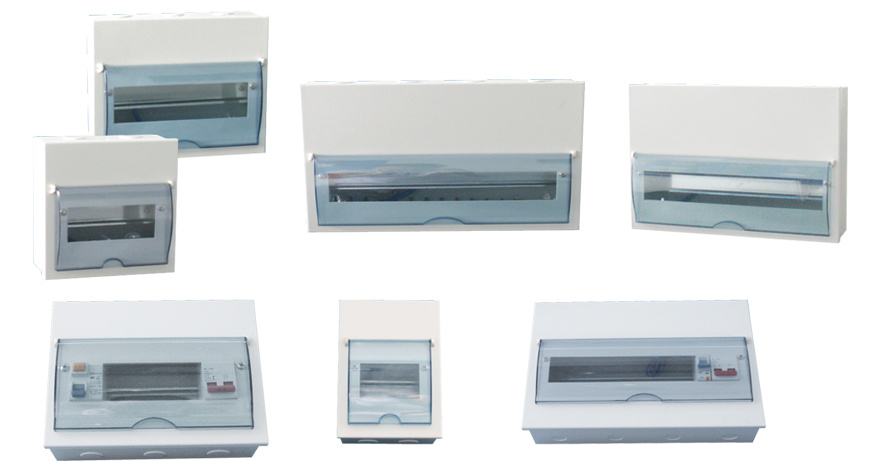

HMCU Series of Metal Consumer Unit
Application
1.0mm sheet cold rolled steel both on body and base
Textrued surface finish by powder coated
With transparent cover made by PC material
With terminal link and rail fixed inside the box
With flexible wires or supplied for earth connecting
Fitted with lsolater Main Switch or RCCB and MCBs.

Specifications

MODEL	SPECIFICATIONS	DESCRIPTION
HMCU-4	4WAY	Main Switch or RCCB and 2 outgoing ways
HMCU-6	6WAY	Main Switch or RCCB and 4 outgoing ways
HMCU-8	8WAY	Main Switch or RCCB and 6 outgoing ways
HMCU-10	10WAY	Main Switch or RCCB and 8 outgoing ways
HMCU-14	14WAY	Main Switch or RCCB and 12 outgoing ways
HMCU-18	18WAY	Main Switch or RCCB and 16 outgoing ways
HMCU-21	21WAY	Main Switch or RCCB and outgoing ways

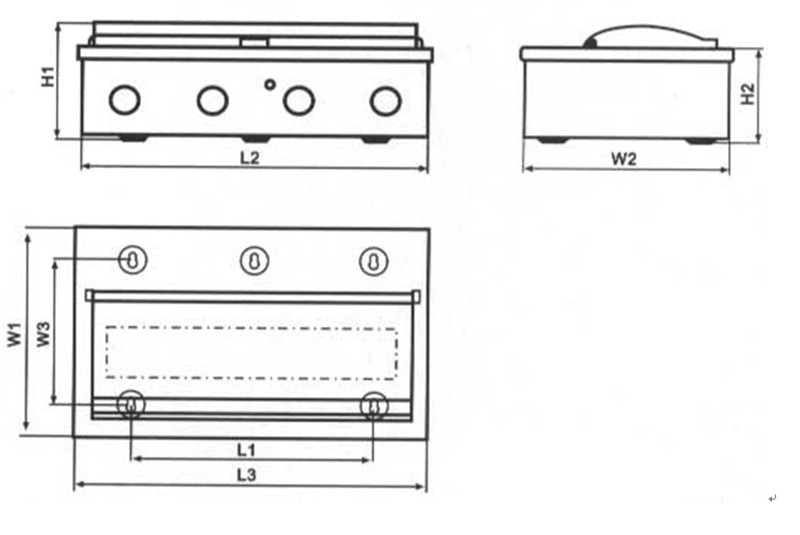

Dimensions(mm)

MODEL	L1	L2	L3	W1	W2	W3	H1	H2
HMCU-4	127	120	76	185	178	128	101	80
HMCU-6	163	156	100	185	178	128	101	80
HMCU-8	199	192	140	185	178	128	101	80
HMCU-10	235	228	175	185	178	128	101	80
HMCU-14	307	300	250	185	178	128	101	80
HMCU-18				185	178	128	101	80
HMCU-21				185	178	128	101	80

Other sizes available on request .Cut-outs and pre-drilled holes according to your specifications.
