Metal Control Desk/IP65 Electric Work Desk

Name: Metal Control Desk/IP65 Electric Work Desk
Brand: all-electronics-online.com
SKU: 829916155
Availability: InStock
Rating: 4.4 (40 reviews)

Price:	US $ 150/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Thickness:	1.5/1.5/2.0
Material:	Cold Steel
Color:	Ral7035 or Ral7032
M.P:	Ral2004 or Galvanized Steel
Customized:	Yes
Type:	Power
Structure:	Protection
Certification:	Ce
Size:	Tcd41
Shell Protection Grade:	IP65
Brand:	Yqbox

Product Description

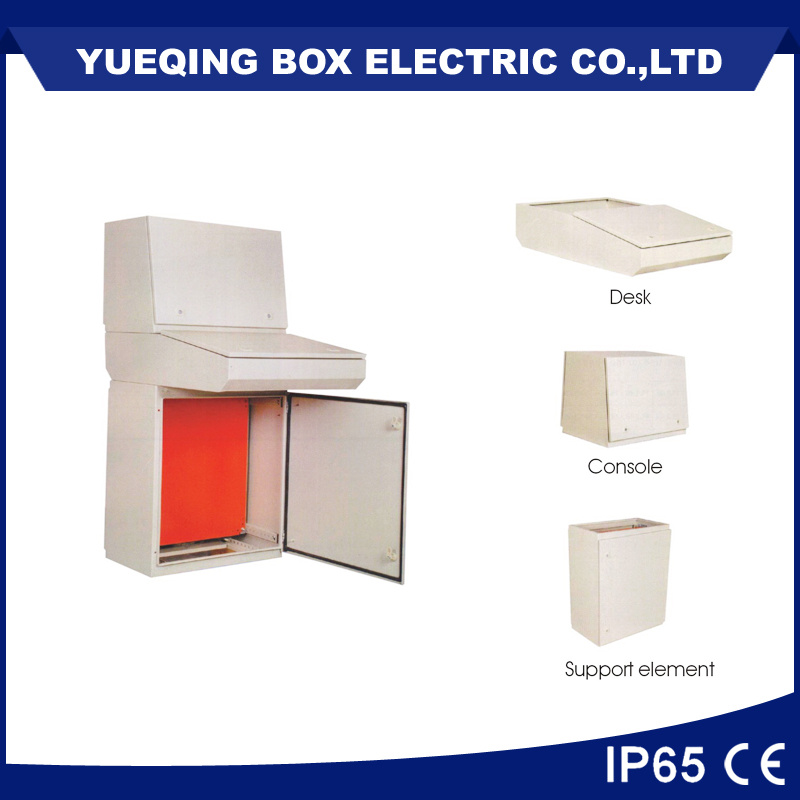

IP65 CONTROL DESK

control desk consists of three parts : console ,desk and support element with mounting plate
Degree of protection: IP55

Standard configuration:
It consists of three parts : console ,desk and support element with mounting plate

Degree of protection: IP55 to E N60529

Surface treatment:
Textrured epoxy polyester powder coating

Material and color:
Body and front door: Cold roll steel to paint in RAL7032
Mounting plate : Galvanized steel or plain steel to paint in RAL2004 smooth finish

Model	Console			Desk				Support element
Model	A	B	C	D	E	F	G	H	I	J	K
TCD41	600	770	400	200	835	120	425	370	295	460	425
TCD42	800	770	400	200	835	120	425	370	295	460	425
TCD43	1000	770	400	200	835	120	425	370	295	460	425
TCD44	1200	770	400	200	835	120	425	370	295	460	425
TCD45	1600	770	400	200	835	120	425	370	295	460	425
TCD51	600	770	500	200	935	120	425	440	365	460	425
TCD52	800	770	500	200	935	120	425	440	365	460	425
TCD53	1000	770	500	200	935	120	425	440	365	460	425
TCD54	1200	770	500	200	935	120	425	440	365	460	425
TCD55	1600	770	500	200	935	120	425	440	365	460	425
										unit: mm

Yueqing Box Electric Co., Ltd is established in 2000, situated on a modern industrial park in Yueqing Zhejiang. Our's company away from the qiligang wenzhou port only 500meter.

Our company mainly manufacture wall mounting enclosure, stainless steel enclosure, junction box, telephone box, control desk, floor standing cabinet and so on.

Non-standard products can be dsigned and custom to meet users' special requirements.

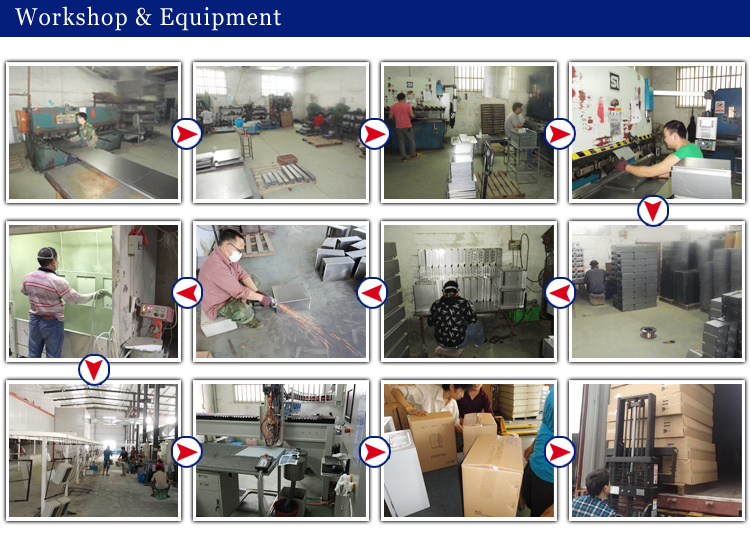

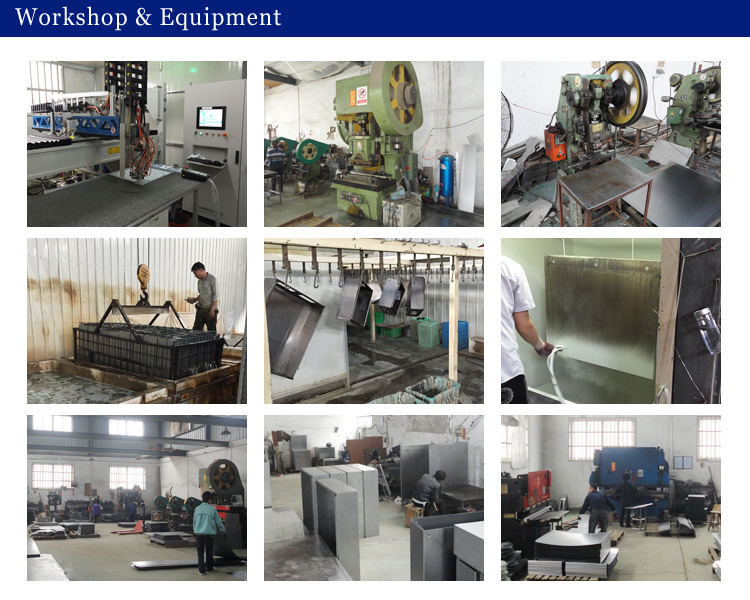

The company currently production area of 2, 000m2 and 30 employee. With the most efficient state-of-the art production machinery, and supported by a highly qualified work force and experienced engineers that ensure the highest quality enter into international markets.

Through the past 10 years efforts, we have estbilished a strong and loyal mutually beneficial partnership with customers from Europe, south east Asia, Middle East, south amercia, and Africa.

Just tell us your requirements, we will brng the best to your business!
