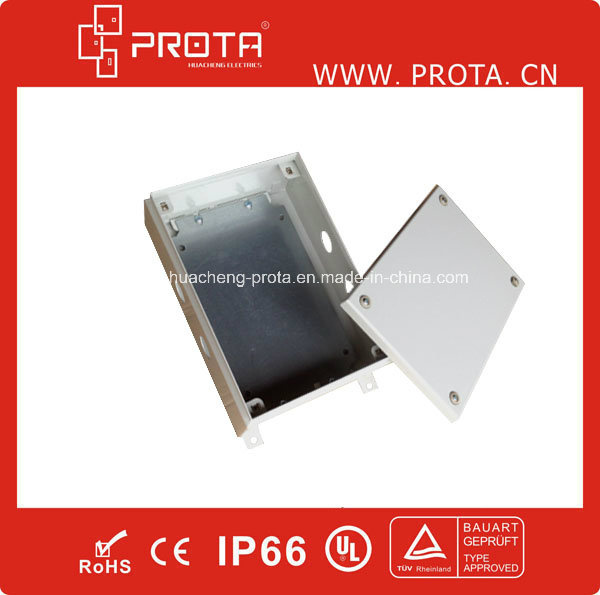

Metal Distribution Box

Name: Metal Distribution Box
Brand: all-electronics-online.com
SKU: 770746415
Availability: InStock
Rating: 4.9 (58 reviews)

Price:	US $ 8-40/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Cold-Rolled Sheet Steel
Surface Finish:	Cold-Rolled Sheet Steel
Color:	Ral 7032/Ral 7035/Customize
Thickness:	1.2mm&1.5mm
Type:	Distribution Metering Box
Structure:	Protection
Certification:	ISO9001:2008,RoHS
Application Range:	Electrical Distribution
Shell Protection Grade:	IP66
Brand:	Prota

Product Description

Material:1.2mm cold rolled sheet steel

Surface: epoxy thermosetting powder coating,textured finish

Color:RAL7032 & RAL7035

Protection degree:IP66

Thickness:

Body:1.2mm&1.5mm

Door:1.2mm&1.5mm

Mounting Plate:1.5mm&2.0mm

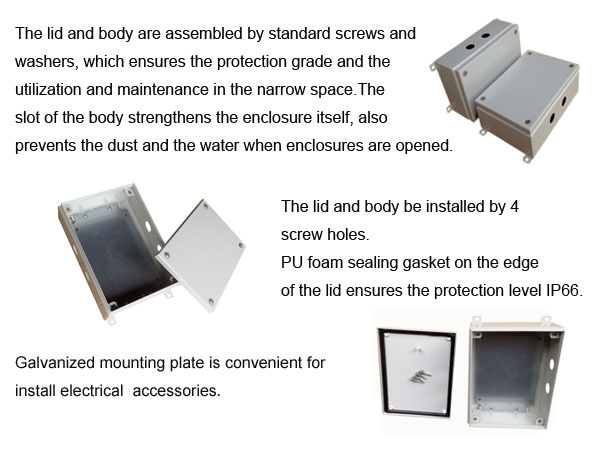

Craftmanship

Selection Table

Model No.	H mm	W mm	D mm
PL15158	150	150	80
PL151512	150	150	120
PL20158	200	150	80
PL201512	200	150	120
PL20208	200	200	80
PL202012	200	200	120
PL30158	300	150	80
PL301512	300	150	120
PL30208	300	200	80
PL302012	300	200	120
PL303012	300	300	120
PL401512	400	150	120
PL40208	400	200	80
PL402012	400	200	120
PL403012	400	300	120
PL404012	400	400	120
PL502012	500	200	120
PL503012	500	300	120
PL60208	600	200	80
PL602012	600	200	120
PL603012	600	300	120
PL604012	600	400	120

PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.

As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.

We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
