| Prod Model: |
MDPT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Finish: |
Epoxy Thermosetting Powder Coating |
| Material: |
Cold-Rolled Sheet Steel |
| Color: |
Ral 7032/Ral 7035/Customize |
| Thickness: |
1.2mm&1.5mm |
| Lock: |
Plastic Lock and Metal Lock |
| Type: |
Power |
| Structure: |
Protection |
| Certification: |
ISO9001:2008,RoHS |
| Application Range: |
Electric Industry |
| Shell Protection Grade: |
IP66 |
| Brand: |
Prota |
Product Description

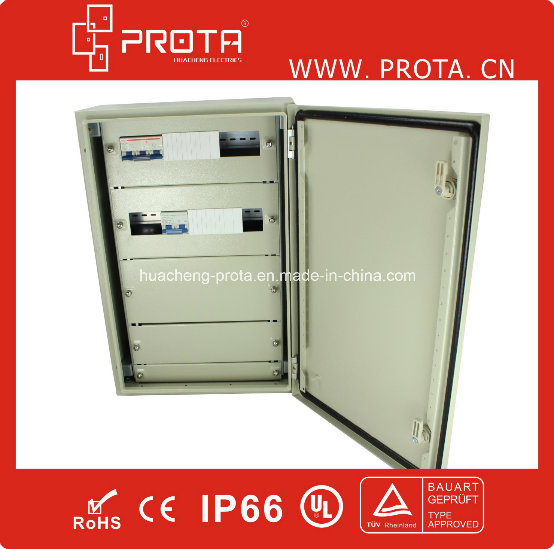

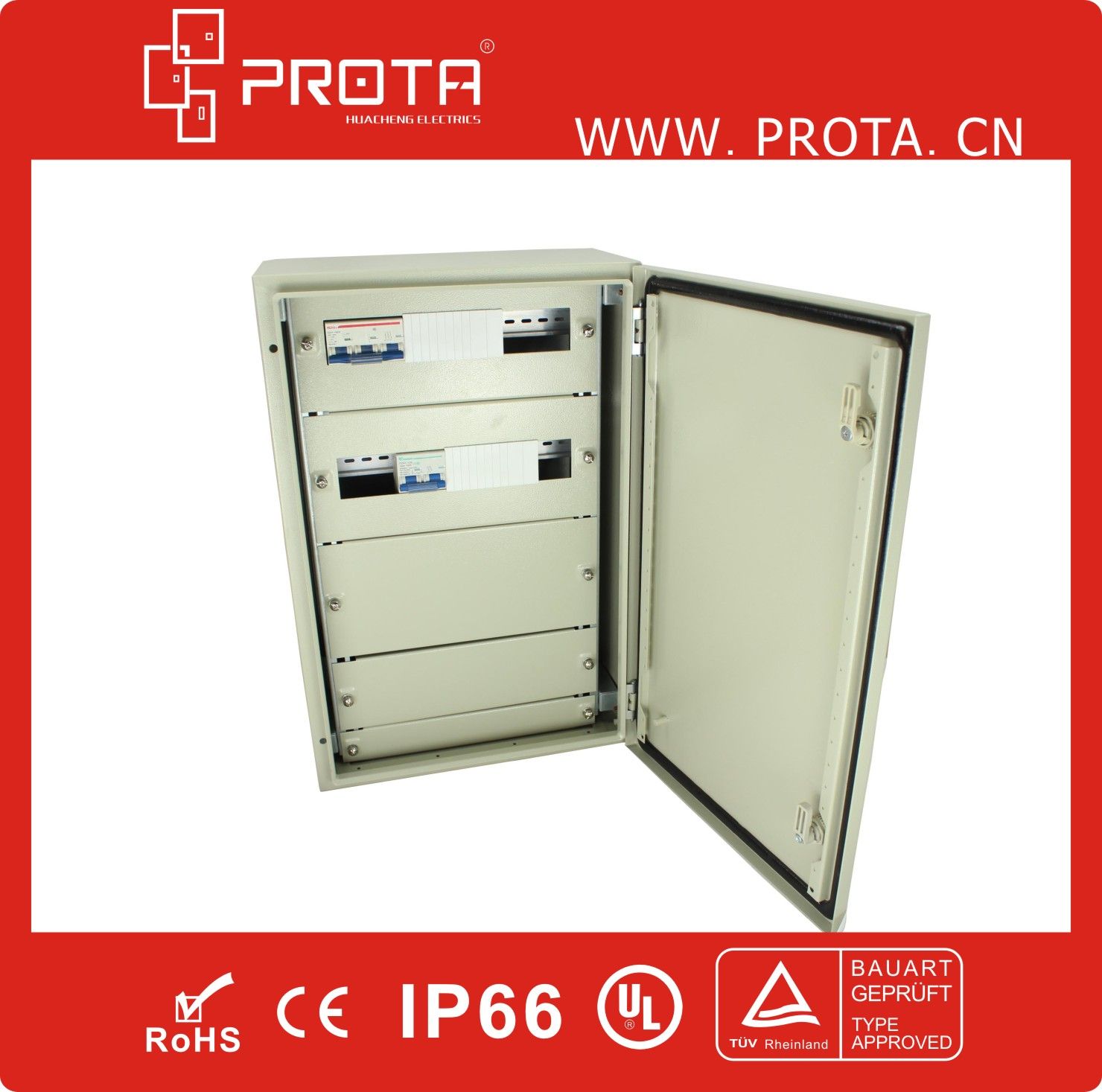

Metal Electric Box Wall Mount Enclosures with Module Kits
Standard Configuration
Surface: Epoxy thermosetting powder coating, textured finishProtection Degree: IP66
Standard configuration: Framework of enclosure with DIN rails
The front covers with fastenings accessories, and galvanized DIN rails
Craftsmanship Feature
MDPT DIN rail enclosure is specially designed as the switchbox, and for MCBs

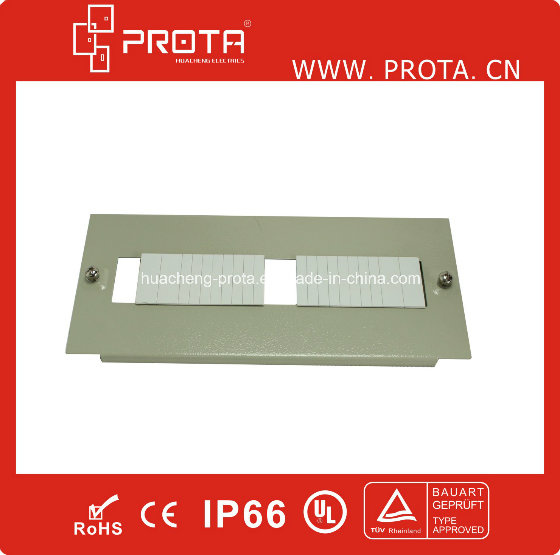

The size of the covers is 40mm-85mm. The standard 35mm size DIN rails can be adjusted by distance. The thickness is 1.2mm of the framework of the MDPT kits. And the front covers is 1.2 mm THK as well.
Selection Table| Model | Door (mm) | NO. of breaks | Break qty PCS |
| H | W |
| MDPT43 | 400 | 300 | 2row*10P | 20 |
| MDPT54 | 500 | 400 | 3row*15P | 45 |
| MDPT64 | 600 | 400 | 3row*15P | 45 |
| MDPT66 | 600 | 600 | 3row*26P | 78 |
| MDPT75 | 700 | 500 | 3row*21P | 63 |
| MDPT75-2 | 700 | 500 | 4row*21P | 84 |
| MDPT86 | 800 | 600 | 3row*26P | 78 |
| MDPT86-2 | 800 | 600 | 4row*26P | 104 |
| MDPT106 | 1000 | 600 | 6row*26P | 158 |
| MDPT108 | 1000 | 800 | 6row*38P | 228 |
Cut-outs and drilled holes to your specifications. Should you have any questions or problems, ple4se contact with us.
Packing and Shipping
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change

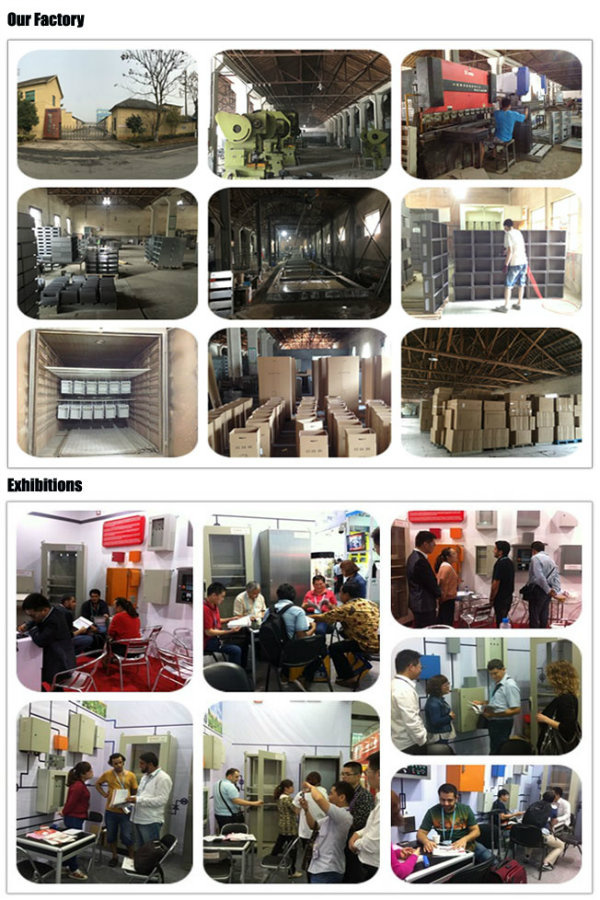

Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
