| Prod Model: |
A16-20SR-B |
| IP Lever: |
IP65 |
| Rating: |
3A 250V |
| Operation Type: |
Latching |
| The Fron Shape: |
Mushroom |
| Terminal Type: |
2.8X0.5mm |
| Contact Material: |
Silver Alloy |
| Electrical Life: |
50000 Cycles |
| Type: |
Normal Close |
| Usage: |
Reset Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
Daier |
| Contact Type: |
Normal Open or Normal Close |
| Structure: |
1no 1nc or 2no 2nc |
Product Description

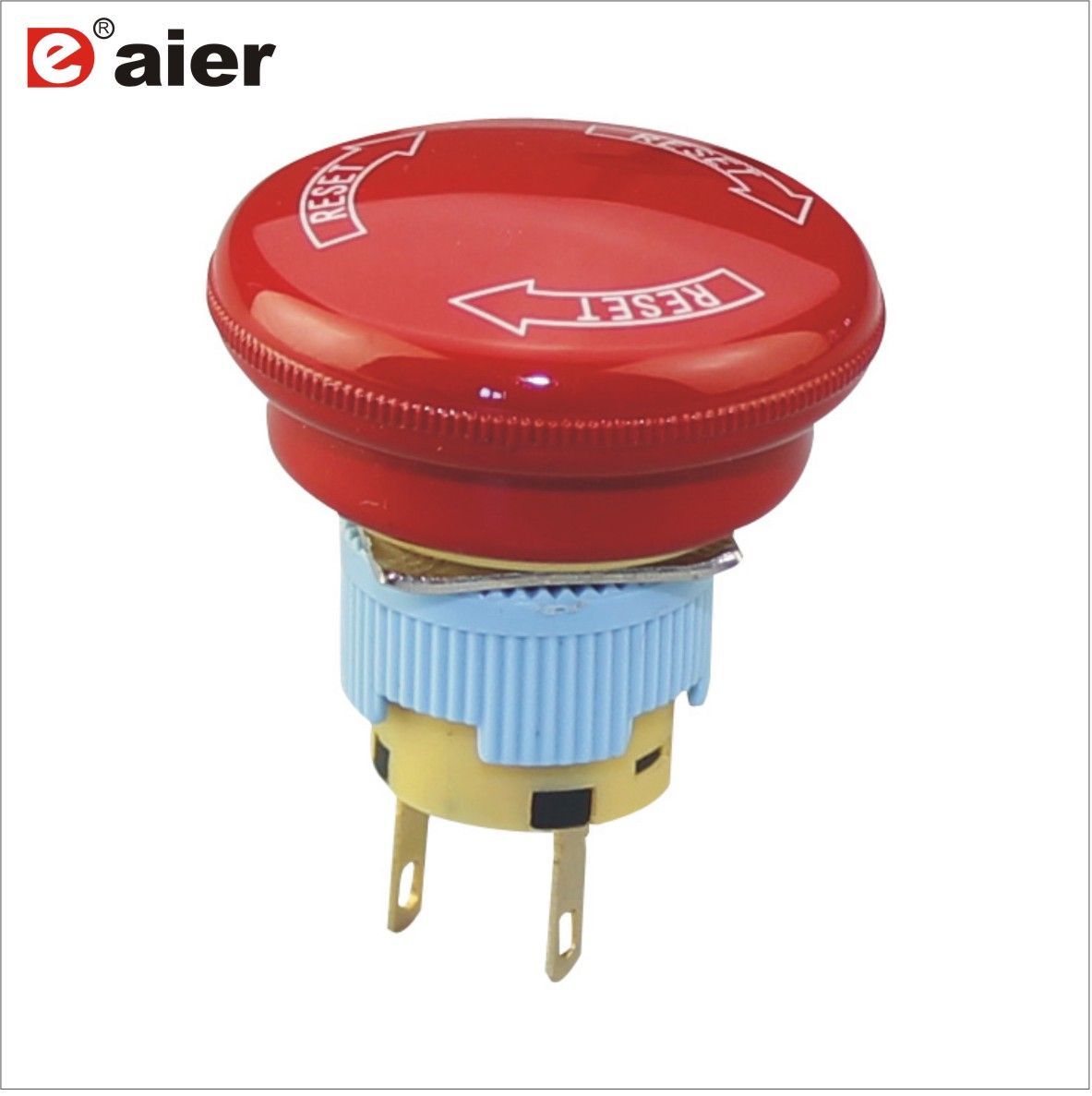

Metal Emergency Stop Pushbutton Switch For Electric Machine--Metal Emergency Stop Pushbutton Switch For Electric Machine. They are widely used in household appliances, mall, hotel appliances, electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instrument, etc.· PRODUCTION DESCRIPTION | Usage | Extensive Use |
| Type | Push Button |
| Function | A16-20SR-B | Push Start,Rotary OFF. |
| Size | 16mm |
| Rated Voltage | 250VAC |
| Rated Current | 3A |
| The Front Shape | Mushroom |
| Protection Level | IP65 |
| Contact Type | 1NO 1NC or 2NO 2NC |
| Contact Material | Silver Alloy |
| Certificate | CE,Rohs |
| Terminal Style | 2.8x0.5mm |
· SPECIFICATION | Operating Temperature | -20°C ~+55°C |
| Operating Humidity | 45%~85% RH |
| Contact Resistance | 50mΩ max. |
| Insulation Resistance | 100MΩ min. (500V DC megger ) |
| Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
| Degree of Protection | IP65 |
| Operating pressure | 3-6N |
| Electrical Life | 50,000 operations min. (at full rated load) |
| Mechanical Life |
Maintained:1,000,000 operations min.
Momentary:1,000,000 operations min. |
Dielectrical Life |
Switch Unit: 2,000VAC,1 minute between terminals of same pole;
1,000VAC,1minute between contact and lamp terminals.
Illumination Unit:2,000VAC,1min. Between live part/ground |
Soldering Temperature | 20W/5 seconds or 230 °C/3 seconds |
If you want find this various of Push Button Switch, you can enter our homepage to check and confirm. Of course, if you have any other questions that you could not know clearly, you can contact me by mail or skype .We will be very glad to answer your questions.

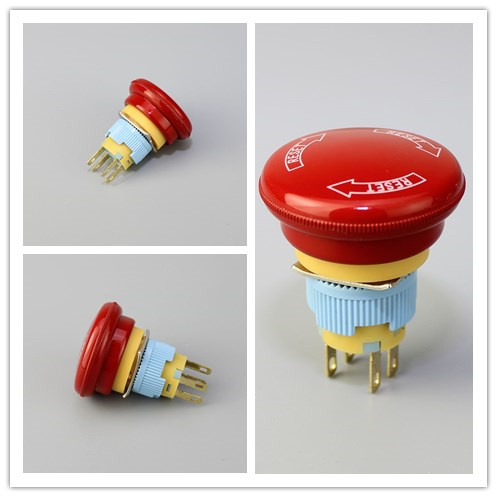

· PRODUCT SHOW
· SHIPPING & PAYMNET Shipping Detail: Ship worldwide by sea, by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST
Payment Detail: Paypal, T/T, Western union, MoneyGram, or other methods.
· ADVANTAGE| NO.1 | CE, TUV, CQC,CCC,ISO9001 Certificate |
| NO.2 | More than 10 years manafacture! |
| NO.3 | 80% of our products are exported to Europe, North and South America |
| NO.4 | High quality, competitive price, great service! |
| NO.5 | Strong technological cpacity, compete production testing equipment |
· COMPAY INFORMATIONDaier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing, China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of aluminum box, knob, footswitch, DC jack, potentiometer, rotary switch, push button switch and so on. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.

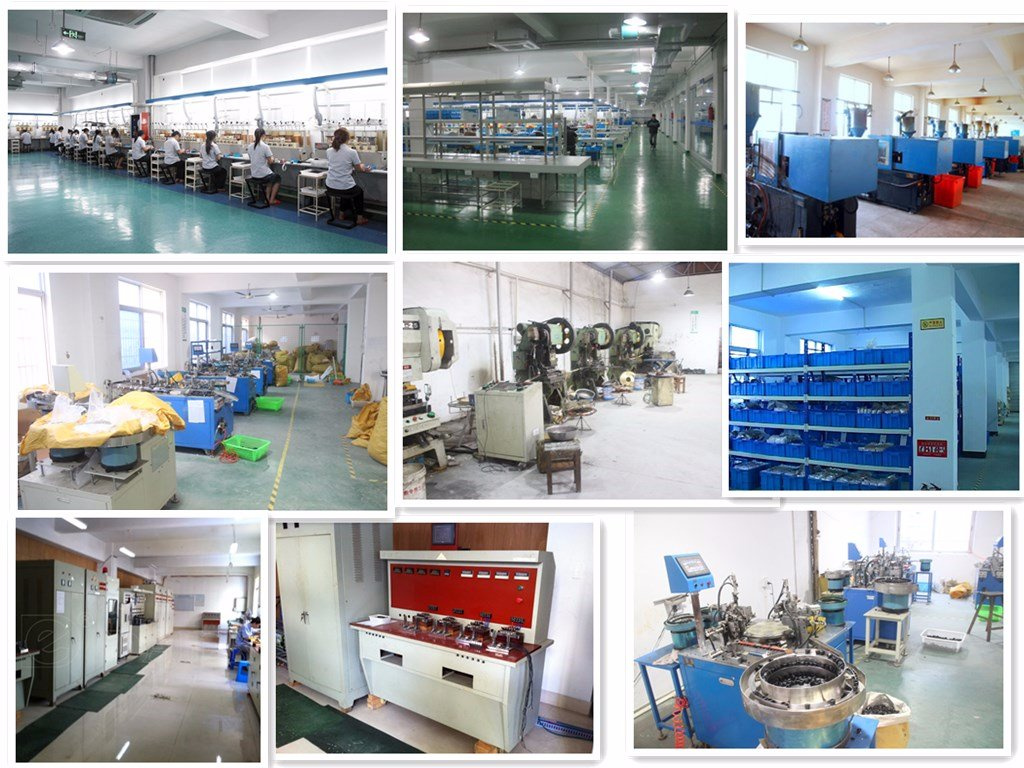

· OUR FACTORY

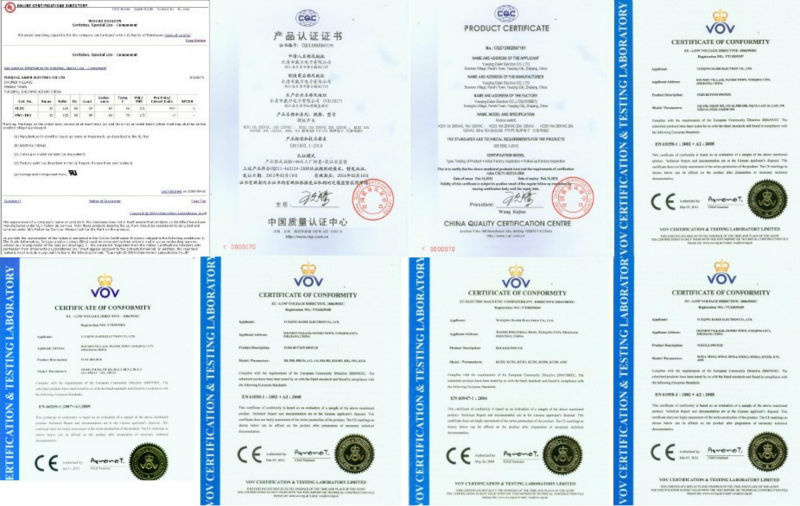

· CERTIFICATES

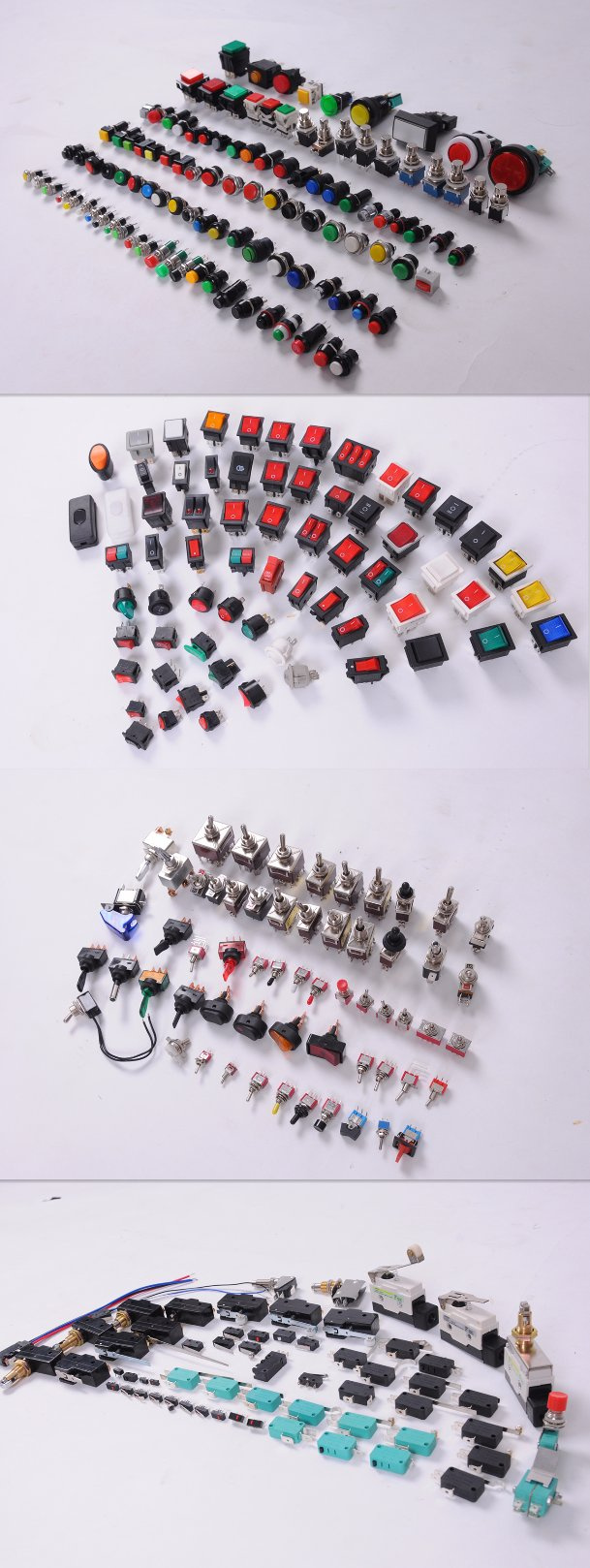

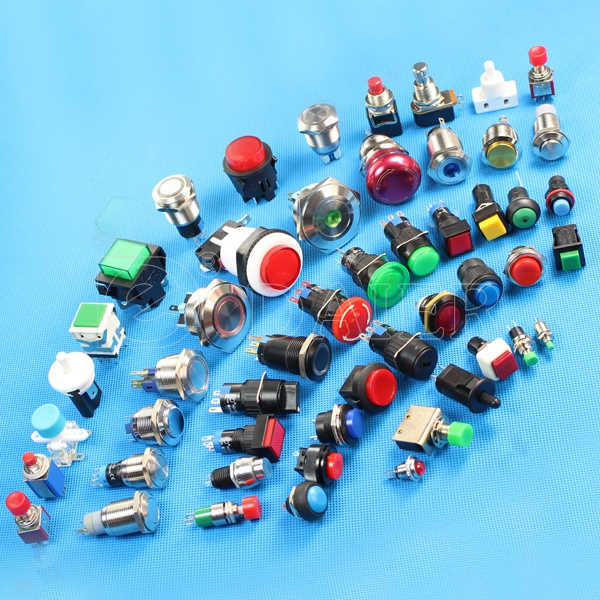

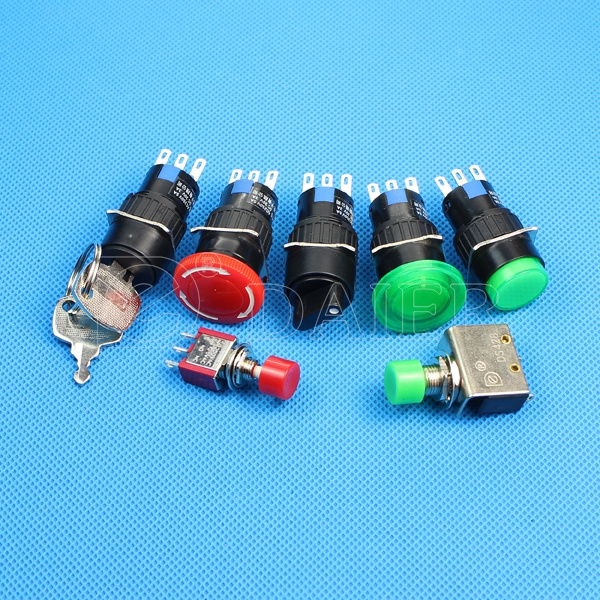

· ANOTHER PARTS
