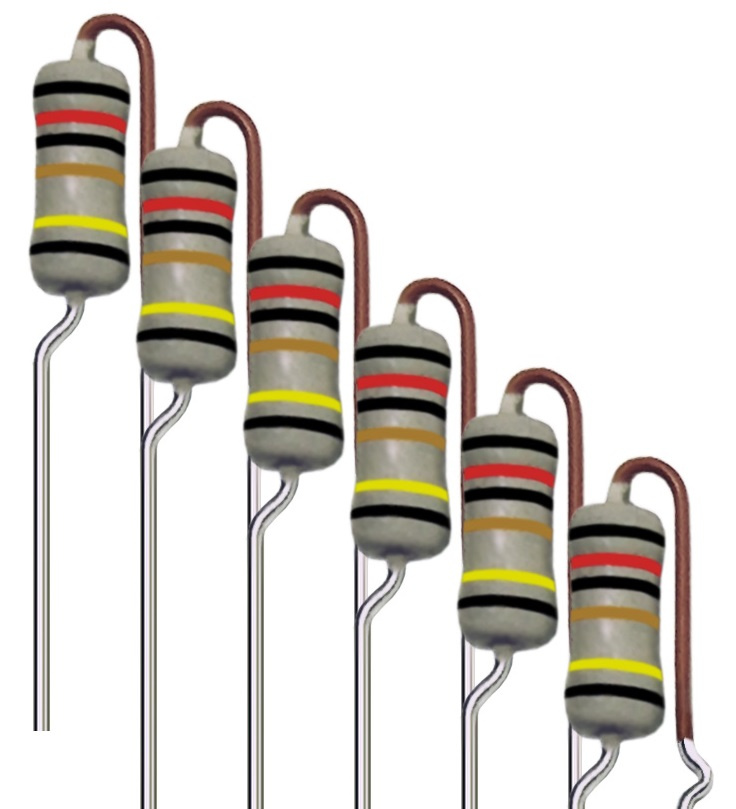

Metal Glaze Film High Voltage Resistors

Name: Metal Glaze Film High Voltage Resistors
Brand: all-electronics-online.com
SKU: 691437281
Availability: InStock
Rating: 4.5 (85 reviews)

Price:	US $ 0.1/Piece
Min Order:	10000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG series
Resistance:	Fixed Resistor
Function For Resistance:	Sampling Resistor
Installation:	DIP Resistor
Package Type:	Throught Hole
Material:	Metal Glaze Film Resistors
Type:	High Voltage Resistors
Brand:	Thunder

Product Description

RG series metal glaze film resistors are special designed for ultra-high working voltage or pulse or surge circumstance where reliability under ultra-high working voltage or pulse voltage or surge voltage is requested. The RG series metal glaze film resistors designed and made in our factory can be inductance-free below working frequency of 150M Hz to 200M Hz. It is a great development in non-inductance resistors in ultra high resistance up to 100M Ohm.
Our RG series resistors are the right cross to Vishay's VR25, VR37, VR68 series resistors, and Caddock's MG series resistors such as MG655, MG660, MG710, MG721, and PPR's HV1/4,HV1/2,HV1,HV2,HV3. They are also equivalent to HYMEG's HA series HA-55,HA-60,HA-65,HA-70 and TEPRO's TVH series TVH.25,TVH.5,TVH.75. They are the also the good replacement for IRC's CGH series CGH-1/4, CGH-1/2, CGH1, RG07, RG20. and OHMITE's MOX seires MOX200,MOX300 as well as EBG's RSX1/10 and OGP13.
Our RG74 series had been approved by RHEINLAND and got the TÜV certificate in 2009.

Thunder Precision Resistor Co., Ltd. is a 25 years experienced professional manufacturer of high precision resistors and ultra-high precision resistors and varies special resistors as well as hgih precision resistor netwouds.

All production is strictly controlled and follows an extensive set of instructions established in production procedure for reproducibility which was introduced from Europe in 1988.

The quality of the products is always the first priority in Thunder Precision Resistors that is our company quality policy.

BSI issued ISO9000 Quality Management Certificate to Thunder Precision Resistors in 1998 and upgraded it in June 2016 to ISO9001: 2015.

We are going to get the certificate of IATF16949: 2016 by the end of the year that is automotive sector quality management systems updated from TS16949-2009 in Oct., 2018
