| Prod Model: |
DW1290 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Drive Type: |
Stepper Drive |
| Certification: |
CE, FDA,SGS |
| Control: |
CNC |
| Current: |
AC |
| Condition: |
New |
| Usage: |
Metal and Nonmetal Engraving |
| Power: |
CO2 Laser Power for Choice, Diode 50W/75W |
| Laser Type: |
CO2 & Diode |
Product Description

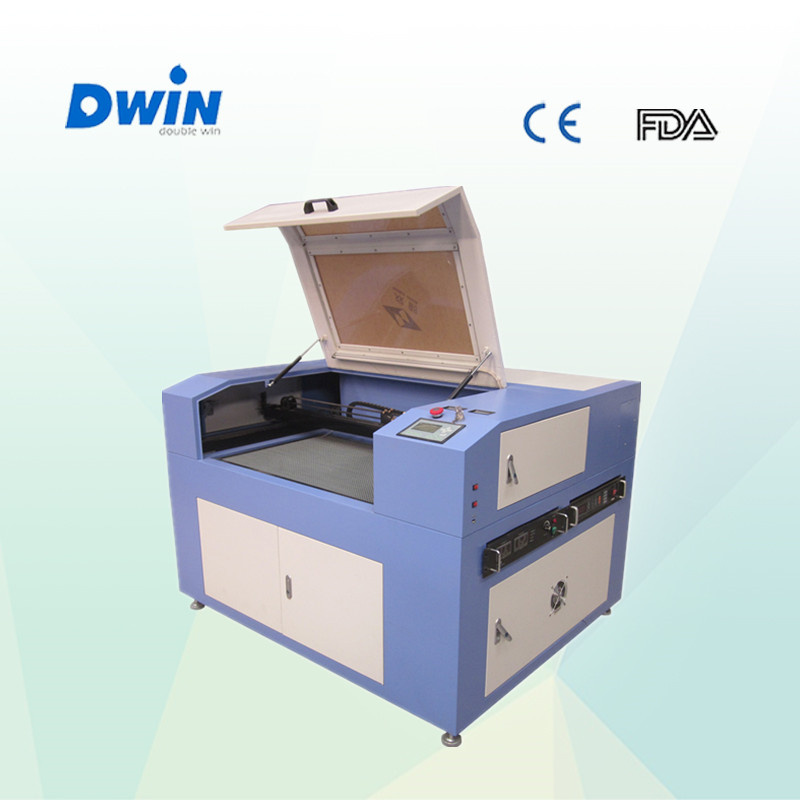

DW1290 Metal Laser Engraving Machine CO2 & DiodeProducts Overview:
DW1290 Metal laser engraving machine is the newest design with CO2 laser tube and Diode Side pump,can engraving and cutting all the nonmetal materials,also can marking the metal materials,with high precision and fast speed.
This machine can marking on the metal materials and also can engraving on the nonmetal meterials. It also can cut the nonmetal materials such as acrylic ,leather ,MDF.garment .The imported linear guide rail and step motor with reduce speed driver system to assure cutting incision more smooth The imported focus lens and metal reflect mirror from America have strong cutting ability and high precision
We can supply different color shapes for your need
Applicable materials:
Metal materials,such as stainless steel ,carbon steel,brass,etc.Non-metal materials such as double color
board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
Parameter
Model DW1290 Combined CO2 laser & Diode Laser Metal laser engraving machine |
For the CO2 laser engraver |
|
Model | DW1290 |
Working area : | 120cm*90cm (L*W) |
Laser power : | 80W/100W |
Laser type : | CO2 sealed laser tube,water-cooled |
Engraving speed | 0-60000mm/min |
Cutting speed : | 0-10000mm/min |
Min. shaping character : | Letter 1 x 1mm |
Graphic format supported: | BMP, PLT, DST, DXF, AI,CDR |
Software supported : | Lasercut5.3 ,CorelDraw, PhotoShop, AutoCAD |
Laser Output Control: | 1-100% software setting |
Highest Scanning Precision: | 2500DPI |
Resolution ratio : | <0.01mm |
Location precision: | <0.01mm |
Working temperature: | 5°C-40°C |
Operating humidity: | 5%-95%(without condensed water) |
Optional parts : | Up-down worktable, Red light pointer, Auto focus, Rotary device |
For the Diode pumped laser marker |
|
Laser output power | 50W/75W |
Laser wavelength | 1064nm |
Beam quality | M2 <3 (@ 25A) |
Marking depth | 0.01~0.2mm |
Marking speed | 60000mm/min |
Repeated accuracy | ±0.01mm |
Minimum character | 0.1mm |
Minimum line width | 0.015mm |
Guarantee & After sales service:
1. 18 months quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time
2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.
3. Free training course at our plant
4. We will provide the machine consuming parts with factory price when you need replacement.
5. 24 hours online service each day, free technical support.
2.Nonmetal Engraving & Cutting
3.Company profile
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine, CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications. Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over Europe, America, the Middle East and Southeast Asia.
Dwin mainly produces laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.
Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making. Dwin CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products.
Dwin constantly pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous instruction and support from our clients.
