| Prod Model: |
PEDB-400A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Usage: |
Metal |
| Laser Type: |
Diode |
| Control: |
CNC |
| Current: |
AC |
Product Description

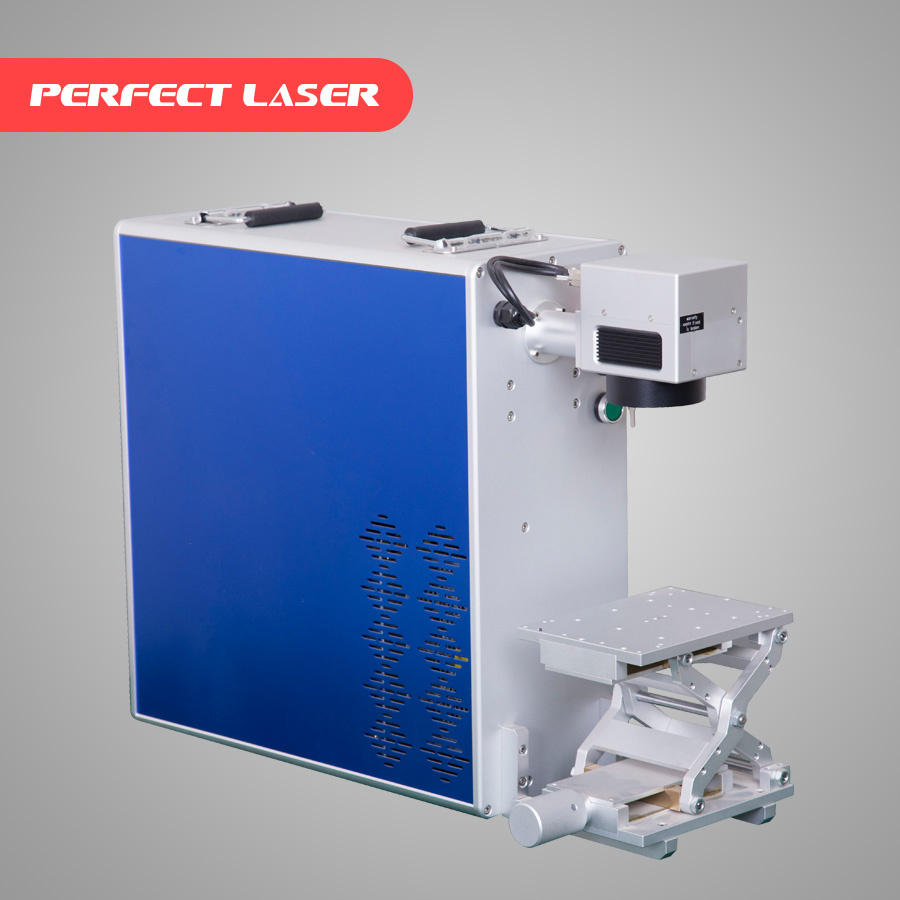

Metal Laser Marking Engraving Machine for ear tag marking
1. Perfect Laser's specialized design for making on computer keyboards and laptop keyboard.
2. Adopt with a large working area and movable working table, the machine can make accurate positioning and marking on big computer keyboard.
3. Adopt with up & down adjustable working platform, the machine can be applied to mark on keyboards with different heights easily.
4. Adopt elaborate diode side-pump laser beam mode, the marking speed is fast and have very high precision.
The machine adopts high quality core optical components, and high optical conversion efficiency, so it has stable performance and long life time.
5. The software has strong function and multifunctional, with friendly interface, easy to operate, can achieve different marking parameters setting and application.
6. Taken whole block-out optical system, the machine has functions of preview for optical path and focus indication, also with luxury and practical appearance.
7. No consumables, free of maintenance, low operation cost.
Do you need help understanding or using the system?
Do you have problems manufacturing your product?
Feel free to tell us your ideas, needs, suggestions, complaints, questions or anything at all you want to talk to us about.
We are only too happy to help in any way we can.
| Laser output power | 50W/75W/100W |
| Laser wavelength | 1064nm |
| Standard marking scope | 110 mm *110mm |
| Selective Marking scope | 70mm*70mm/175 mm*175mm |
| Beam quality M2 | < 3 (@ 25A) |
| Marking depth | 0.01~0.2mm |
| Marking speed | 7000mm/s |
| Repeated accuracy | ± 0.01mm |
| Minimum character | 0.1mm |
| Minimum line width | 0.015mm |
| Electric power requirement | 380V/50-60Hz or 220V/50-60Hz |
| Machine power | 3KW |
| Dimensions (L*W*H) | Mainframe | 240mm*1280mm*1200mm |
| Control Cabinet | 590mm*560mm*800mm |
| Water Cooling Machine | 540mm*700mm*900mm |
