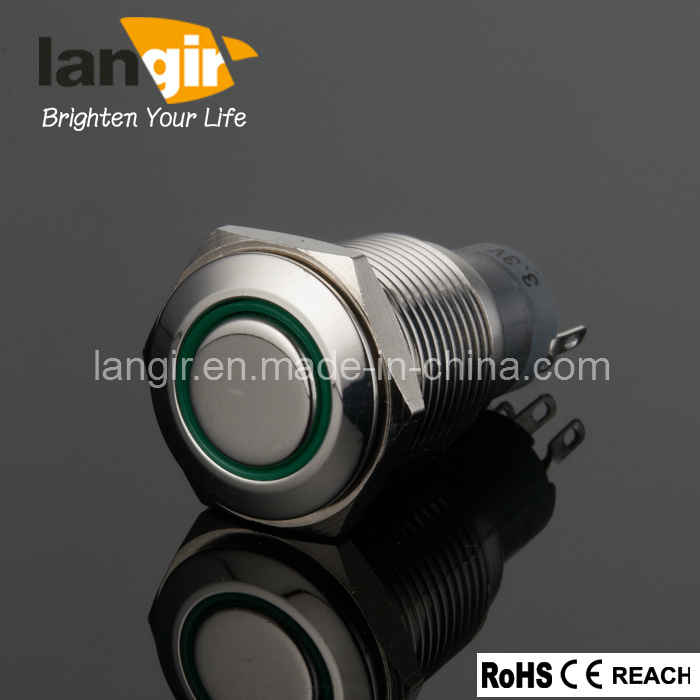

Metal LED Push Button Switch with Ring Illumination (L16-F/M1/N)

Metal LED Push Button Switch with Ring Illumination (L16-F/M1/N)
Price: US $ 2.70/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 40/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: L16-F/M1/N
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Stainelss Steel,Nickel Plated Brass
Function: Momentary / Latching
LED Color: Red, Green, Blue, White, Yellow, Orange
Size: 16mm
Illuminated: Ring Illuminated
Usage: Reset Button
Kind: Single-pole on-off Switch
Type: Momentary 1no1nc

Product Description

metal led push button switch
Dia.16mm Panel Cutout
Latching action available
available with LED illumination & engraving




ModelL16-F/ L16s-F L16-F/RL16-F/D
Illuminated TypeNon-illuminatedRoundDot
Terminal TypePin (1.8x0.4mm)
Max. Switch Rating3A/250V AC
Contact Resistance≤50mΩ
Insulation  Resistance≥1000mΩ
Dielectric Strength2000VAC
Operation Temp.-20°c ~ +55°c
Mechanical Life2, 000, 000cycles
Electrical Life50, 000cycles
Contact MaterialSilver Alloy
Torque5~14Nm
Operation Pressure3~5N
IP DegreeIP40,IP65 / IK09
Material
ButtonStainless Steel / *  Anodized Aluminum
BodyStainless Steel / Nickel Plated Brass / *  Anodized Aluminum
BasePBT
LED Spec .
TypeLED
Rated Voltage6V/12V/24V/36V/110V/230V
ColorRED, GREEN, YELLOW, ORANGE, BLUE, WHITE
LifeApprox, 40, 000hours
RoHS,REACH Available

Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
