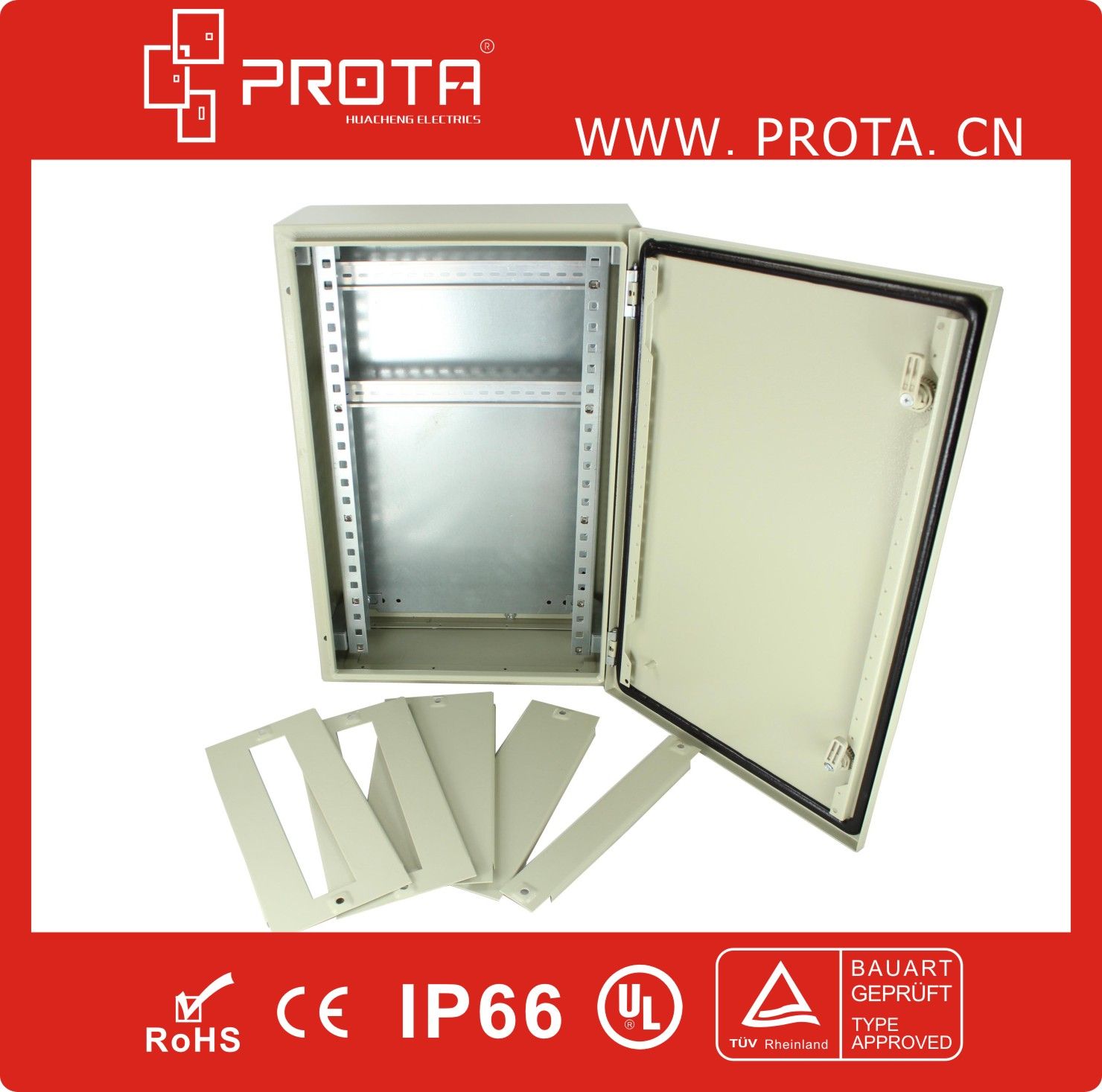

Metal MCB Box with DIN Rails

Name: Metal MCB Box with DIN Rails
Brand: all-electronics-online.com
SKU: 767454275
Availability: InStock
Rating: 4.5 (143 reviews)

Price:	US $ 10-40/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MDPT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Finish:	Epoxy Thermosetting Powder Coating
Whether The OEM:	Yes
Lock:	Avaliable on Request
Type:	Power
Structure:	Protection
Certification:	ISO9001:2008,RoHS
Size:	400(H)X300(W)mm to 1000(H)X800(W)mm
Application Range:	Electric
Shell Protection Grade:	IP66
Brand:	Prota

Product Description

Standard Configuration
Surface: Epoxy thermosetting powder coating, textured finish
Protection Degree: the DIN RAIL IP20
Standard configuration: Framework of enclosure with DIN rails
The front covers with fastenings accessories, and galvanized DIN rails

Craftsmanship feature

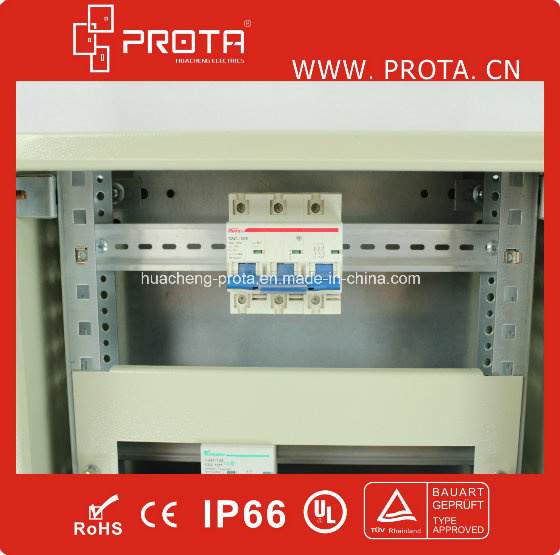

MDPT DIN rail enclosure is specially designed as the switchbox, and for MCBs

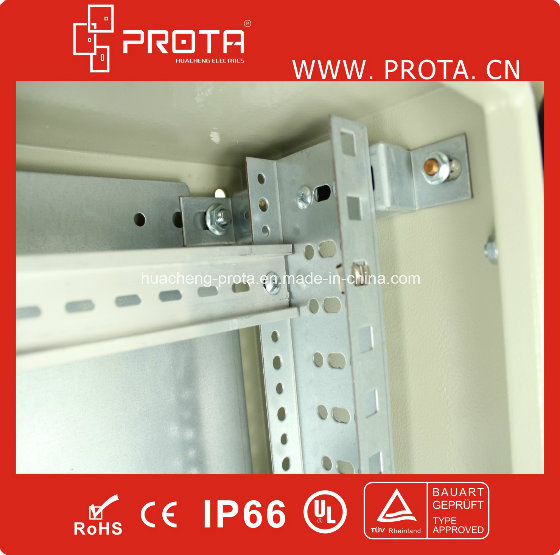

The size of the covers is 40mm-85mm. The standard 35mm size DIN rails can be adjusted by distance. The thickness is 1.2mm of the framework of the MDPT kits. And the front covers is 1.2 mm THK as well.

Selection Table

Model	Door (mm)		NO. of breaks	Break qty PCS
Model	H	W	NO. of breaks	Break qty PCS
MDPT43	400	300	2row*10P	20
MDPT54	500	400	3row*15P	45
MDPT64	600	400	3row*15P	45
MDPT66	600	600	3row*26P	78
MDPT75	700	500	3row*21P	63
MDPT75-2	700	500	4row*21P	84
MDPT86	800	600	3row*26P	78
MDPT86-2	800	600	4row*26P	104
MDPT106	1000	600	6row*26P	158
MDPT108	1000	800	6row*38P	228

PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.

As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.

We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
