Metallized Polypropylene Film AC Capacitor Cbb62b Mkb

 Features and Applications

  1. This is specifically designed for applications in serial with the 100~240VAC main, i.e.:capacitive divider,

      for example,energy meter, LED driver etc.
  2. Metallized polypropylene structure
  3. Good self-healing properties,withstanding surge voltage stressing
  4. Long stability of capacitance
  5. Good properties in damp environment
  6. Excellent active and passive flame resistant abilities

Specifications

Reference Standard:      GB/T 14472 (IEC 60384-14)

Safety Approvals:           CQC   ENEC-VDE    UL-CUL

Class:                             X2

Climatic Category:          40/110/56/B

Operating Temperature Range:-40ºC~+110ºC

Rated Voltage:               310VAC

Capacitance Range:      0.001uf~4.7uf(available on request)

Capacitance Tolerance: ±10%(K),±20%(M)(Other tolerance available on request)

Voltage Proof:                   Between terminals, 1800(Vdc)(2s) Cr≤1.0uF

                                          Between terminals to case, 2050(Vac)(60s)

Endure impulse voltage:    2000V

Insulation Resistance:        ≥15 000MΩ, Cr≤0.33uf

                                           ≥5 000s   Cr>0.33uf     (20ºC,100V,1 min)

Dissipatin Factor:               ≤0.1% (1kHz,20ºC);  ≤0.2% (10kHz,20ºC)

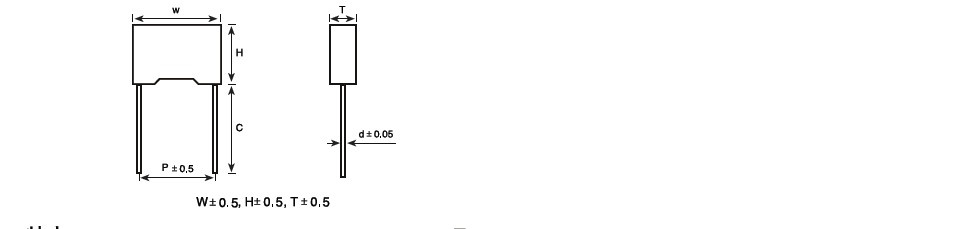

Outline Drawing

 Typical Circuit (0.47uF)

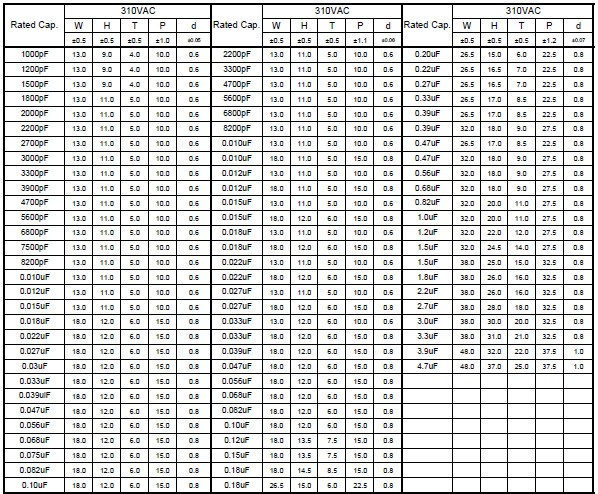

Dimensions(mm)
