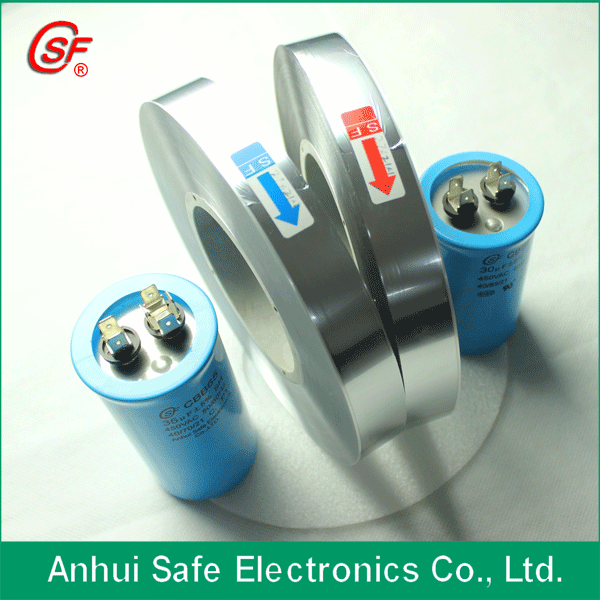

Metallized Polypropylene Film with Single-Sided Margin for Capacitor Using
| Price: |
US $ 5.8-12.6KG |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1KG |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
mpp |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Metallized: |
Alunimin |
| Thickness: |
4mic,5mic,6mic,7mic,8mic,9mic |
| Width: |
9mm-620mm |
| Film: |
Aluminum Film |
| Types Of Matallized Layer: |
Al/Zn Metallized Film, Al Metllized Film, |
| Density: |
0.905+/-0.005 g/cm3 |
| Margin Value: |
0.5mm 1mm 1.5mm 2mm 2.5mm |
| Type: |
Polypropylene Capacitor |
| Application: |
General Purpose |
| Capacitance: |
1-50uf |
| Package Type: |
Cartons |
| Structure: |
Film |
Product Description
Metallized film for capacitor useProducts:
1.Aluminum metallized polypropylene film.
2.Aluminum metallized polypropylene safety film.
3.Zinc-Aluminum alloy metallized polypropylene film with heavy edge.
4.Zinc-Aluminum alloy metallized polypropylene safety film with heavy edge.
5.Zinc-Aluminum alloy metallized polypropylene film with heavy edge and slope metallized film.
6.Aluminum metallized polyester film.
7.Zinc-Aluminum alloy metallized polyester film with heavy edge.
8.Zinc-Aluminum Alloy metallized polypropylene film with high ssquare resistance
9. According to customer requirement design to producing all kinds of metallized film for capacitor used.
Cores:
1.Material:Plastic.
2.Width:Film Slit Width±0.3mm.
3.Inner Diameter:75mm+1.0mm/-0.5mm.
Roll Outer Diameter:| Slit widths(W) | Recommend outer diameter(D) |
| 4.5mm≤W<10mm | 140mm≤D≤185mm |
| 10mm≤W<25mm | 150mm≤D≤185mm |
| 25mm≤W<50mm | 150mm≤D≤240mm |
| 50mm≤W | 150mm≤D≤350mm |
Specifications of metallized film:
1)Metallized polypropylene film
Properties |
Unit |
Requirements |
| Density | g/cm3 | 0.905±0.005 |
| Thickness | µm | 3.8~15 |
Tensile Strength | MD
(MPa) | ≥100 |
Elongation at Break | MD
(%) | 40~200 |
Heat Shrinkage | MD
(%) | ≤5(120°C,10min)
(120°C,10min) |
Break-dowm voltage | V/µm | ≥350(23°C,DC) |
Coating square resistance | | Al | 1.5±0.5 | 2.0±0.5 | 2.5±0.5 | 3±1 |
Zn/Al | (heavy-edge area):3±1
(non heavy-edge area):(6~7.5)±30% |
| With gradient square | (heavy-edge area):3±1
(non heavy-edge area):(2~20) |
Dissipation Factor | - | ≤4×10-4 (20ºC,1KHz) |
| RC | ΩF | ≥5×104 |
2.)Metallized polyester Film
Properties |
Unit |
Requirements |
| Density | g/cm3 | 1.34 |
| Thickness | µm | <5 | 5~12 | >12 |
Tensile Strength | MD
(MPa) | ≥84 | ≥108 | ≥120 |
Elongation at Break | MD
(%) | ≥22 | ≥33 | ≥44 |
Break-dowm voltage | V/µm | ≥200
(23°C,DC) | ≥250
(23°C,DC) |
Heat Shrinkage | MD
(%) | ≤3(120°C,10min) |
Coating square resistance | | Al | 1.5±0.5 | 2.0±0.5 | 2.5±0.5 | 3±1 |
Zn/Al | (heavy-edge area):3±1
(non heavy-edge area):(6~7.5)±30% |
Dissipation Factor | - | ≤60×10-4(20ºC,1KHz) |
| RC | ΩF | ≥1×104 |
| | | | | | | | | |
Note: Coating square resistance annotation is a typical value,can be customized.
Packing:
1.Roll films are packed in vacuum plastic bag and heat-sealed with desiccants.
2.Bags are marked with ables of types
3.The bags are packed in carton cases.
4.The cartons are wrapped in wooden cases or reinforced carton.
Storge:
1.Metallized film should be stored in its original package until its use with temperature 5~35º Cand humidity less than 85%RH.
2.Metallized layer is easily oxidized when exposure to moisture. Therefore, the film should be used as soon as possible when opened.
3.The recommended temperature is 15-25ºC with humidity less than 60%RH after the package is open.
4.With original sealed package,and stored in the above mentioned conditions, the storage time can be as following:
Al metalized Film:12 months from the delivered date..
Al/Zn Alloy metalized Film: As Zn is relatively unstable, preservation period(from delivery date) depends on the resistance of the film:
≤10Ω/:6 months
10~15Ω/:3months
>15Ω/:1months
Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.
Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.
The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.
With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.
Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.
"good faith, serving the whole world" is our principle.
