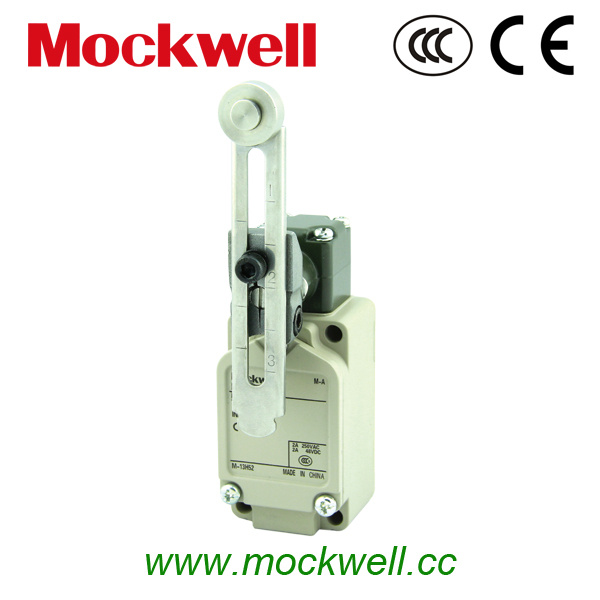

Mex-52s-45 Two-Circuit Metal Body Limit Switch

Prod Model:	MEX-52S-45
Electrical Life:	750000times
Pressing Type:	Lever Roller
Protection:	Dust-Proof
Size:	Normal Size
Environment:	﹤250℃
Breaking Capacity:	General Type
Breaking Form:	Single Type
Application:	Elevator
Brand:	Mockwell

Product Description

Two-circuit Limit Switch
A wide selection of models are available, including the overtravel models with greater OT, indicato-equipped models for checking operation, low-temperature models,heat-resistant models, and corrosion-proof models.
Microload models are added to the product lineup.

Ordering information:

Model	Actuators	can be replacement of
MEX-11S-45	Roller Lever 45°	WLCA2-2-45
MEX-11S-90	Roller Lever 90°	WLCA2-2-90
MEX-32S	Top Plunger	WLD
MEX-33S	Top Roller Plunger	WLD2
MEX-42S	Coil Spring	WLNJ
MEX-52S-45	Ajustable Roller Lever 45°	WLCA12-2-Q-45
MEX-52S-90	Ajustable Roller Lever 90°	WLCA12-2-Q-90
MEX-63S-45	Ajustable Rod Lever 45°	WLCL-45
MEX-63S-90	Ajustable Rod Lever 90°	WLCL-90

Technical parameter:

Ambient operating temperature	-25-80ºC
Ambient operating humidity	35-95%RH
Virbration resistance	0-55Hz,
Operating frequency	240times/minute max
Rated voltage	250V
Mechanical life	15,000,000times
Electrical Life	750,000times

Dongguan Mockwell industrial control Co., Ltd specialized in the research and develop, manufacturing of Proximity sensor, Photo sensor, Micro switch, Limit switch, Pushbutton switch, indicator, optical fiber, relays and counter, etc-Mockwell is one of the largest industrial control products with the most complete products ranges in China. Our products have found domestic market and oversea marke, including Europe, Asia, Middle East, Africa, Central and South America of more than 30 countries and regions.

Mockwell passed the ISO9001 Quality System Certification, and our products with China Compulsory Certification(CCC), and Europe CE Safety Certification approval. With more than ten years of development, we always supply the best quality products which our clients satisfy with.

Abiding to "Innovation, Professionalism, Internationzation", we provide the best products and service for our clients with strongest management group, strict production system, most united staff team, and a good after sale service.

Why choose us?
1.Reply inquiry in 24 hours.
2.Solved the problem during usage
3. Samples will be offered.
