| Prod Model: |
TLD12-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
151*50*95/100(Mm) |
| Weight: |
1.70kg |
| Rated Voltage: |
6V |
| Rated Capacity: |
12ah |
| Configuration: |
F1.37+/8- |
| Container Material: |
ABS |
| Color: |
Black/ White/ Grey |
| Terminal Type: |
T1\T2 |
| Internal Resistance: |
13.5m Ohm |
| Certifications: |
CE RoHS UL ISO |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
6V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

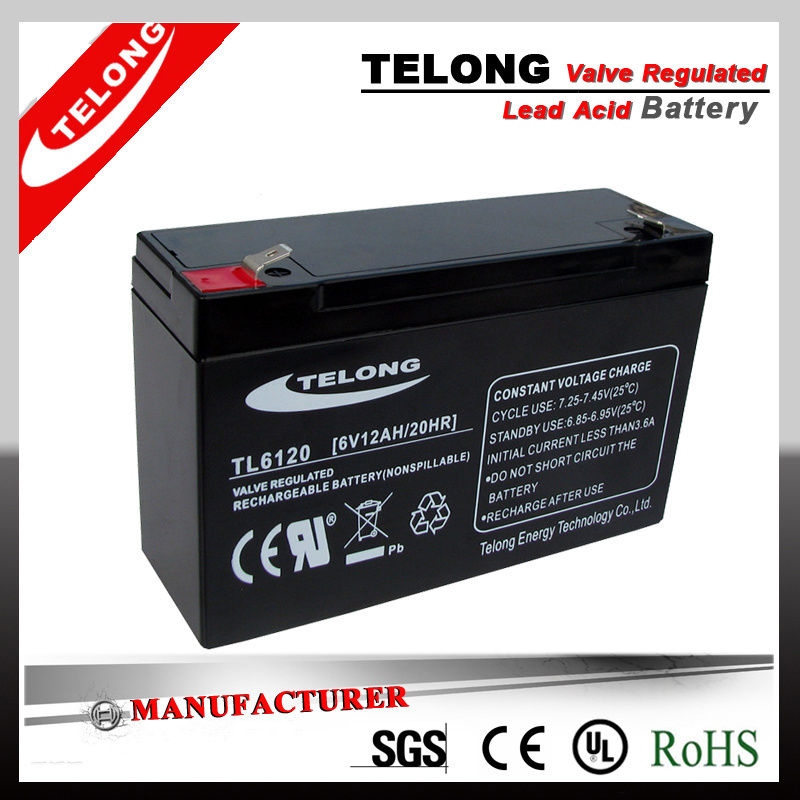

6V12AH Deep Cycle Maintenance Free Battery/AGM Battery for Security System Solar System UPS (CE ROHS UL ISO)
Item NO.: TLD12-6
Product Description
1. Specifications
Nominal Voltage: 6V Rated Capacity: 12AH
Dimension: 151*50*95/100(Mm)
Weight: 1.70Kg
Configuration: F1.37+/8-
Container Material: ABS
Color: Black/ White/ Grey
Terminal Type: T1\T2
Internal Resistance: 13.5m Ohm
Certifications: CE RoHS UL ISO
2. General Features
- Maintenance-free lead acid battery
- Small internal resistance, high output power
- Up to 5 years service life
- Complete sealed (no liquid leakage, no acid gas spill)
- Low self-discharge rate, less than 3.5% per month
- Can be used any direction, easy to transport
- Good corrosion resistant performance and deep discharge recovery performance
3. Applifications
Our items are widely used in control system, wind/solar power system, electronic power system, UPS, telecommunication systems, etc.
4. Company Informations
Founded in 2005, TeLong Energy Technology Co., Ltd has always been insisting on the follow enterprise business ethic ''Reasonable price, reliable quality, timely delivery, friendly service'', from which TeLong won a lot of reputation all over the world.
TeLong mainly produce the following type---AGM VRLA battery, GEL battery, OPzV, OPzS tubular plate battery, Automotive battery, Motorcycle battery, Golf cart battery, Electric vehicle battery, etc.
Our items have been sold out to South East Asia, Europe, Ameirica, Africa more than 100 different countries. We are well appreciated by our customers on good quality and performance.
In addition, We can OEM and ODM for a given brand or design. All of your calling and email will be highly appreciated. More information welcome to visit our company website: http://www.sztlg.com http://www.telongbattery.com
6. More informations, welcome to visit our website or contact me directly, all your comments will be highly appreciated.
http://www.sztlg.com/
Heep: //tlgbattery. En. Made-in-China. Com/
| Model | Nominal Voltage(V) | Rated Capacity(Ah) | Dimension | Weight | Terminal |
| L | W | H | Total Height |
| mm | in | mm | in | mm | in | mm | in | kg | pound |
| TLD12-6 | 6 | 12 | 151 | 5.94 | 50 | 1.97 | 94 | 3.7 | 100 | 3.94 | 1.7 | 3.75 | F2 |
| TLD14-6 | 6 | 14 | 108 | 4.25 | 71 | 2.79 | 140 | 5.51 | 140 | 5.51 | 2.3 | 5.07 | F1/F2 |
| TLD100-6 | 6 | 100 | 195 | 7.68 | 170 | 6.69 | 207 | 8.15 | 213 | 8.39 | 16.5 | 36.4 | F12 |
| TLD150-6 | 6 | 150 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 251 | 9.88 | 23.5 | 51.8 | F10 |
| TLD180-6 | 6 | 180 | 306 | 12 | 168 | 6.61 | 220 | 8.66 | 226 | 8.9 | 26.8 | 59.1 | F12 |
| TLD200-6A | 6 | 200 | 306 | 12 | 168 | 6.61 | 220 | 8.66 | 226 | 8.9 | 28.3 | 62.4 | F12 |
| TLD200-6B | 6 | 200 | 250 | 9.84 | 125 | 4.92 | 362 | 14.3 | 366 | 14.4 | 31.0 | 68.3 | F12 |
| TLD200-6C | 6 | 200 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 251 | 9.88 | 29.0 | 63.9 | F10 |
| TLD220-6 | 6 | 220 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 251 | 9.88 | 31.0 | 68.3 | F10 |
| TLD225-6 | 6 | 225 | 320 | 12.6 | 176 | 6.93 | 225 | 8.86 | 229 | 9.02 | 32.0 | 70.5 | F12 |
| TLD300-6 | 6 | 300 | 295 | 11.6 | 178 | 7.01 | 345 | 13.6 | 365 | 14.37 | 48.0 | 105.8 | F12/AM |
| TLD150-82 | 8 | 150 | 260 | 10.2 | 182 | 7.17 | 295 | 11.6 | 299 | 11.8 | 29.5 | 65.0 | F12 |
| TLD7-12 | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 93 | 3.66 | 99 | 3.9 | 2.2 | 4.85 | F2 |
| TLD12-12 | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | 3.4 | 7.49 | F2 |
| TLD17-12 | 12 | 17 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5.2 | 11.46 | F3 |
| TLD20-12 | 12 | 20 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5.4 | 11.9 | F3 |
| TLD24-12 | 12 | 24 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 7.6 | 16.8 | F4 |
| TLD28-12 | 12 | 28 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8.3 | 18.3 | F4 |
| TLD33-12 | 12 | 33 | 195 | 7.68 | 130 | 5.12 | 155 | 6.1 | 168 | 6.61 | 10.2 | 22.5 | F11 |
| TLD40-12 | 12 | 40 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 12.8 | 28.2 | F11 |
| TLD45-12 | 12 | 45 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 13.5 | 29.7 | F11 |
| TLD50-12 | 12 | 50 | 250 | 9.84 | 160 | 6.3 | 178 | 7.01 | 197 | 7.76 | 15.8 | 34.84 | F5 |
| TLD55-12 | 12 | 55 | 239 | 9.41 | 132 | 5.2 | 205 | 8.07 | 210 | 8.27 | 16.6 | 36.6 | F11 |
| TLD65-12 | 12 | 65 | 350 | 13.8 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | 19.6 | 43.2 | F11 |
| TLD75-12 | 12 | 75 | 260 | 10.24 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | 21.5 | 47.4 | F21 |
| TLD80-12 | 12 | 80 | 350 | 13.8 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | 21.8 | 48.0 | F11 |
| TLD90-12 | 12 | 90 | 306 | 12.05 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | 26.5 | 58.4 | F21 |
| TLD100-12 | 12 | 100 | 328 | 12.92 | 171 | 6.74 | 214 | 8.43 | 218 | 8.59 | 30.5 | 67.2 | F12 |
| TLD120-12 | 12 | 120 | 410 | 16.14 | 176 | 6.93 | 227 | 8.94 | 227 | 8.94 | 35.5 | 78.24 | F12 |
| TLD134-12 | 12 | 134 | 341 | 13.4 | 173 | 6.81 | 283 | 11.1 | 288 | 11.3 | 40.0 | 88.2 | F12 |
| TLD150-12 | 12 | 150 | 482 | 19 | 170 | 6.69 | 242 | 9.53 | 242 | 9.53 | 44.5 | 98.1 | F12 |
| TLD180-12 | 12 | 180 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 55.5 | 122.3 | F12 |
| TLD200-12 | 12 | 200 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 60.0 | 132.2 | F12 |
| TLD225-12 | 12 | 225 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 63.0 | 138.9 | F12 |
| TLD250-12 | 12 | 250 | 520 | 20.5 | 269 | 10.6 | 220 | 8.6 | 224 | 8.82 | 69.5 | 153.2 | F12 |
