Mfr012 Hygrostat for Air Cinditioner

Name: Mfr012 Hygrostat for Air Cinditioner
Brand: all-electronics-online.com
SKU: 829818365
Availability: InStock
Rating: 4.6 (54 reviews)

Price:	US $ 10.5-11.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MFR012
Switch Difference:	4% Rh (+-3% Tolerance)
Min. Switching Capacity:	20V AC/DC 100 Ma
Max. Switching Capacity:	250 VAC, 5 (1) a DC 20W
Service Life:	> 100 000 Cycles

Product Description

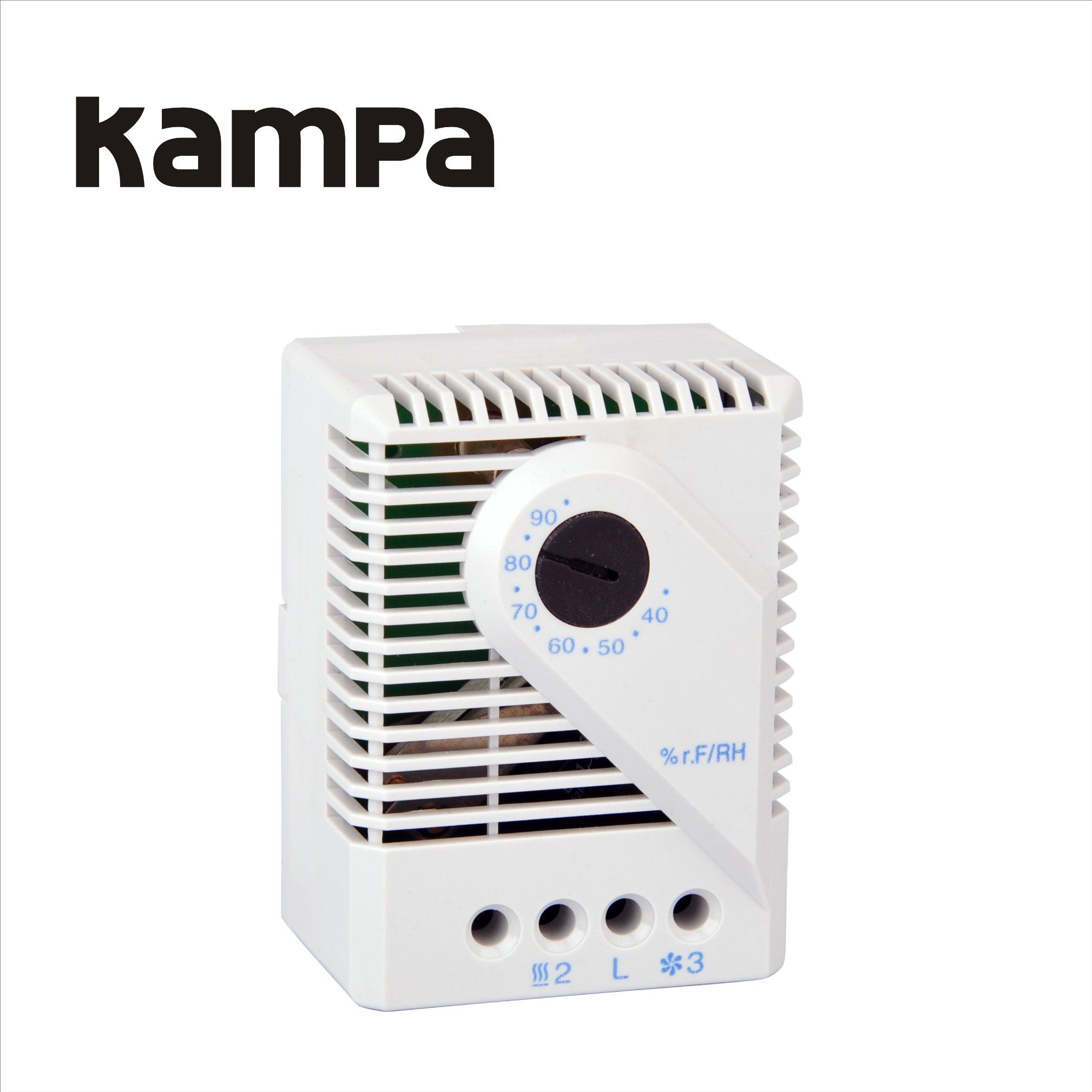

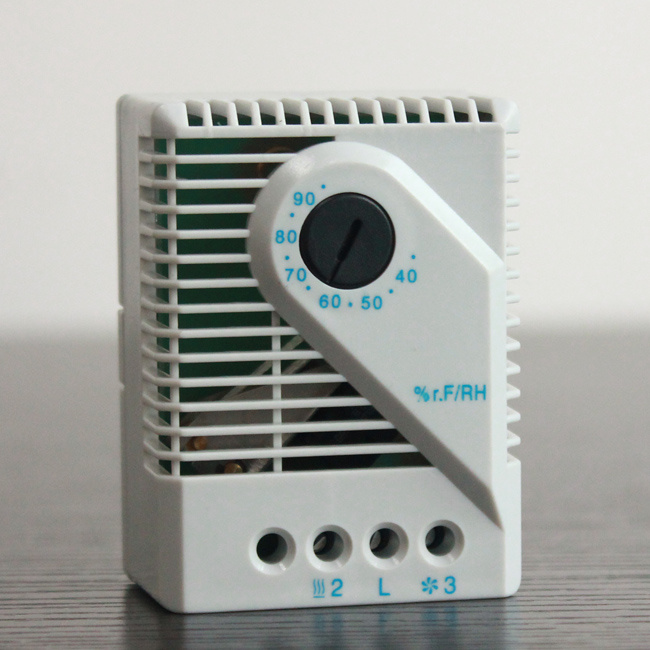

Mechanical Cabinet Hygrostat Thermostat Humidity Controller MFR012

1.Specification
Adjustable relative humidity
Change-over contact
High switching capacity
Easily accessible terminals
Clip fixing

Switch difference*	4% RH (±3% tolerance)
Permissible air velocity	15m/sec

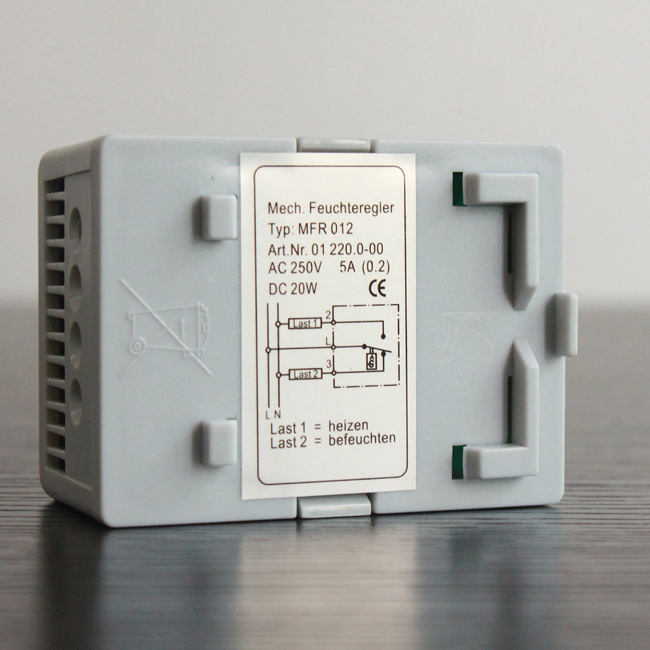

Contact type	change-over contact
Service life	> 50,000 cycles
Min. switching capacity	20V AC/DC 100 mA
Max. switching capacity	25VAC, 5A
	DC 20W
Connection	3-pole terminal for 2.5mm², clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN60715
Casing	plastic according to UL94 V-0, light grey
Dimensions	67 x 50 x 38mm
Weight	approx. 60g
Fitting position	variable
Operarting/Storage temperature	0 to +60°C (+32 to +140°F) / -40 to +60°C (-40 to +140°F)
Operating / Storage humidity	max. 90 % RH (non-condensing)
Protection type	IP20
Approvals	UL File No. E164102
*at 50% RH

Art. No.	Setting range
01220.0-00	35 to 95% RH
