Mica Tubes

Name: Mica Tubes
Brand: all-electronics-online.com
SKU: 670417232
Availability: InStock
Rating: 4.9 (43 reviews)

Price:	Negotiablekg
Trade Terms:	FOB, CIF or Others
Min Order:	100kg
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Electrical Base, Shell
Chemistry:	Organic Insulation
Material:	Mica
Maximum Voltage:	<10KV
Type:	Insulation Tube
Thermal Rating:	500 C

Product Description

1. Properties and Usages

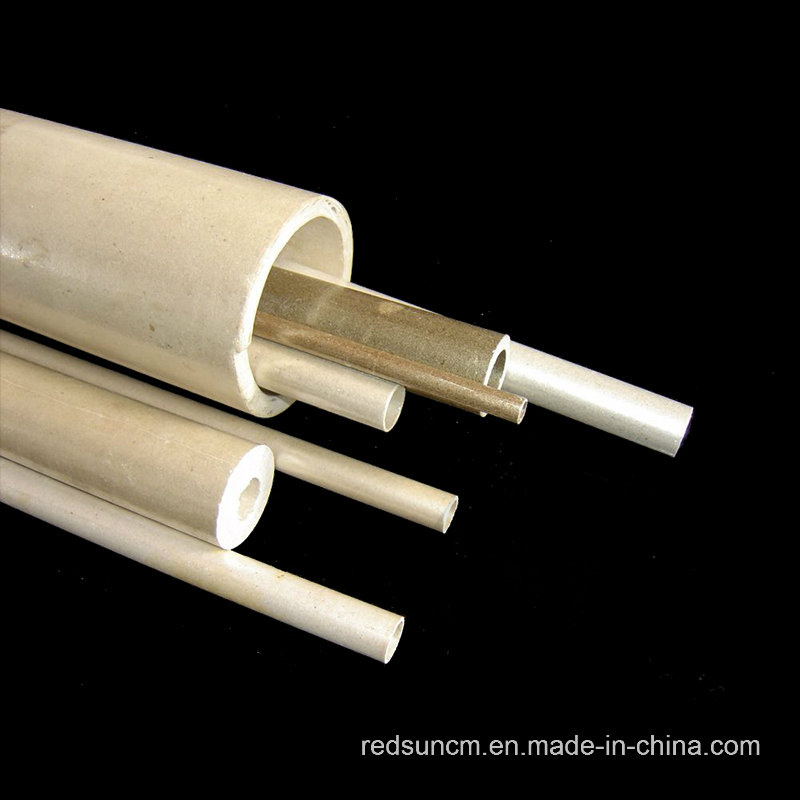

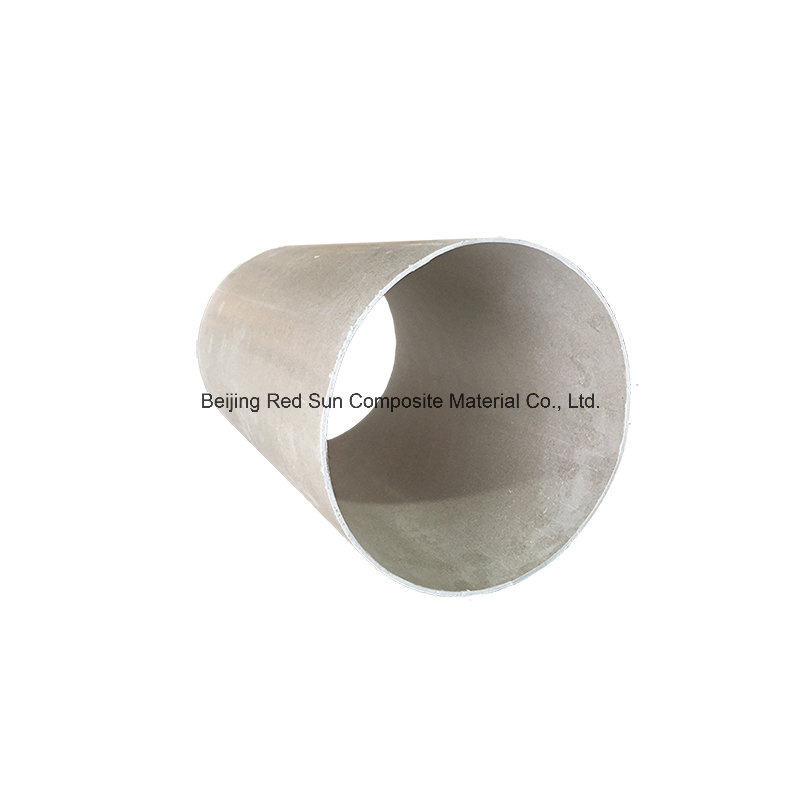

The mica tube is a hard tube from insulate material which is formed by using mica sheet, muscovite paper or phlogopite paper fixed with glue (by using mica paper glued on single side reinforce material), and processed by roll form. It has good electric capability and a higher mechanical strength, and is suitable to be used as the insulate pipe form material in all kind of electric equipments, motors, furnaces, electric-arc furnaces, other metallurgy industry equipment.
2. Specifications
Mica tube is of 10-700mm length, the internal diameter is 10-300mm. The size of mica tube is over that is to be determined according to the contract or the blue-print supplied by both parties.
3. Main Technical Standards
Mica tubes as per table below. Special type mica tubes can be manufactured according to the samples or the blue-print supplied by the customers.
Mica tubes as per table below

Type	Description	Heat Resist Grade	Dielectric Strengh (Kv/mm)	Reinforce Material	Standard NO.
R5931	Shellac mica tube	B	≥10	-	QB/YZ1.01-94
R5931-1	Shellac glass powder mica tube	B	≥10	Non-soda glass cloth	QB/YZ1.03-94
R5934	Epoxy mica tube	B	10	-	QB/YZ1.05-94
R5934-1	Epoxy glass powder mica tube	B	≥10	Non-soda glass cloth	QB/YZ1.07-94
RS5M-2	Silicone muscovite tube	550ºC	≥10	-	QB/YZ1.09-94
RS5P-2	Silicone phlogopite tube	600ºC	≥10	-	QB/YZ1.11-94

Tolerance of internal/external diameter mm

Standard Internal Dia.	Internal Dia.	External Dia.
<10	±0.3	±0.4
10~20	±0.4	±0.5
21~50	±0.5	±0.7
51~100	±0.6	±1.0
101~200	±0.8	±1.2
201~300	±1.0	±1.5
