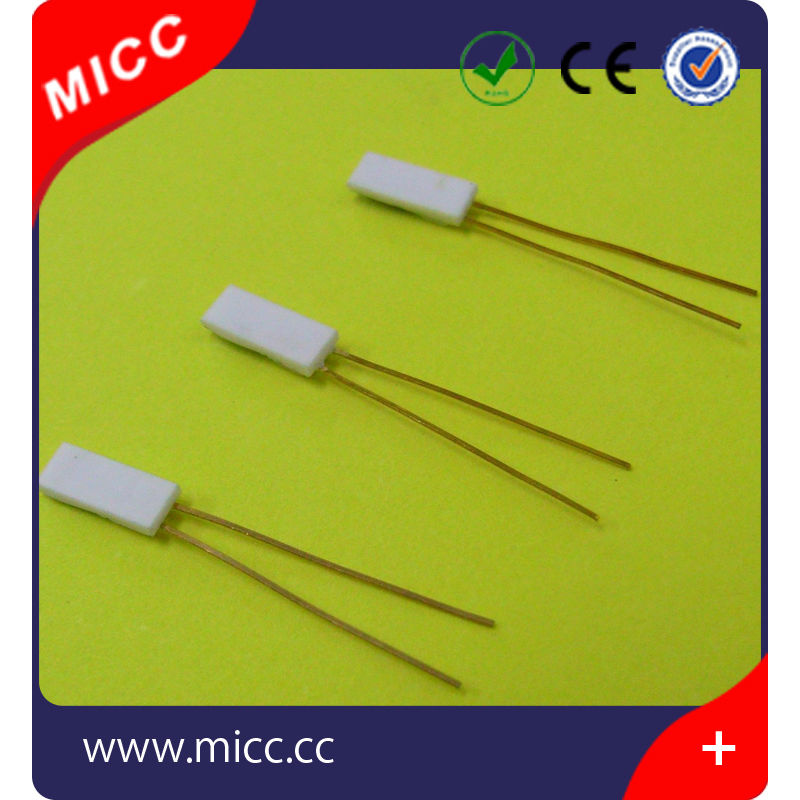

Micc 1.9X2.3mm Thin Film Platinum Elements

Name: Micc 1.9X2.3mm Thin Film Platinum Elements
Brand: all-electronics-online.com
SKU: 809662035
Availability: InStock
Rating: 4.6 (135 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Thin Film Platinum Elements

Product Description

M series PRTDs are designed for large volume applications where long term stability, interchangeability and accuracy over a large temperature range are vital. Typical applications are Automotive, White goods, HVAC, Energy management, Medical and Industrial equipment.

The measuring point for the nominal resistance is defined at 8mm from the end of the sensor body.

Nominal Resistance R0	Tolerance DIN EN 60751 1996-07	Tolerance DIN EN 60751 2009-05	Order Number Plastic Box
100 Ohm at 0º C	Class 1/3B	F 0.1	32 207 692
	Class A	F 0.15	32 207 691
	Class B	F 0.3	32 207 690
1000 Ohm at 0º C	Class B	F 0.3	32 207 695

Specification	DIN EN 60751 (according to IEC 751)
Temperature range	-70º C to +500º C (continuous operation) (temporary use to 550º C possible) Tolerance Class B: -70º C to +500º C Tolerance Class A: -50º C to +300º C Tolerance Class 1/3 B: 0º C to +150º C
Temperature coefficient	TCR = 3850 ppm/K
Leads	Pt clad Ni- wire Recommended connection technology: Welding, Crimping and Brazing
Lead lengths (L)	10mm 1mm
Long-term stability	max. R0-drift 0.04% after 1000 h at 500º C
Vibration resistance	at least 40g acceleration at 10 to 2000 Hz, depends on installation
Shock resistance	at least 100g acceleration with 8ms half sine wave, depends on installation
Environmental conditions	unhoused for dry environments only
Insulation resistance	> 100 MΩ at 20º C; > 2 MΩ at 500º C
Self heating	0.6 K/mW at 0º C
Response time	water current (v= 0.4m/s): t0.5 = 0.04s t0.9 = 0.12s air stream (v= 2m/s): t0.5 = 2.2s t0.9 = 7.0s
Measuring current	100Ω : 0.3 to 1.0 mA 1000Ω : 0.1 to 0.3 mA (self heating has to be considered)
Note	Other tolerances, values of resistance are available on request.
