Micc 20L 200L Standard Silicone Oil Drum Heater

Name: Micc 20L 200L Standard Silicone Oil Drum Heater
Brand: all-electronics-online.com
SKU: 819294455
Availability: InStock
Rating: 5 (121 reviews)

Price:	US $ 2-90/Piece
Min Order:	1/Piece
Pay Type:	L/C,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	silicone rubber heater
Name:	Micc 20L 200L Standard Silicone Oil Drum Heater
Brand Name:	Micc for Silicone Heater
Voltage:	5V-480V
Color:	Red
Condition:	New
Dimension(LWH):	Custom Size, 20*20 mm
Warranty:	1 Year
Minimun Size:	20*20 mm
Size Deviation:	0.5%
Power Source:	Electric

Product Description

MICC 20L 200L Standard Silicone Oil Drum Heater

General Introduction

Silicon rubber can be manufactured from etched foil or from resistance wire as a wire wound circuit. The circuit pattern is vulcanized between two layers of silicon rubber and can be easily mounted to heat sinks or devices that need to be heated.

Silicon rubber's flexility can make your Silicon Rubber Heater in the shape of flat, spiral wrap, blanket, and molded to shape. Silicon rubber heater can be supplied with thermistors , thermostats, thermal fuses and thermocouples.

Silicon rubber's flexility will assemble the heater to your application through the process of vulcanization and the use of silicon and pressure sensitive adhesives.

Features

Product	High Effiency Silicone Rubber Material Diesel Oil Heater
Size	2025mm~500mm5000mm, thickness1.5mm(can be customized)
Resistance wire	nickel 80% wound wire or nickel 80% foils(thickness 0.05 mm~0.10mm)inside
Shape	variety of shapes, can be customized
Power design	3~5w/cm2,fast heating
Working Temp.	-60~200 degree
Wire Length	Standard 200mm
Maximum temperature resistant of insulation	200c

other features:

1.Beat continuous working temperature as 150c, max temperature as 230c momentarily.

2.Power deviation :8% insulation resistance :>=5MU

3.Compressive strength:1500v/5s

4.standard dimension: width:20mm-1000mm;Length:25mm-1000mm;lead wire length:200 mm

Applications

1	Industrial equipment, pipelines, barrels, tanks, etc.
2	Outdoors telecommunication equipment
3	Outdoors electronic devices
4	Medical equipment and devices
5	Thermal imaging of imaging equipment
6	Case protection under cold and moist environment
7	Industrial ovens and thermal processing equipment
8	Ventilator supports
9	Laminating equipment
10	Vessels

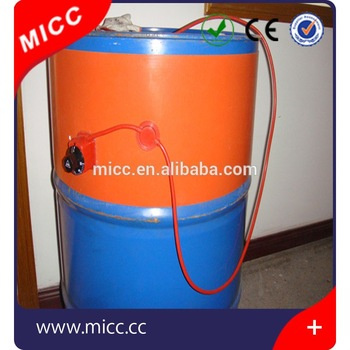

Flexible Powerblanket drum silicone rubber heating pad

MICC TECH. LIMITED is a professional export-oriented company which located in Nanjing, one of largest commercial city in China. We mainly produce thermocouple wire, thermocouple connector, thermocouple head, MI cable, FeCrAl wire, NiCr wire, CuNi wire, pure nickel wire and thermocouple bare wire. Our company has been engaged in these fields for more than 5 years and has a sound reputation and credits among the foreign customers with our great variety of first-rate quality products and good services. Our selling net-work has expanded to Europe, South America, Middle East etc. OEM order is welcomed and well done!

According to international standard, we introduce new techniques and new processes, so we can keep improving product quality. There are strict processes and quality manages to make sure the products keep updated, and be well received by users.

We warmly welcome all client friends to visit us and talk about business. We have established excellent business relationships with lots of our old partners based on equality, mutual benefit, customer first & service foremost, contract respecting. We look forward to your business negotiation and will sincerely be your best trade partner.
