Micc Class 1 Electric 4-20mm Cartridge Heater

Name: Micc Class 1 Electric 4-20mm Cartridge Heater
Brand: all-electronics-online.com
SKU: 812143545
Availability: InStock
Rating: 5 (62 reviews)

Price:	US $ 3-5/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	4-20mm cartridge heater
Brand Name:	Micc for Cartridge Heater
Color:	Silver or Red or Black
Product:	Cartridge Heater
Power(W):	200W
Diameter:	8mm
Application:	Heater Parts
Model Number:	CH098 for Cartridge Heater
Resistance Material:	Cr20ni80
Tube Material:	Ss304,310,316,321,Incoloy etc
Warranty:	1 Year

Product Description

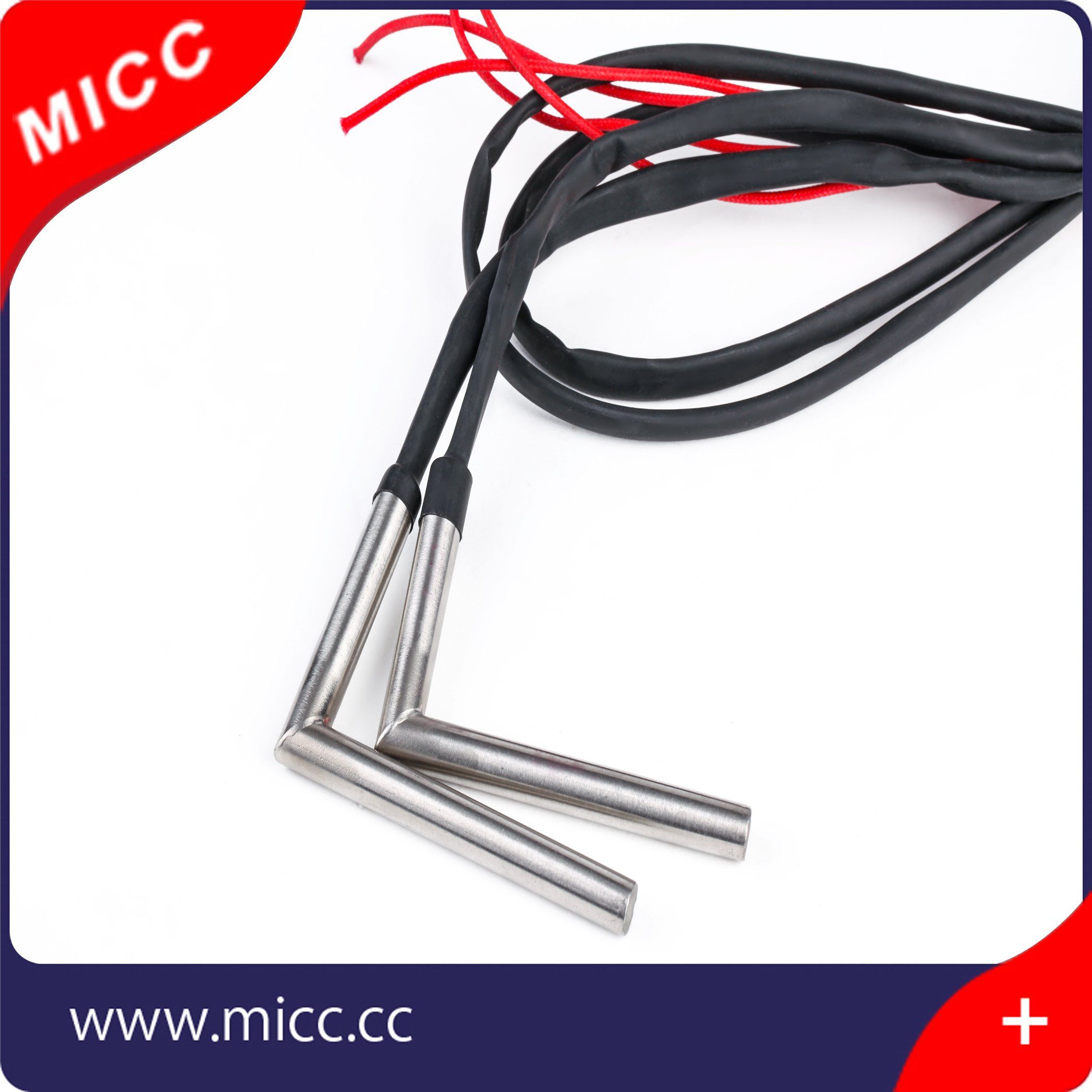

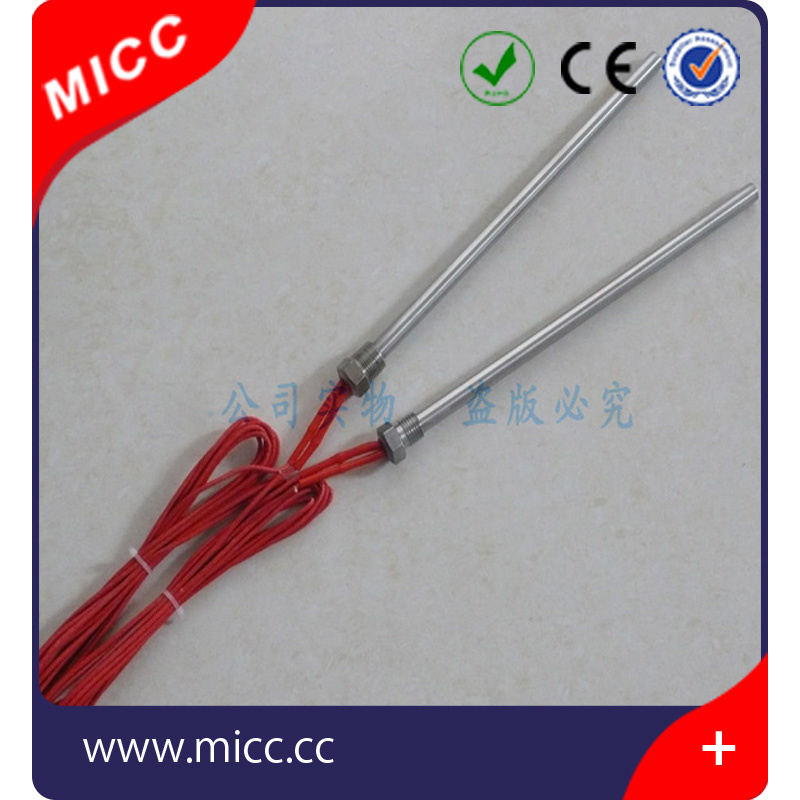

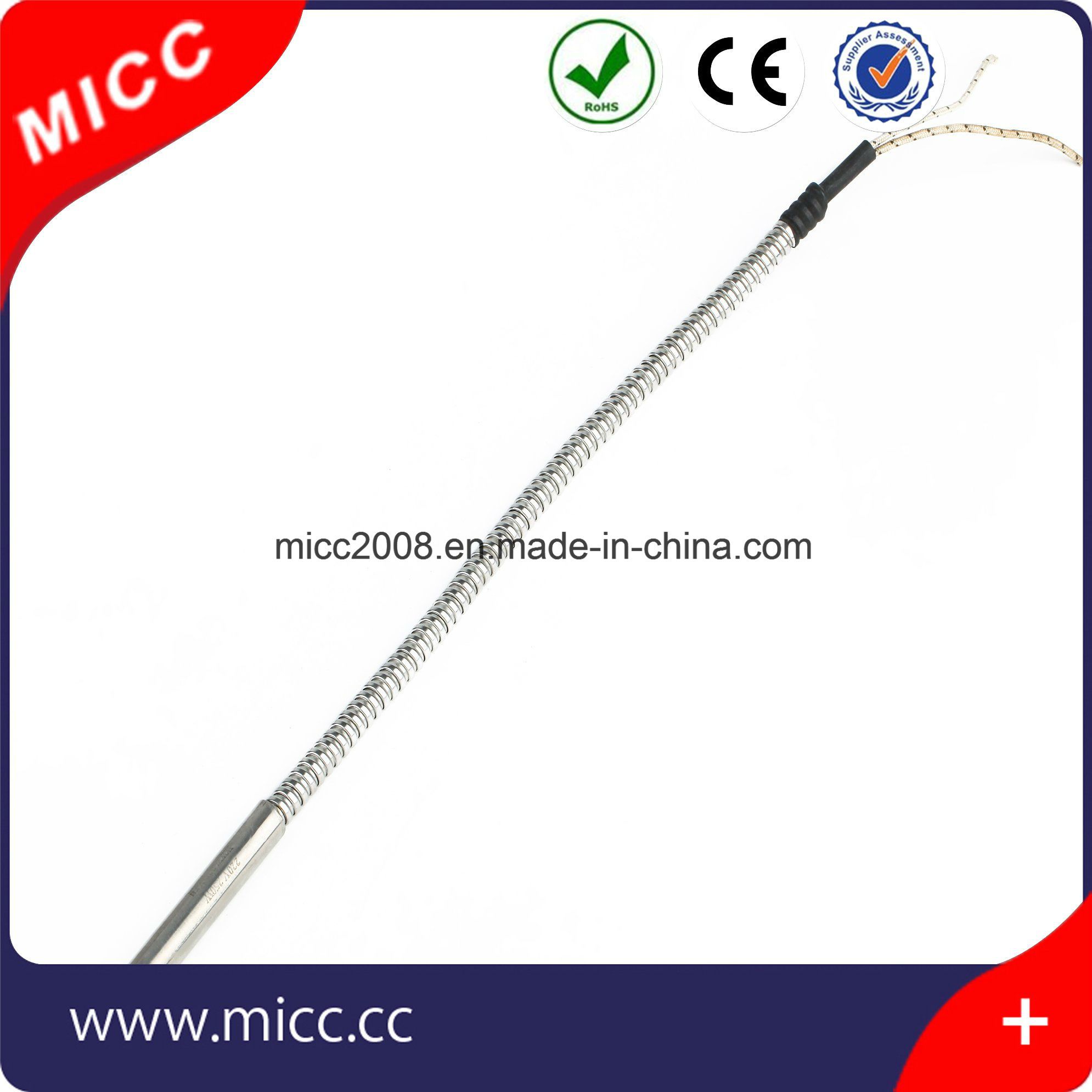

MICC class 1 electric 4-20mm cartridge heater
Products Show

Description
Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,
that is used in heating applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic forms - high density and low density.
High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.

Application

Injection moulding - Internal heating of nozzles
Hot runner systems - Heating of manifolds
Packaging industry - Heating of cutting bars
Packaging industry - Heating of hot stamps
Laboratories - Heating of analytical equipment
Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
Telecommunications: Deicing, Enclosure Heater
Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
Food Service: Steamers, Dish Washers,
Industrial: Packaging Equipment, Hole Punches, Hot Stamp.

Technical data

Industrial heater	Immersion cartridge water heater with thermocouple
Resistance heating wire	NiCr 80/20 wire
Sheath	stainless steel 304,321,316, Incoloy 800, Incoloy 840
Maximum temperature	800 degree Celsius
Wattage Tolerance	+5%, -10%
Resistance tolerance	+10%, -5%
Voltages available	380V,240V, 220V,110V,36V,24V or 12V
Length tolerance	±1 mm
Diameter tolerance	-0.02mm
Standard Cold Zone	5-10mm
Delivery time	7-10 working days
Insulation resistance (cold)	≥ 500 MΩ
Maximum leakage current (cold)	≤ 0.5 mA
Thermocouple Location	type J
	type K
	type K
