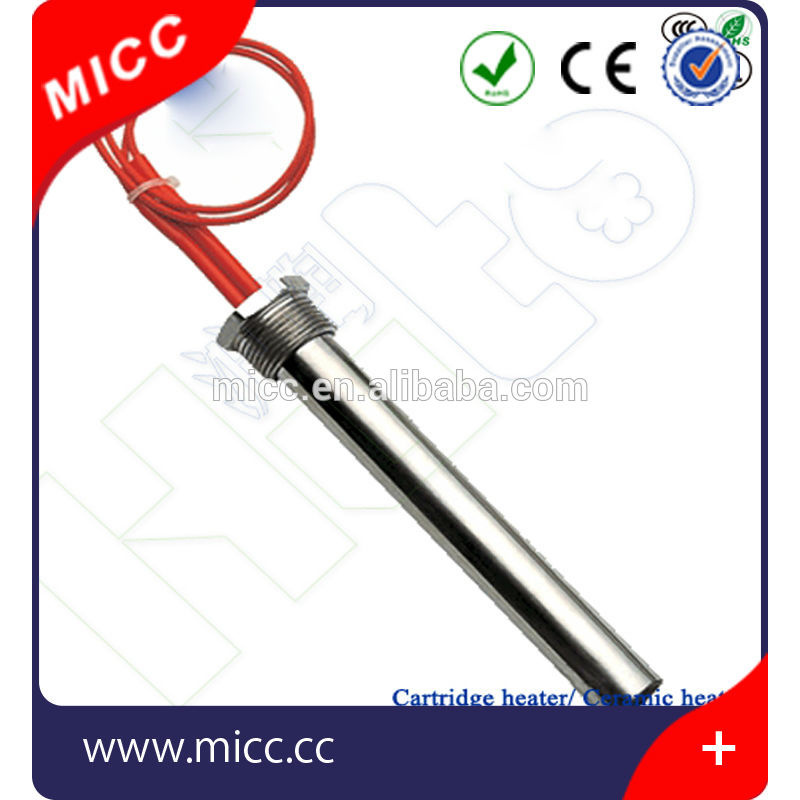

Name: Micc Electric Heating Element Cartridge Heater
Brand: all-electronics-online.com
SKU: 809812095
Availability: InStock
Rating: 4.7 (109 reviews)

Price:	US $ 3-20/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	element cartridge heater
Name:	Micc Electric Heating Element Cartridge Heater
Place Of Origin:	Jiangsu, China (Mainland)
Dimension(LWH):	Customized
Power(W):	Customer
After-Sales Service Provided:	Engineers Available
Sheath Material:	Stainless Steel Ss304/316/321
Voltage:	12-480V

Product Description

Packaging & Delivery
Packaging Details:10pcs cartridge heater will be in one plastic bag then cartons,max25KGS/carton;max carton size 650*350*260mm
Delivery Detail:Shipped in 7 days after payment

Product Description
Technical features : The double-sided radiating will be instead of the traditional single radiating elements.
Description: Applying for the air heating, Characteristic of high temperature and high power density , similar as the bolt heater, heaters for the aluminum mold, tube diameter will be ≥Φ 16mm.
we take the process of armoured and hollow improving the traditional process of single heat radiating into double heat radiating, increasing the heat exchange capacity, reducing the heat saving to avoid the high working temperature damage the heating elements . What improve the life span more than 3 times than before.

TECHNICAL DATA:
• Sheath material: stainless steel ss304/316/321
• Heating resistance wire:Cr20Ni80
• Working temperature: max 700°C
• Diameter range (mm):2.6mm-30mm
• Length range (mm):15mm-3000mm
• Diameter tolerance: metric -0.02/-0.06mm
• Length tolerance: ±1mm
• Power tolerance: +5%,-10%
• Rated voltage (110-220):max1.27 times
• Insulation resistance: min5Ω
• With(and voltage:1500v/min)
• Designed life:3000 hours
• Power density:
1) -heating in mold: 45w/cm2(max)
2) -heating in water: 67w/cm2(max)
3) -heating in static air: 10w/cm2(max)
4) -heating in flowing air: 18w/cm2(max)
5) Wire lead: fiberglass
