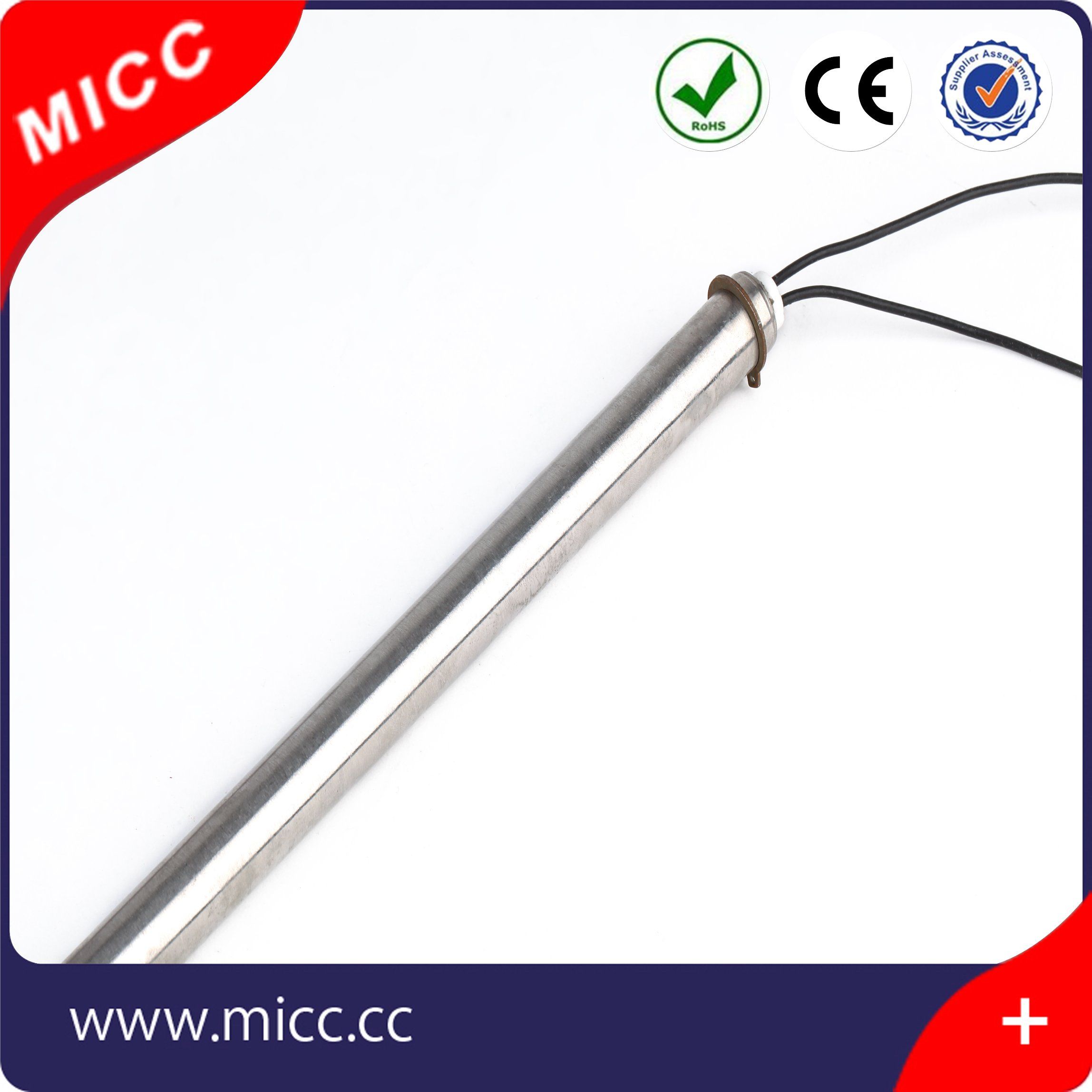

Micc Located Cartridge Heater

Name: Micc Located Cartridge Heater
Brand: all-electronics-online.com
SKU: 809785155
Availability: InStock
Rating: 4.8 (50 reviews)

Price:	US $ 1.5-8/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Voltage:	12V 24V 110V 220V 380V
Warranty:	One Year
Length:	50mm - 6000mm
Working Temperature:	650c Maximum

Product Description

Heating Elements Locating Cartridge Heater

General Information

AUSTIN Heating Technology manufactures custom made locating ring cartridge heater for any application. Electric locating ring cartridge heaters are a versatile and economical heat source for a wide variety of industrial and commercial applications.

Standard tube diameters are 6mm, 8mm, 10mm, 12mm and 16mm, but other special sizes are available for locating ring cartridge heater. Depending on the diameter, lengths can be supplied up to 6000mm. Standard sheath materials are Stainless Steel 201, 304, 316 and 321, but special sheath materials may be available based on diameter and size of the element required.

Electric locating ring cartridge heater provide superior heat transfer, uniform temperatures, resistance to oxidation and corrosion and long life even at high temperatures. Flexible lead wire extensions or other mounting options are available for specific applications.

Characteristics & Properties
Tube diameter: Φ6mm-Φ30mm
Tube Material: SS201, SS304, SS316, SS321 and INCOLOY800 etc
Insulation Material: MgO
Conductor Material: Nichrome Resistance Wire
Wattage Density: High/Middle/Low (5-25w/cm2)
Lead Connection Option: Threaded Stud Terminal or Lead Wire

Lead Wire Type: 300mm Standard (Teflon/Silicone High Temperature Fiberglass are available for locating ring cartridge heater)

Heat intensity	Not exceeding 30w/cm2 (advisable)
Power	Depends on the dimension
Exhaust extreme (when cold)	<=0.1mA to 242 v.
Insulation (when cold)	5 Min Ohms 500 Watts minimum
Dielectric strength	1500v. 1/sec
Working temperature	650 Deg C max.
Length tolerance	+/-1.5%
Diameter tolerance	-0.02 to -0.06 mm
Cut off connection tolerance	+/-15 mm
Power tolerance (w)	+5 % - 10 %
Cold areas	Depends on length and diameter 5-25mm

Suggested Applications

Semiconductor Chamber Heating
Semiconductor Wafer Lead Connection
Semiconductor Wire and Die Bonding
Freeze Protection and Deicing of Equipment in Cold Climates or Applications
Humidity Control
Patient Comfort Heating used in Medical Devices
Mold Die and Platen Heating
Seal Bars used in Packaging Equipment
Test Sample Heating in Gas Chromatography
Heat Transfer Machine
