Micc Ss304 Ss321 Ss316 220V 230V 240V Armored Coil Heater

Name: Micc Ss304 Ss321 Ss316 220V 230V 240V Armored Coil Heater
Brand: all-electronics-online.com
SKU: 811842565
Availability: InStock
Rating: 4.3 (95 reviews)

Price:	US $ 8-25/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	220V 230V 240V Armored coil heater
Name:	Micc Ss304 Ss321 Ss316 220V 230V 240V Armored Coil
Condition:	New
Dimension(LWH):	Customize
Power(W):	100-2000W
Insulation Material:	MGO
Die Electrical Strength:	800V A/C
Resistance Wire:	Ni Cr 80-20
Length Tolerance (Straight):	±5%
Voltage:	220V230V240V
After-Sales Service Provided:	Engineers Available

Product Description

Packaging & Delivery

Packaging Details:Carton, wooden case for MICC SS304 SS321 SS316 220V 230V 240V Armored coil heater
Delivery Detail:7-10 days for MICC SS304 SS321 SS316 220V 230V 240V Armored coil heater

Specifications
1.MICC SS304 SS321 SS316 220V 230V 240V Armored coil heater
2. With temperarture box
3. CrNi sheath
4. Mould coil heater for
5. height:30mm-280mm
6. wrapped ID:10MM-42MM

quartz nail,enail,glass smoking hot runner coil heater
Description (MICC SS304 SS321 SS316 220V 230V 240V Armored coil heater )

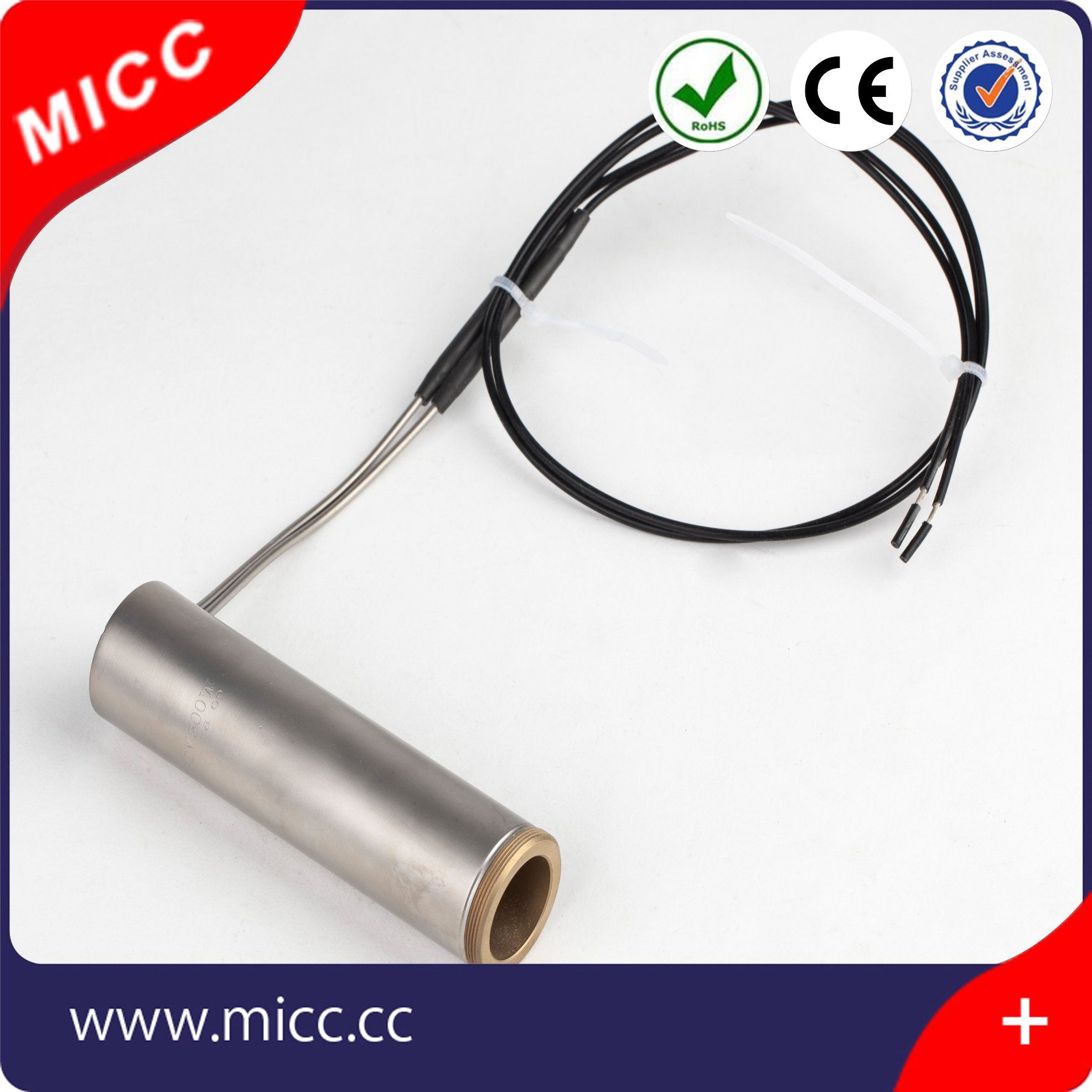

Coil spring heater with thermocouple is made of nickel chrome resistance wire placed inside chrome nickel steel tube
filled with MgO powder and compacted for faster and efficient heat transfer.
The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available.
Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.

Application (MICC SS304 SS321 SS316 220V 230V 240V Armored coil heater )
1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.

Features (MICC SS304 SS321 SS316 220V 230V 240V Armored coil heater )
1. Standard sizes available with various cross section
2. Various Watt Density options available.
3. Robust Design with Choice of Terminal Exits
4. Available with built in Thermocouple
5. Designed for even heat profile.
6. Precision fit on Hot Runner Nozzles & Manifolds.
7. Highly Non-corrosive.
8. Maximum heat transfer due to more contact area.
9. Advanced Thermal Engineering.

Technial datas (MICC SS304 SS321 SS316 220V 230V 240V Armored coil heater )

Sheath Material	Cr Ni-Steel
Insulation Material	MgO
Resistance Wire	Ni Cr 80-20
Maximum Sheath Temperature	700°C
Die Electrical Strength	800V A/C
Insulation	>5 M W
Thermocouple	J type (Standard) or K type
Length Tolerance (Straight)	5%
Wattage Tolerance	+/- 10% (+/- 5% Available Upon Request)
Resistance Tolerance	+/- 10% (+/- 5% Available Upon Request)
Unheated Length	35mm (Standard)
Dimensional Tolerance	Coil I.D +/- 0.1 to 0.2mm
Dimensional Tolerance	Coil Length +/- 1mm
