| Prod Model: |
GSCB |
| Rated Speed: |
2440rpm-47000rpm |
| Rated Power: |
0.26W~200W |
| Rated Voltage: |
3.6V/3.7V/5V/6V/7.2V/7.4V/12V/24V/36V/48V |
| Diameter: |
16mm~36mm |
| Brush: |
with or Without |
| Application: |
Power Tools |
| Operating Speed: |
High Speed |
| Excitation Mode: |
Excited |
| Structure And Working Principle: |
Round |
| Type: |
Brush/Brushless |
| Certification: |
CCC, Ce, UL, Cu |
| Brand: |
GS |
Product Description

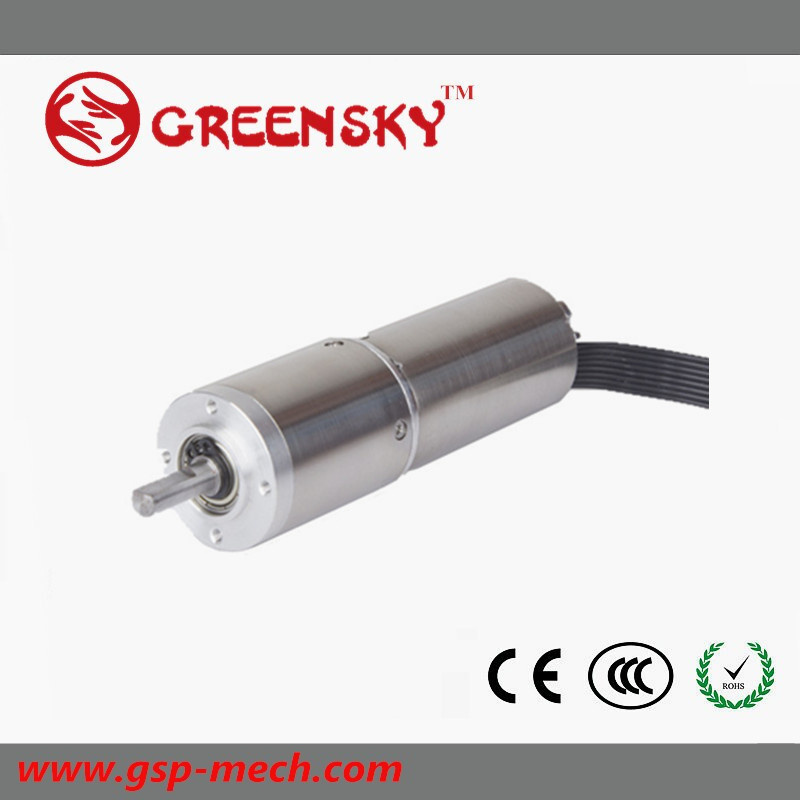

Micro 3.7V 6V 12V 24V High Speed Rpm DC Coreless Gear MotorIntroduction
Regarding coreless motor, we have both DC gear motor and Brushless dc gear motor, including 6 kinds of products. The watt is from 0.26W to 200W, voltage is from 5V to 48V. The feature of our motors are steady work, low rpm and high torque, low noise, high efficiency and long life.
Outer diameter of brush coreless motor:16mm | 22mm | 30mm | 32mm | 35mm | 40mm |
Outer diameter of brushless coreless motor:16mm | 18mm | 20mm | 22mm | 24mm | 28mm | 30mm | 36mm |
SpecificationThe datasheet is 18mm coreless brushless motor's info as reference.
Motor Voltage 6V to 220V, Power 6W to 660W (DC/BLDC) is also can be provided. | GSCB1844IH | UNIT | 001 |
| RATED VOLTAGE | V/DC | 30 |
| RATED SPEED | RPM | 13000 |
| NO LOAD SPEED | RPM | 16000 |
| NO LOAD CURRENT | mA | 120 |
| RATED CURRENT | mA | 700 |
| RATED TORQUE | mN.m | 8 |
| RATED POWER | W | 10.9 |
| MAX EFFICIENCY | % | 62 |
| RESISTANCE PHASE TO PHASE | OHM | 12 |
| TORQUE CONSTANT | mN.m/A | 17.9 |
| SPEED CONSTANT | RPM/V | 533 |
| WEIGHT | G | 60 |
| | | |
| AMBIENT TEMPERATURE RANGE | | - 20~ 55ºC |
| MAX PERMISSIBLE WINDING TEMPERATURE | | 85ºC |
| MAX PERMISSIBLE SPEED | | 30000rpm |
| MAX AXIAL LOAD | | 2.0N |
| MAX RADIAL LOADING | | 8.0N |
| NUMBER OF THE POLE PAIR | | 1 |
| NUMBER OF THE PHASES | | 3 |
Note:
The Voltage, Power and Speed can be customized according to your request under the allowed circumstance of adoptable dimension.
View Of Item
About Greensky Mechanical- History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.
- Introduce: Greensky Mechanical Co., ltd is a subsidiary company of Greensky Power which is producing micro AC and DC gear motor, small AC gear motor, precision planetary gearbox for servo motor, and it has capability to design and develop the micro motor, customized motor and precision gearbox, motor controller with high quality.
- Philosophy:We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.
Greensky's Advantage
Price | Competitive & Reasonable. Our mission is to "Greening the World". Distributing massively in a cheap price is our strategy. We want more and more people are using renewable products. |
Quality | Quality control is done by 4 processes: Manufacturer Control + Material Control + Production Control + Finished Goods Control. |
Delivery | 100% on-time delivery Guaranteed |
Evaluation | 100% Customer Satisfaction Guaranteed |
Services | English, German, Japanese and Chinese sales representatives are available for One-stop full services. |
Business type | Manufacture & Trading & EPC. Greensky Power has subsidiary company producing motor and gearbox which makes our price very competitive. At same time, Greensky Power has a subsidiary EPC company which can give professional technical support for complicated technical questions. |
Experience | Our products have been sold to strict clients in Germany and Japan. They are all satisfied with our products. Delivering quality products and convenient communication service are our goal. |
FAQ
1 Q:What infomation should I tell you to confirm the motor?
A: Model/Size B:Ratio and output speed C:Power and voltage D:Order quantity.
2 Q: What if I don't know which motor I need?
A:Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
3 Q:How long should I wait for the feedback after I send the enquiry?
A: Within 12 hours.
4 Q:What is your product warrenty period?
A:We offer one year warrenty since the vessel departure date left China.
5 Q:What industries are your motors being used?
A:Our gearboxes are widely used in the areas of household appliances and light industry,etc.
6. Q:How to delivery:
A: By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - We arrange to delivery goods to some place in China appointed by buyers.
7. When you place an order, our team will confirm with you about color, package,method of payment and delivery, then a sales contract will be sent to you to confirm.
We hope you will enjoy cooperating with us.
