| Prod Model: |
JFF-K10WA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
as Your Requirement |
| Torque: |
Adjustable |
| Speed.: |
Adjustable |
| Continuous Current(a): |
Costant |
| Output Power: |
<2W |
| Material: |
RoHS Material |
| Brush: |
Metal Brush Motor |
| Application: |
Fan, Home Appliance, Notebook PC ,Camera |
| Casing Protection: |
Totally Enclosed, Enclosed |
| Number Of Poles: |
Ie 1 |
| Structure: |
Permanent Magnet |
| Type: |
Micro Motor |
| Certification: |
Ce, RoHS, ISO9001: 2000 |
| Brand: |
Kingly |
Product Description
Packaging & DeliveryPacking Details : 1.Export standerd carton/foam.
2.Customized packing condition per your requirements
Delivery Time:5-7 days for samples; 18-25 days for production
Specifications

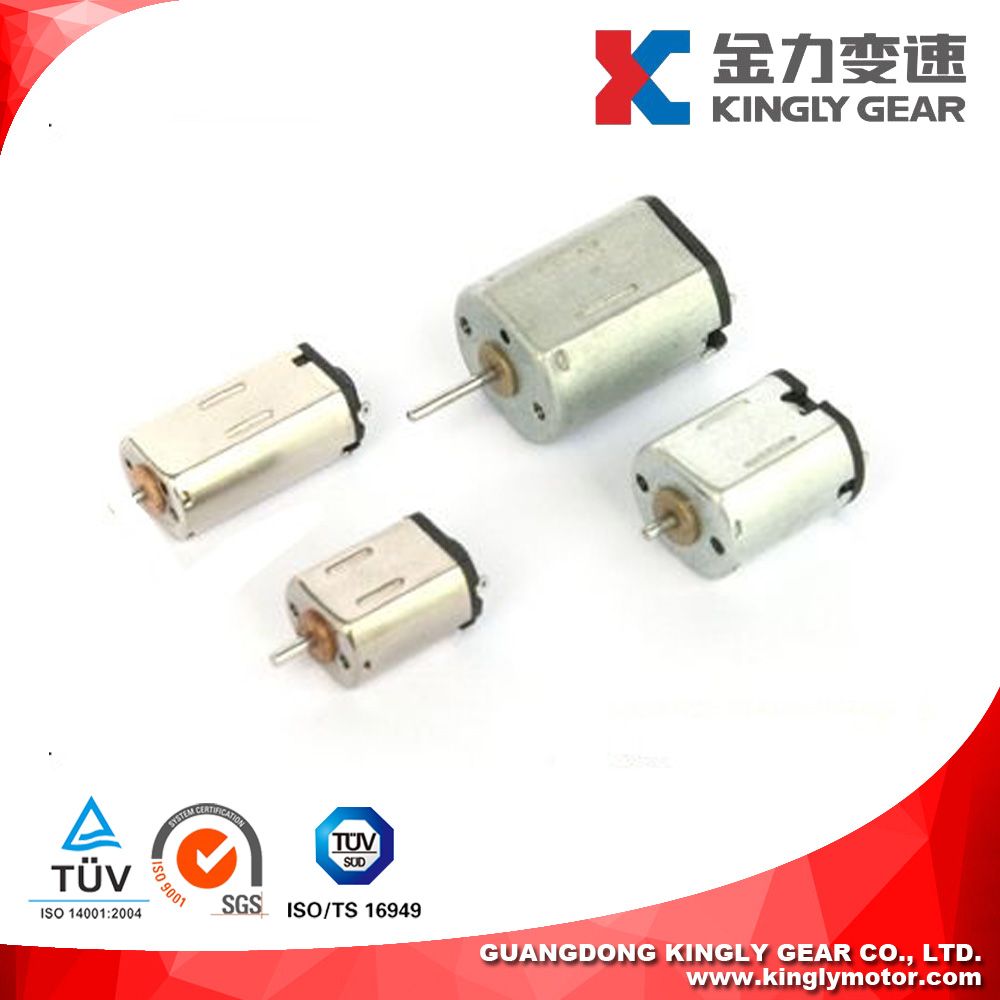

3v dc motor, micro dc motor, for automation equipment
High torque, low speed, low noise
Precious metal-brush motor
1. Power: 0.089 W
2. Voltage: 3v dc

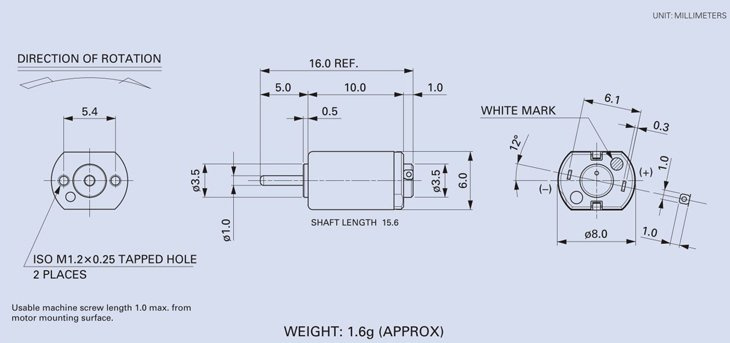

3. Length of shaft: 1.0mm
4. Motor weight: 15.6g
5..The shaft:dia 1mm
6. Motor Diameter:6.0mm length:10mm
7.Output :0.07W~0.1W
8.Certification:CE,ROHS ISO9001:2000
9.3v mini dc Motor for Notebook PC,Camera, precious metal-brush motors,office automation precision instruments
Motors specification and shaft length can be tailor-made accroding to customer's requirments.

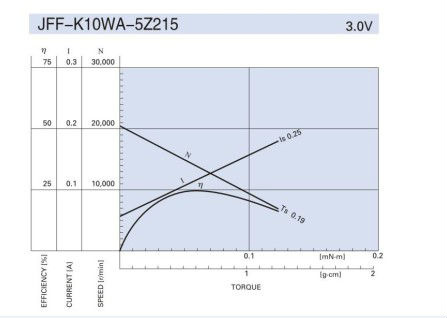

MODEL |
VOLTAGE | NO -LOAD | AT MAXIMUM EFFICIENCY | STALL |
| SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
| OPERATING RANGE | NOMINAL | r/min | A | r/min | A | mN·m | g·cm | W | mN·m | g·cm | A |
JFF-K10
WA-5Z215 | 2.5-3.5 | 3V CONSANT | 20500 | 0.057 | 13870 | 0.12 | 0.06 | 10.63 | 0.089 | 0.19 | 1.9 | 0.25 |
Packaging & ShippingPackaging Detail: Polyfoam or carton seperator inside, strong export carton box outside
Delivery Detail: Within 30 days for first order, 15-25 days for repeat order
FAQ
1).MOQ:1000PCS
2).Payment Terms: T/T
3).Supply Ability :10,000PCS /per day
4).CE ROHS and ISO 9001:2000 certificated
Core solutions to the world industrial 4.0 and related intelligent application sector!
Kingly Gear is a high-tech enterprise engaged in designing, manufacturing and selling micro gearbox, micro DC motor, AC motor, brushless motor and motor control system. It is the modern high-tech enterprise producing DC/AC motor and micro speed reduction system in large scale.
The main Applications:
L Intelligent industry: Industrial automization, Automatic lubricator, Industrial machine arm
L Intelligent agriculture: Greenhouse tent, Automatic sprinkler
L Intelligent logistics: Conveyor system
L Intelligent water and power grid: Water-electricity-gas value intelligent control
L Intelligent safeguard system: Electronic locks, Automatic door, automatic windows
L Intelligent home furnishing: Sweeper robot, Intelligent closestool, Switch,
L Intelligent environment protection:
L Intelligent transportation: Auto industry
L Intelligent medical treatment: Massager
L Intelligent entertainment: Automatic card collating machine, Stage lighting
Kingly has the production base in Huizhou of Guangdong and Huang Gang of Hubei respectively. Besides, it also sets directly subordinated branch companies in Germany in Europe and Shanghai/Ningbo/Hangzhou/Wenzhou/Chengdu in China.
Kingly has a group of qualified employees professionally engaging in R&D, production and sales. Except common micro motors and gear boxes, it also developed over 200 various special non-standard micro motors and gear boxes. It emphasizes intellectual properties, boasting dozens of patent for utility models and the copyright of motor control software.
By virtue of strong customized technology development ability and production and sales ability, its products are sold nationwide and also exported to Europe, the United States, Australia, Japan and Middle East.
Kingly will keep optimizing markets, continuously upgrade various hardware equipment and manufacturing process standards to satisfy customers, overtake industrial competitors and become the best optimal plan provider for micro intelligent transmission in China.
Company Vision: To be No. 1 brand in the customized precise transmission control system in China!
Enterprise positioning: Service and product provider for customized customized precise transmission control system!
Enterprise Mission: Provide core solutions to the world industrial 4.0 and related intelligent application sector!
Enterprise Tenet: Build the business through refined technology to meet customers' requirements; Win the competition through high quality and produce reliable products; Treat others with sincerity and provide qualified service.
Our tenet: Make enterprise with excelsior attitude, win customers with high quality, treat anybody with all sincerity!
