Micro and Mini Weighing Load Cell (CZL913E)

Name: Micro and Mini Weighing Load Cell (CZL913E)
Brand: all-electronics-online.com
SKU: 716148085
Availability: InStock
Rating: 4.4 (120 reviews)

Price:	US $ 2/Set
Trade Terms:	FOB
Min Order:	10/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL913E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	Analog Sensor

Product Description

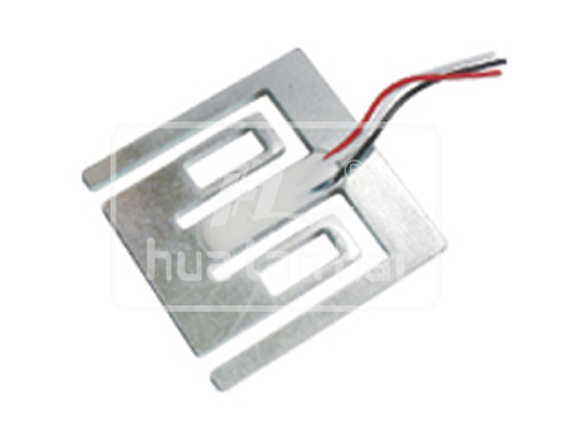

Micro Weighing Load Cell (CZL913E)

Material:     aluminium alloy
Surface:      anodized treatment
Protection:   IP65
Application:   personal scales

1. Rated Load	50 (Kg)
2. Rated Output	1.0±0.15 mV/V
3. Zero Balance	±30%F.S
4. Input Resistance	1000±50Ω
5. Output Resistance	1000±50Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.2%F.S
8. Hysteresis	0.2%F.S
9. Repeatability	0.2%F.S
10.Creep(30min)	0.2%F.S
11.Operating Temperature	-10oC To +50oC
12.Temperature Effect on Zero	0.2%F.S/10oC
13.Temperature Effect on Span	0.2%F.S/10oC
14.Insulation Resistance	2000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	420mm

Packaging

Carton Size: 38x30x30cm

Company Information

Guangdong South China Sea Electronic Measuring Technology Co Ltd is specializing in producing resistance strain gauge, load cells, micro load cells, pressure sensors, portable dynamic axle weighing scales and other electrical measurement products.

The company has the formidable scientific research strength, improve the strict quality assurance system and excellent production equipment. The main products of strain gauge, load cell are certificated by RoHS, OIML(issued by EU.) CE etc. , the company subordinate products all technical supervision department issued by the national metrology license. In 2004 and 2005 respectively awarded by "Guangdong province private S&T enterprises " and " the Guangdong Hi-tech enterprise" title, in 2007 Dongguan intellectual property office granted "the patent pilot enterprise".

Our load cells, strain gauges, pressure transducers and portable axle weigh scales have been exported to the world for a long time and achieved a certain market share. We have representative in US, Canada, Germany, British, Russia, India, Australia, etc. By this, we push our high quality products to the world!

FAQ

About samples:
Yes, we have stock for samples.

About guarantee:
Three months for free replacement and one year for free repair.

About factory:
We are original manufacturer with 700 employees in Dongguan.

About certificates:
OIML, CE, ROHS, ISO9001, SGS

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
