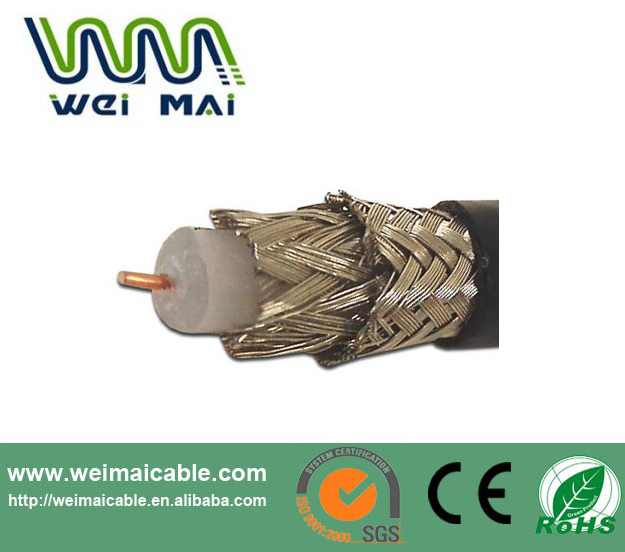

Micro Coaxial Cable Rg7 (WMO34)

Name: Micro Coaxial Cable Rg7 (WMO34)
Brand: all-electronics-online.com
SKU: 727299635
Availability: InStock
Rating: 4.5 (78 reviews)

Price:	US $ 0.01/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	20KM
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Conductors:	1
Foil:	Al Foil (Bonded or Unbonded
Linan Coaxial Cableapplication:	Broadband CATV/Video
Linan Coaxial Cable Insulation Meterial:	Foam PE
Linan Coaxial Cablecenter Conductor:	Cu or Cu Clad Steel(CCS) or CCA
Linan Coaxial Cable Braid Shied Meterial:	Bc, Tc, CCA, CCS, Al-Mg
Linan Coaxial Cable Jacket:	PVC
Linan Coaxial Cable 1st Shield:	Bonded Foil
Linan Coaxial Cable 2ND Shield:	Braided Shield
Linan Coaxial Cable Impedance:	50 Ohm
Certification:	VDE
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Type:	Coaxial Cable
Cover Material:	PVC or PE

Product Description

Linan coaxial cable low price RG7 micro coaxial cable WML7
Specifications
1.coaxial cable: ccs,copper,bc,t/c
2.CE RoHs
3.Coaxial cable
4.Small MOQ

1) Construction

Center Conductor:

1.30 + 0.01mm Solid Copper/Copper Clad Steel

Dielectric:

5.72 + 0.05mmFoam PE

Shield:

Bonded Al Foil

Braid Coverage:

60% Al

Jacket:

8.08 + 0.05mm PVC

Jelly/APD

Per Customers Special Requirement

2) Characteristics

Impedance:	75 + 3 Ohm
Capacitance:	54 + 3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-2300MHz)

3) Attenuation

Attenuation	[@68 o F. (20 o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.47	1.54
55	1.25	4.10
187	2.22	7.28
250	2.56	8.40
300	2.82	9.25
400	3.27	10.73
450	3.46	11.35
500	3.67	12.04
550	3.85	12.63
600	4.05	13.28
750	4.57	14.99
865	4.93	16.17
1000	5.32	17.45

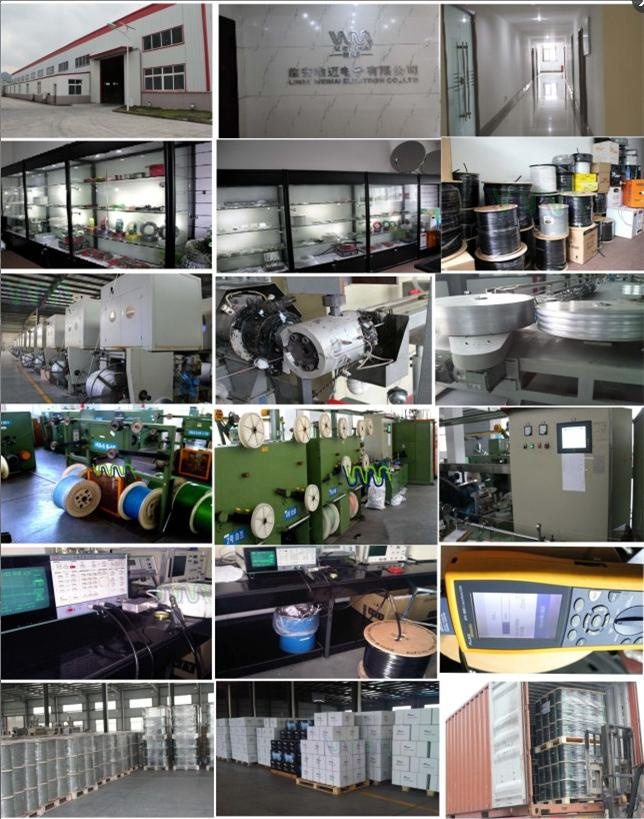

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

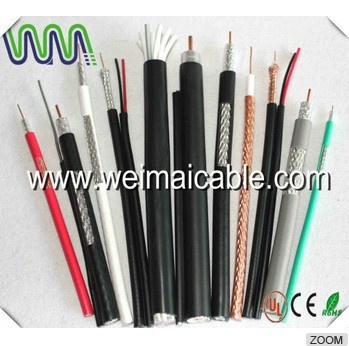

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
