Micro Differential Pressure Transducer with 4-20mA Output, Range of 0-7500PA

Name: Micro Differential Pressure Transducer with 4-20mA Output, Range of 0-7500PA
Brand: all-electronics-online.com
SKU: 810517275
Availability: InStock
Rating: 4.7 (54 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WNK268
Accuracy Grade:	1%Fs
Pressure Range:	0-7500PA

Product Description

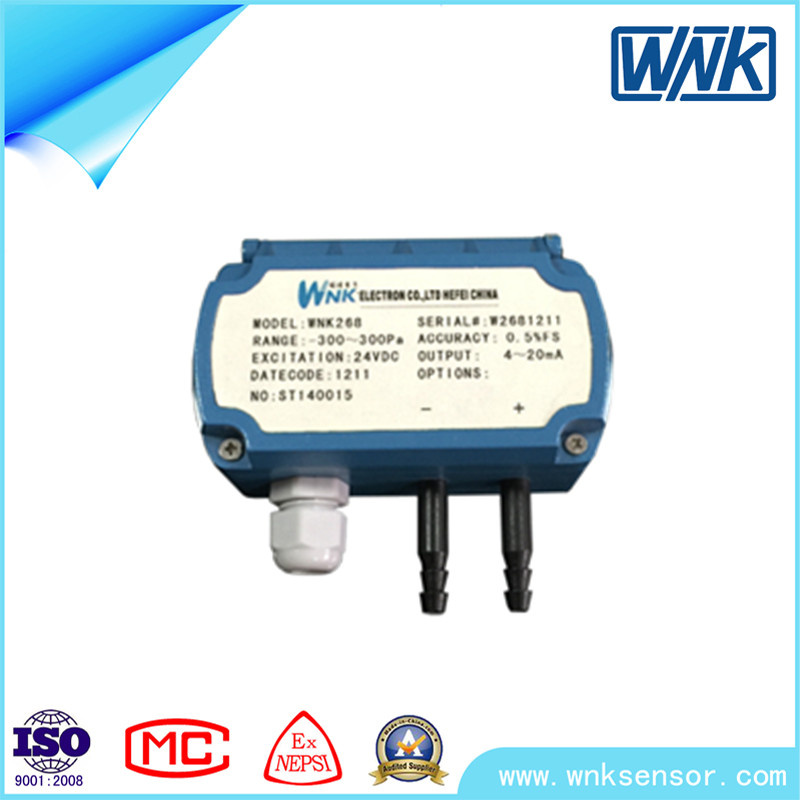

WNK268 Micro Differential Pressure Transmitter

WNK-268 is composed of stainless steel membrane and fixed electrode, which form a variable capacitance. Capacitance values change along with pressure change. Its unique detection circuit turns change of capacitance to linear direct current signal. Elastic membrane can bear overpressure of 70KPa (both positive and negative), and there will be no damage. The transmitter has been done temperature compensation so as to have developed temperature performance and long-term stability.

WNK-268 can be used for measuring differential pressure and gauge pressure (static state), and translates signal to proportional current signal, outputs 4~20mA current signal. Excitation voltage is 24VDC. WNK268 conforms to intrinsic safety requirement, explosion proof level is ia II CT4, which be applied to environment ith explosion-proof requirement. The minimum pressure range of WNK-268 is 0~100Pa, maximum pressure range is 0~100KPa. Accuracy under room temperature is
±1%FS, temperature compensation range is +5~+65ºC. Through temperature compensation circuit, the temperature influence can be lower than ±0.06%FS/ºC.
With excellent cost performance, WNK-268 has been widely applied to nature gas pipe pressure monitoring, wind pressure monitoring in power plant and etc.

Application
* Environmental pollution control
* Cleaning project
* Oven pressurization and ventilation control
* Nature gas and coal gas system monitoring
* Underground ventilation monitoring
* Medical instrument and equipment

Advantages
* 6 measuring ranges for on-site setting
* Variable capacitance sensing technology
* Stainless steel argon-arc welding sensitive elements
*Conforming to intrinsically safe explosion-proof ia II CT4(specific 268EX )
* UL94V-0 flame retardant rating
* Standard accuracy is ±1%FS
*Accuracy up to ±0.4%FS,±0.25%FS(special choice)
*Minimum measuring range is 0~100Pa

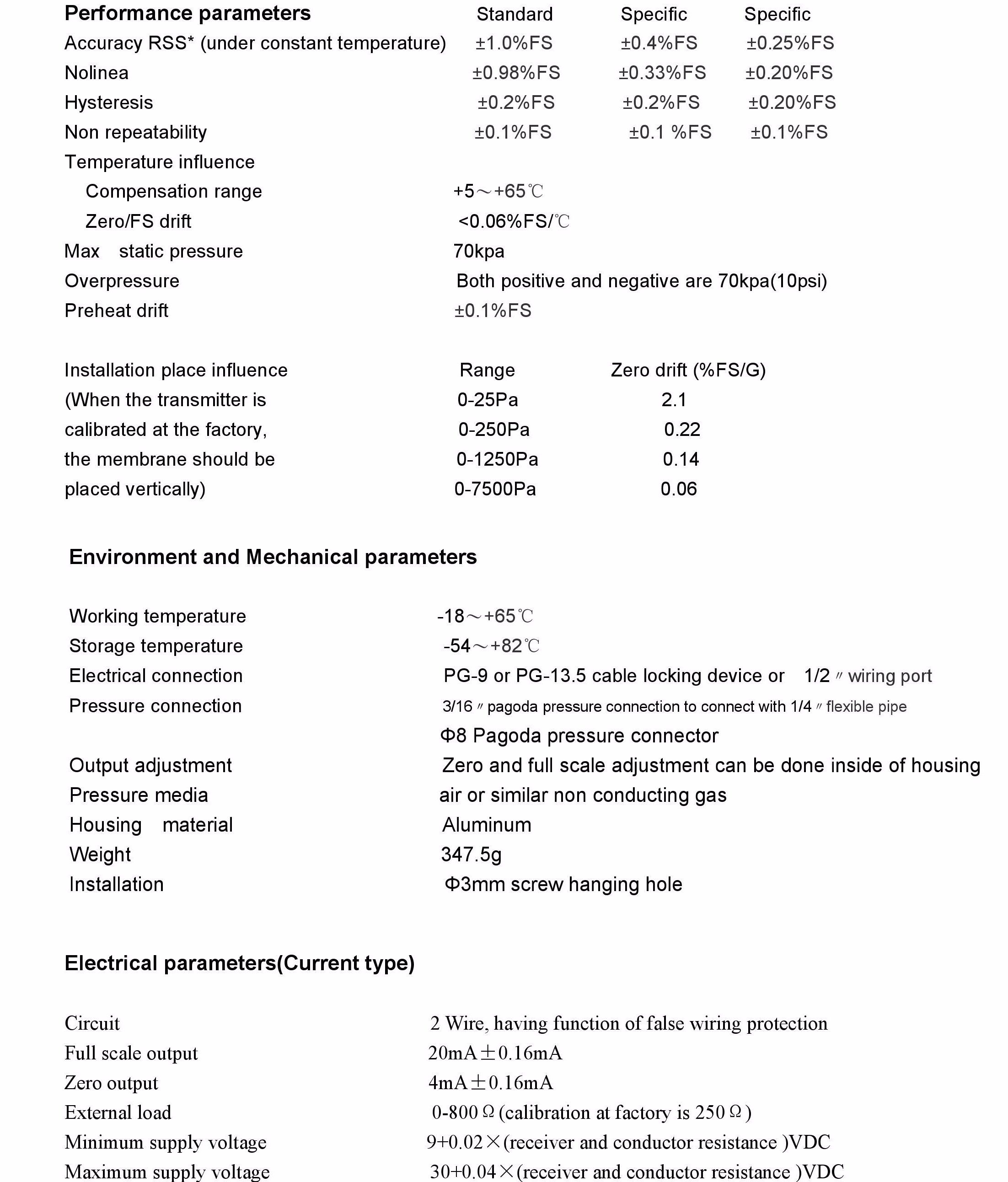

Technical Parameters:

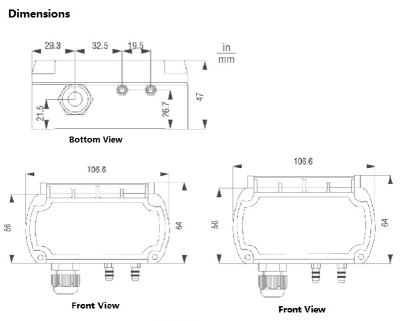

Dimensions
