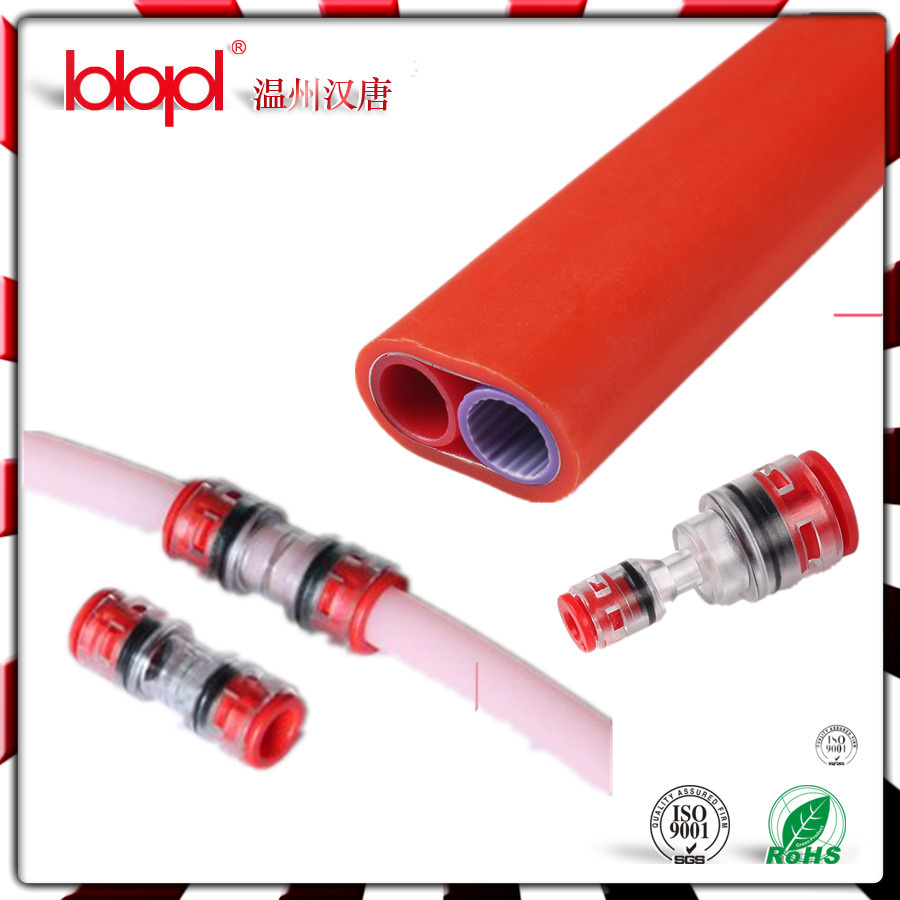

Micro Duct Connector for Optical Fiber Tubing, Used in FTTX System

Name: Micro Duct Connector for Optical Fiber Tubing, Used in FTTX System
Brand: all-electronics-online.com
SKU: 700684805
Availability: InStock
Rating: 4.4 (126 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,DAP,EXW
Min Order:	3000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	All Color
Type:	Multi-mode Fiber
Connection Structure:	SC
Material Shape:	Flat Wire
Allowed Lateral Pressure:	>1000（N/100mm）
Allowed Tensile Strength:	<100N
Core:	Double Core
Certification:	RoHS, ISO9001
Sheath Material:	PVC
Brand:	Blqd
Application:	Communication

Product Description

Key Specifications/Special Features:

Makes splicing fast and easy
Simply push the micro ducts into the center of the coupling
No tools are required
Coupler can be connected and disconnected 10 times and still maintain the high performance requirements for air blown installation systems
Push-fit micro duct connector operates at 15 bar (218psi) with a maximum permissible leakage rate of 1cc/minute, equivalent to 1 bubble for every 3 seconds
Higher pressures have been used in the field with no increase in leakage rate
Quick burst rating: 25 bar (363psi)
Material: Clear PC
Leakage pressure: 15 bar
Negative pressure: -750mmHg (10 torr)
Proof pressure: 25 bar
Temperature range: -10 to 60° C
Tubing type: PE, PU, nylon and polyurethane
Tube outer diameter:
UF03: 3mm
UF04: 4mm
UF05: 5mm
UF06: 6mm
UF07: 7mm
UF08: 8mm
UF10: 10mm
UF12: 12mm
UF14: 14mm
UF16: 16mm

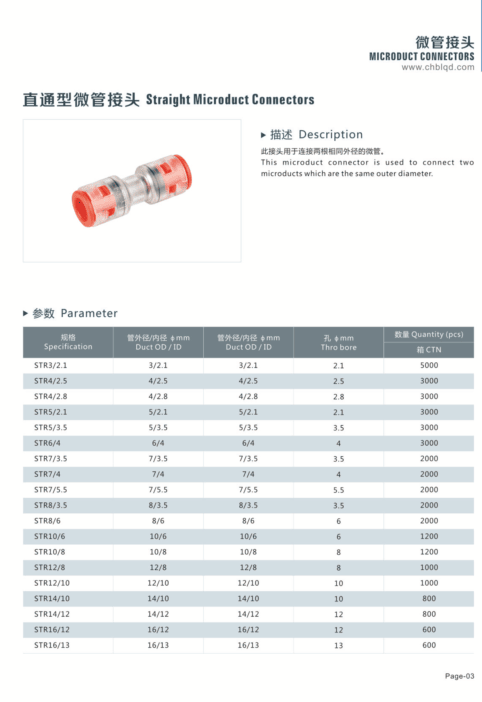

Each part of this series can be sold separately: Models: "UF03", "UF04", "UF05", "UF06", "UF07", "UF08", "UF10", "UF12", "UF14" and "UF16"
