| Prod Model: |

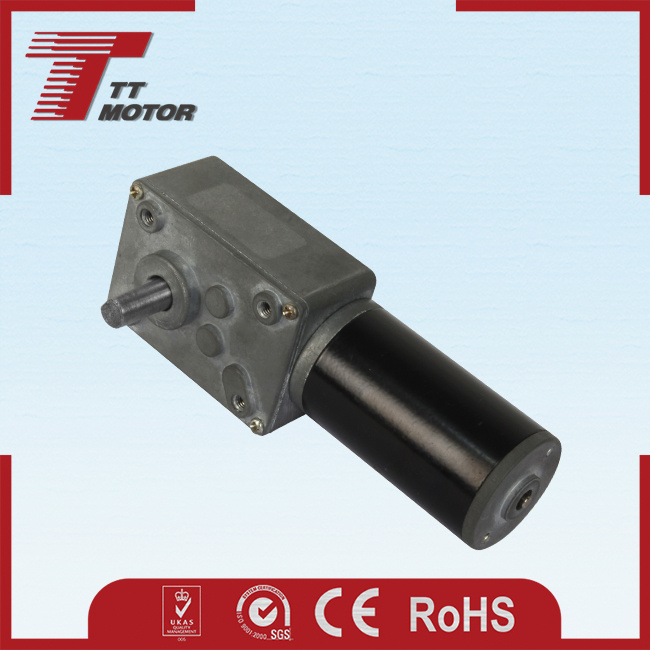

DC Worm Gear motor TWG4058-TEC3650 |
| Product Name: |
DC Worm Gear motor TWG4058-TEC3650 |
| Rated Voltage: |
12-24V |
| Protect Feature: |
Totally Enclosed |
| Output Power: |
15W-138W |
| Motor Net Weight: |
0.43-1.25kg |
| Life Expectency: |
2000hours |
| Axial Play: |
0.05-0.5mm |
| Output Shaft: |
Steel Hardened |
| Shaft Diameter: |
2-8mm |
| Efficiency: |
80%-90% |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brushless |
| Excitation Mode: |
Pm-Permanent Magnet |
| Type: |
Gear Motor |
| Certification: |
RoHS, CE |
| Brand: |
TT Motor |
Product Description
Micro electric 12V brushless DC motor
Gear motor Main Features

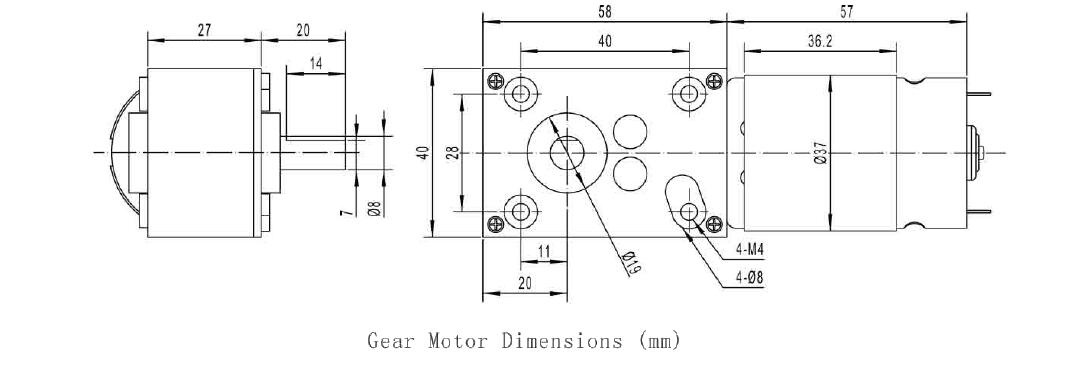

| 1.40*58mm worm gearbox plus 36mm brushless motor |
| 2.Small size dc gear motor with low speed and big torque |
| 3.40mm gear motor provide 2.0Nm torque and more reliable |
| 4.Suitable to small diameter, low noise and big torque application |
| 5.Reduction ratio:81,135,207,405,621 |
Motor technical data :
| Motor model no. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A |
| TEC3650-2465 | 24 | 6500 | 200 | 5400 | 200 | 1000 | 11.5 | 1150 | 2.0 |
| TEC3650-2440 | 24 | 4000 | 120 | 3200 | 200 | 600 | 6.6 | 1000 | 2.0 |
| TEC3650-1245 | 12 | 4500 | 150 | 3500 | 230 | 880 | 8.3 | 820 | 2.5 |
Gear motor technical data : TWG4058-TEC3650-2465-xxx
| Reduction ratio | 81 | 135 | 207 | 405 | 621 |
| Length mm | 58 | 58 | 58 | 58 | 58 |
| No-load speed rpm | 78 | 47 | 31 | 16 | 10 |
| Rated speed rpm | 67 | 41 | 28 | 15 | 9 |
| Rated torque kg.cm | 10 | 19 | 20 | 20 | 20 |
| Max.momentary tolerance torque kg.cm | 30 | 30 | 30 | 30 | 30 |
Gear motor technical data : TWG4058-TEC3650-2440-xxx
| Reduction ratio | 81 | 135 | 207 | 405 | 621 |
| Length mm | 58 | 58 | 58 | 58 | 58 |
| No-load speed rpm | 47 | 28 | 19 | 10 | 6 |
| Rated speed rpm | 39 | 24 | 16 | 8 | 5 |
| Rated torque kg.cm | 10 | 19 | 20 | 20 | 20 |
| Max.momentary tolerance torque kg.cm | 30 | 30 | 30 | 30 | 30 |
Gear motor technical data : TWG4058-TEC3650-1245-xxx
| Reduction ratio | 81 | 135 | 207 | 405 | 621 |
| Length mm | 58 | 58 | 58 | 58 | 58 |
| No-load speed rpm | 53 | 32 | 22 | 11 | 7 |
| Rated speed rpm | 43 | 26 | 18 | 9 | 6 |
| Rated torque kg.cm | 10 | 20 | 20 | 20 | 20 |
| Max.momentary tolerance torque kg.cm | 30 | 30 | 30 | 30 | 30 |
Product Application
| Applications: |
| Business Machines: | ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines. |
| Food and Beverage: | Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Home Entertainment and Gaming: | Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys. |
| Home Technologies: | Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines. |
| Lawn and Garden: | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers. |
| Personal Care: | Hair Cutting, Hair Care, Massagers. |
| Power Tools: | Drills and Drivers, Sanders, Grinders, Polishers, Saws. |
| Camera and Optical: | Video, Cameras, Projectors. |

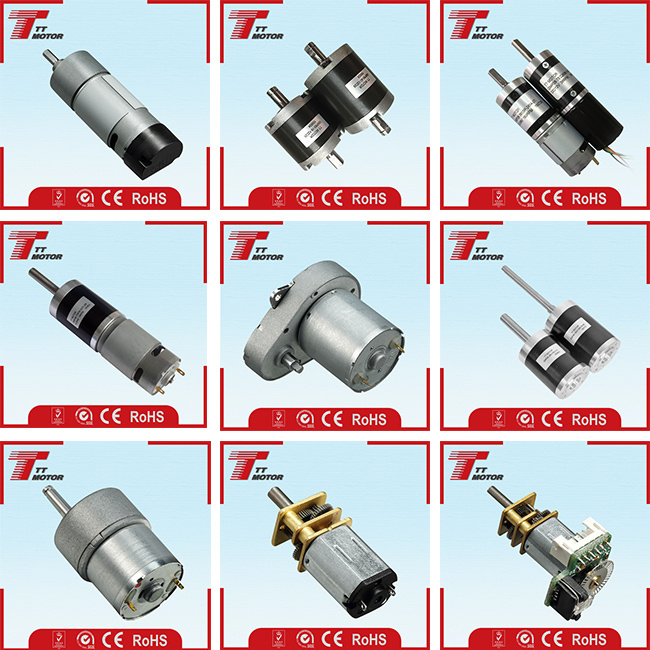

Related Products
Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
By Sea: Depends on which country

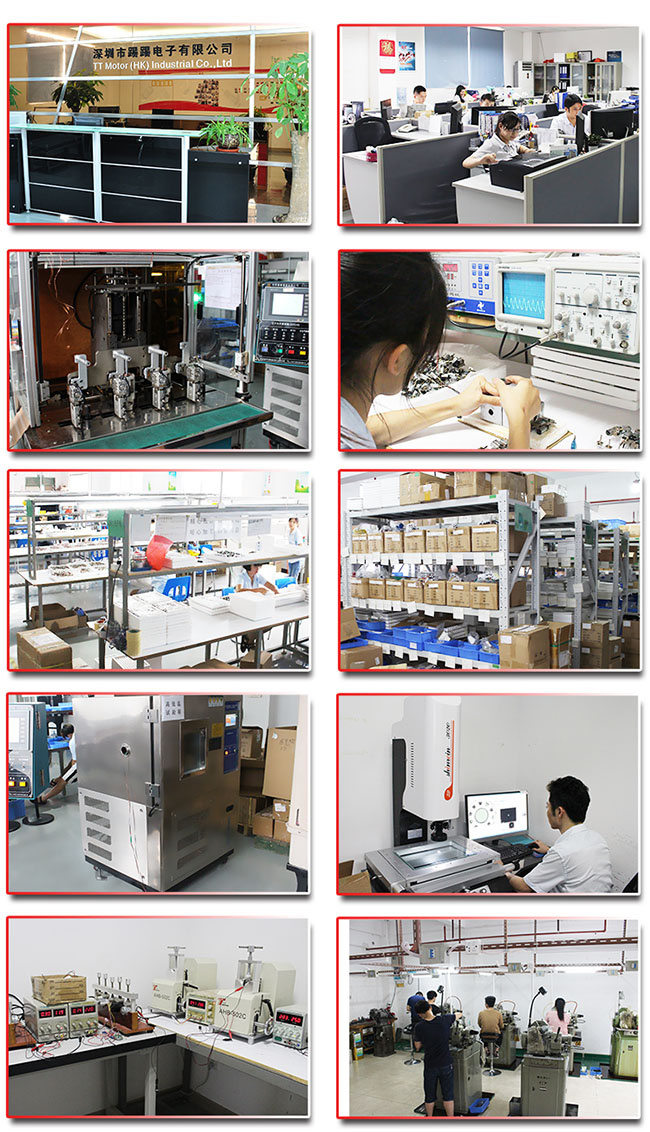

Our Company
