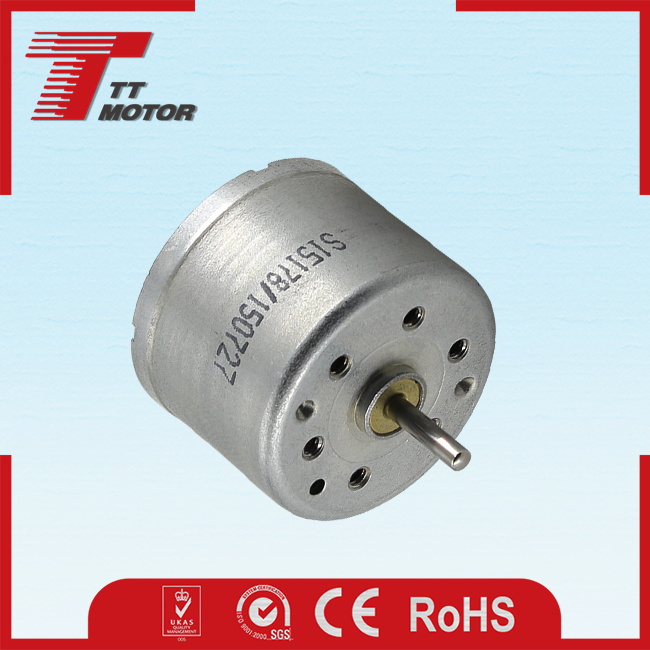

Micro electric 12V DC motor for label stripping machine

Prod Model:	DC Gear Motors TRF-320CH-11470
Product Name:	DC Gear Motors TRF-320CH-11470
Rated Voltage:	12V DC
No-Load Speed:	1000 R/Min
No-Load Current:	25mA
Rated Speed:	8400r/Min
Rated Torque:	10g.Cm
Rated Current:	130mA
Output Power:	0.86W
Stall Torque:	65G.Cm
Stall Current:	0.75A
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	precious metal-brush motor
Type:	Gear Motor
Certification:	RoHS,CE
Brand:	TT Motor

Product Description

Micro electric 12V DC motor for label stripping machine

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc. Main Features
1.27mm gearbox plus 320CH precious metal-brush motor;
2.Small size dc gear motor with low speed and big torque;
3.27mm gear motor provide 0.3Nm torque and more reliable;
4.Suitable to small diameter, low noise and big torque application;
5.Reduction ratio:26,42,73.


Motor model no.	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Rated current	Output power	Stall torque	Stall current
	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
TRF-320CH-11470	12	10000	25	8400	10	130	0.86	65	0.75
TRK-320SH-11420	12	6800	50	5800	20	180	0.30	136	0.80

 Gear motor technical data : GM27-320CH-11470-xxx

Reduction ratio	26	42	73
Length mm	15	15	15
No-load speed rpm	360	220	130
Rated speed rpm	320	200	115
Rated torque kg.cm	0.18	0.25	0.4
Max.momentary tolerance torque kg.cm	1.2	1.6	2.8


Gear motor technical data : GM27-320SH-11420-xxx

Reduction ratio	26	42	73
Length mm	15	15	15
No-load speed rpm	255	155	90
Rated speed rpm	220	140	80
Rated torque kg.cm	0.36	0.5	0.9
Max.momentary tolerance torque kg.cm	2.5	3.4	6.0



Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country

Our company

TT Motor (HK) Industrial Co., Ltd. has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.


FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver?
A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
