| Prod Model: |
JRE-140RA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Torque: |
<20g.Cm |
| Construction: |
Permanent Magnet |
| Commutation: |
Brush |
| Continuous Current(a): |
Constant |
| Output Power: |
0.2W-3.0W |
| Voltage(V): |
Adjustable |
| Rated Voltage: |
1.2VDC-24VDC |
| Typical Applications Toys: |
Toys |
| Size: |
21*25(mm) |
| Brush: |
Metal /Carbon Brush |
| Application: |
Toys and Models Motorized Toy |
| Structure: |
Electromagnetic |
| Casing Protection: |
Totally Enclosed |
| Type: |
Micro Motor |
| Certification: |
Ce, RoHS, UL, ISO9001:2000 |
| Brand: |
Kinglymotor |
Product Description
Packaging & DeliveryPackaging Details2.Customized packing condition per your requirements
Delivery Time5-7 days for samples; 18-25 days for production
A. micro electric dc motor for toy car,
B.variable speed motor low noise,
C.micro motor dc high speed(JRE-140RA)
1.5V-6V dc mini Motor
1.Low noise high speed long-life
2.Motor Voltage:1.5v-6v
3.The shaft:dia 2.0mm
4. Motor Diameter:21mm length:25mm It is a round
5.Output power:approx 0.2W~3.0W
6.Certification:CE,ROHS ISO9001:2000
7. Metal-brush motors
8.The motor weight:19g(Approx)
9.Motor direction of rotation :CW &CCW
10.1.5v-6v mini dc Motor Typical Applications:toys and models motorized toy motorized plastic model
11.Motors specefication and shaft length can be tailor-made according to customer's requirement

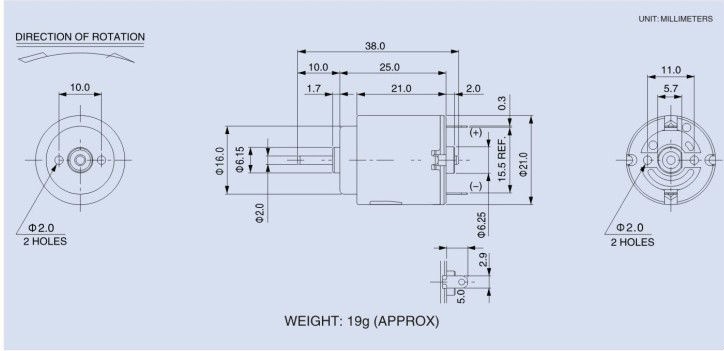

Dimension:
