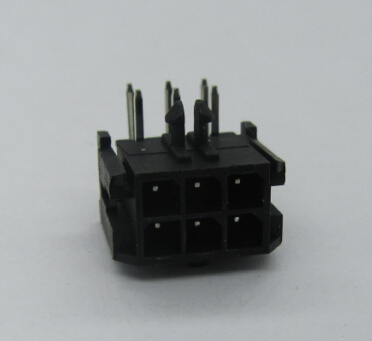

Micro Fit 3.0mm Wafer Connector Dual Rowavailable with Difference Poles From 2X1p to 2X12p, PA66, UL94-V0, Tin Plated

Micro Fit 3.0mm Wafer Connector Dual Rowavailable with Difference Poles From 2X1p to 2X12p, PA66, UL94-V0, Tin Plated
Price: US $ 0.048-0.055/Piece
Min Order: 1000/Piece
Pay Type: T/T,Western Union
Prod Model: MICRO FIT 3.0MM WAFER

Product Description

1). Housing:
Current Rating: 5A AC, DC
Voltage Rating: 250V AC, DC
Temperature Range:V2: - 25° C~+85° C
                                 V0: - 40° C~+130° C
Contact Resistance: 10mΩ Max.
Insulation Resistance: 1000MΩ Min.
Withstanding Voltage: 1500V AC/minute
Material: Nylon66 UL94V-2/UL94V-0
UL file No.: E304945
Terminal in housing retention force requirement: 2.5kg(Min.)

2). Crimp terminal:
Current Rating: AWG#20-24: 5A AC, DC  AWG#26: 3A AC, DC
                         AWG#28: 2A AC, DC  AWG#30: 1A AC, DC
Voltage Rating: 250V AC, DC
Contact resistance: 10mΩ Max
Withstanding Voltage:1500V AC/minute
Wire size: AWG#30-#20
Material: Phosphor bronze
Finish: Tin-plated
Thickness: 0.20mm
Qty/reel: 10000pcs.
Terminal in housing retention force requirement: 2.5kg(Min.)

3). Header:
Current Rating: 5A AC, DC
Voltage Rating: 250V AC, DC
Operating Temperature: -40ºC to +130ºC
Contact Resistance: 10mΩ max
Insulation Resistance: 1000MΩ min.
Withstanding Voltage: 1500V AC/minute
Material:Housing: NylonUL46 UL94V-0
              Pin: brass, tin plated
Mate with: P3025 series
Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
