Micro Gear Motor 12V 25mm for Vending Machine

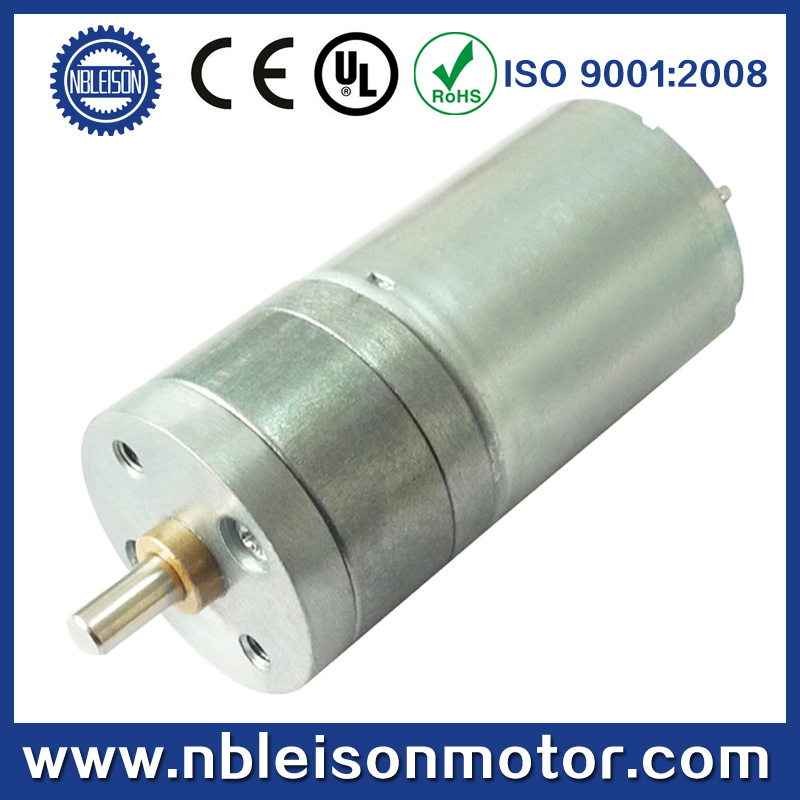

Name: Micro Gear Motor 12V 25mm for Vending Machine
Brand: all-electronics-online.com
SKU: 754455535
Availability: InStock
Rating: 5 (68 reviews)

Price:	US $ 3.58-6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LS-25GA370
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gear:	Metal Gear
Construction:	Permanent Magnet
Commutation:	Brush
Rotation Direction:	Reversible
Shaft:	Round, D-Cut, Hole Thread or Other Customized
Gear Type:	Spur Gear
Lubrication:	Grease
Structure And Working Principle:	Brush
Operating Speed:	Low Speed
Application:	Robot, Toys, Door Lock, Monitor

Product Description

12V DC gear motor

1. Length of Gearbox: 21mm, 23mm, 25mm, 27mm, 29mm

2. Application: Automatic Curtain, Vending Machine, Screwdriver Electronic toy, Automatic door-lock

3. Dimension: 25mm dia gearbox, 30.8mm motor body length, 4mm shaft diameter, 11mm standard shaft length

4. Can accept customizied requirment after evaluation.

The datasheet only typical data for reference, Please fell free to contact with me if you want this motor

Specificaton or drawing.

Specification:

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY					STALL
	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TOROUE		OUTPUT	TOROUE		CURRENT
	NOMINAL	r/min	mA	r/min	mA	mN. m	g. cm	W	mNm	g. cm	mA
LS-25GA370-98	12	59	40	48	170	176	1800	0.88	941	9600	1060
LS-25GA370-274	12	20	35	16.6	137	436.1	4450	0.55	980	10000	450
LS-25GA370-362	12	200	55	180	110	147	1500	1.2	294	3000	400

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
