| Prod Model: |
M558 |
| GSM Module: |
Quectel M26 |
| GPS Chipset: |
U-Blox 7020 |
| GSM Frequency: |
850/900/1800/1900 MHz |
| GSM Antenna: |
Built-in |
| Warranty: |
1 Year |
| Accuracy: |
5 Meters |
| Gross Weight: |
0.2kg |
| Size: |
55mm *28mm* 12mm |
| Platform: |
Web Based Platform and APP |
| Price: |
Big Discount on Bulk Quantity |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Model: |
M558 |
| Screen Size: |
No Screen |
| Chip: |
U-Blox |
| Brand: |
Myrope |
| Certification: |
ISO9001 |
Product Description
Micro GPS Tracking Device for Motorcycle/Car/Truck
1. Product Overview
GPS tracker-motorbike tracker, motorbike GPS tracker, motorcycle alarm, GPS bike tracker GPS,vehicle gps tracker ,gps car M558 use GPS+LBS double solution which support sos ,ACC and microphone relay to stop car and resume .
2. Functions
| Smallest size, as small as USB dongle | Parking alarm; |
| Built-in antenna; | Tired driving alarm; |
| Track by SMS or GPRS; | History playback; |
| Real time tracking at intervals; | Mileage statistics; |
| Resend data from signal dead zone; | Reports statistics; |
| Low power alarm; | Remotely update firmware. |
| Overspeed alarm; | |
| Geo-fence alarm; | |
3. Specifications| Items | Parameters |
| GSM Module | Quectel M26 |
| GSM Frequency | 850/900/1800/1900 MHZ |
| LBS Positioning Accuracy | 100-500m |
| GSM Antenna | Built-in |
| GPS Chipset | U-blox 7020 |
| Channels | 20 channels examine track |
| GPS Positioning Accuracy | 5-10m, 2D RMS |
| GPS Antenna | Built-in |
| Working Voltage | 8VDC~100VDC |
| Working Current | 50mA~160mA |
| Operating Temperature | -20ºC-70ºC |
| Humidity | 5%-95% |
| Size | 55mm × 28mm × 12mm |
| Simcard | Normal simcard |
| Battery | Rechargeable lithium polymer battery 110mAh |
| Internal battery Standby | >30minute |

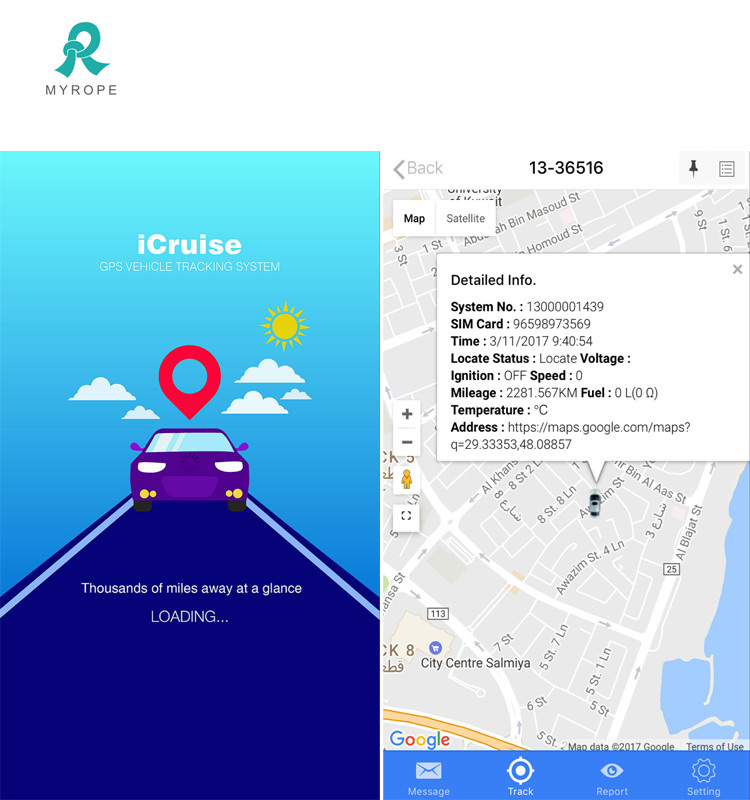

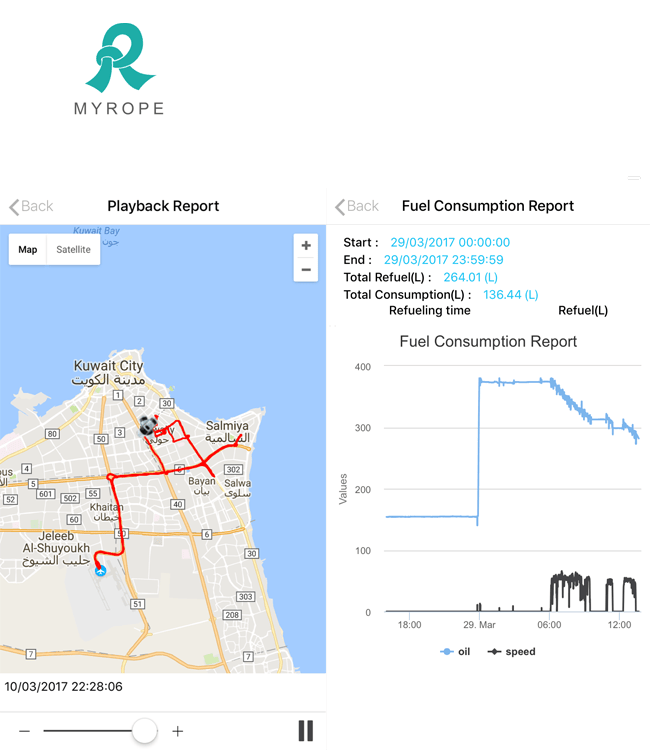

4. Web Platform & APP
1. Cloud server hosted web platform
2. Cloud server hosted Android & iOS APP

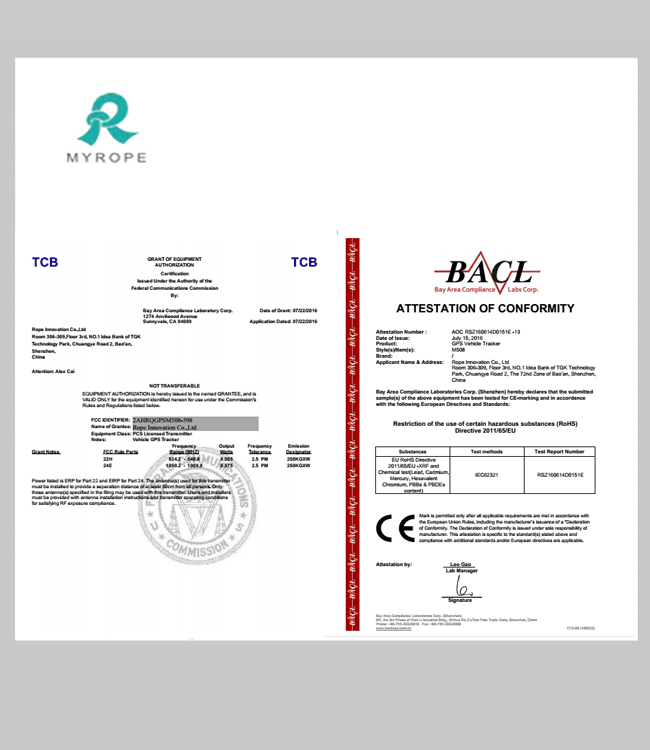

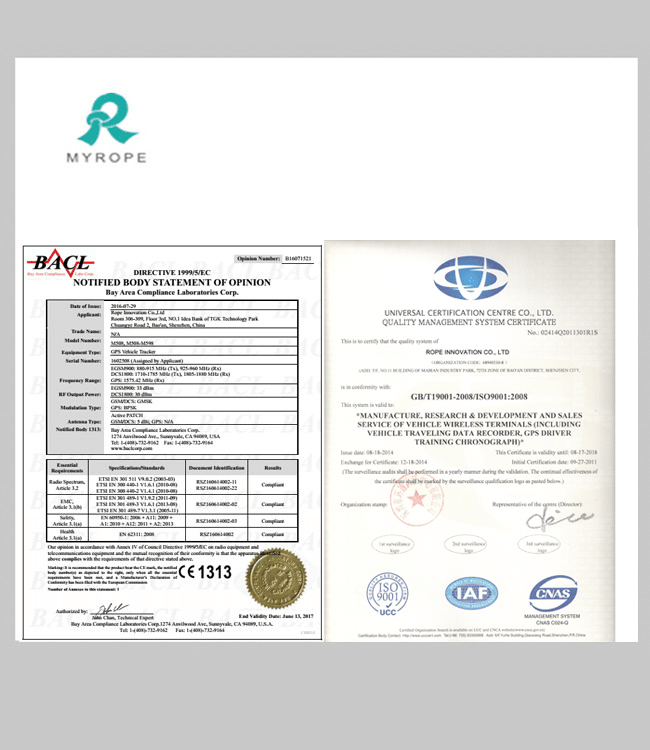

5. Certifications
Focusing on products that are truly superior and innovative, Rope has been awarded China National Hi-tech Enterprise and ISO9001 Quality Certification,
Rope's products have passed the international certification SGS,Design Patent, CE, FCC,Rohs and grown to become one of the largest manufacturers and exporters of GPS tracking products in China.
6. Packaging & Shipping
1 Main device with battery
1 power cable

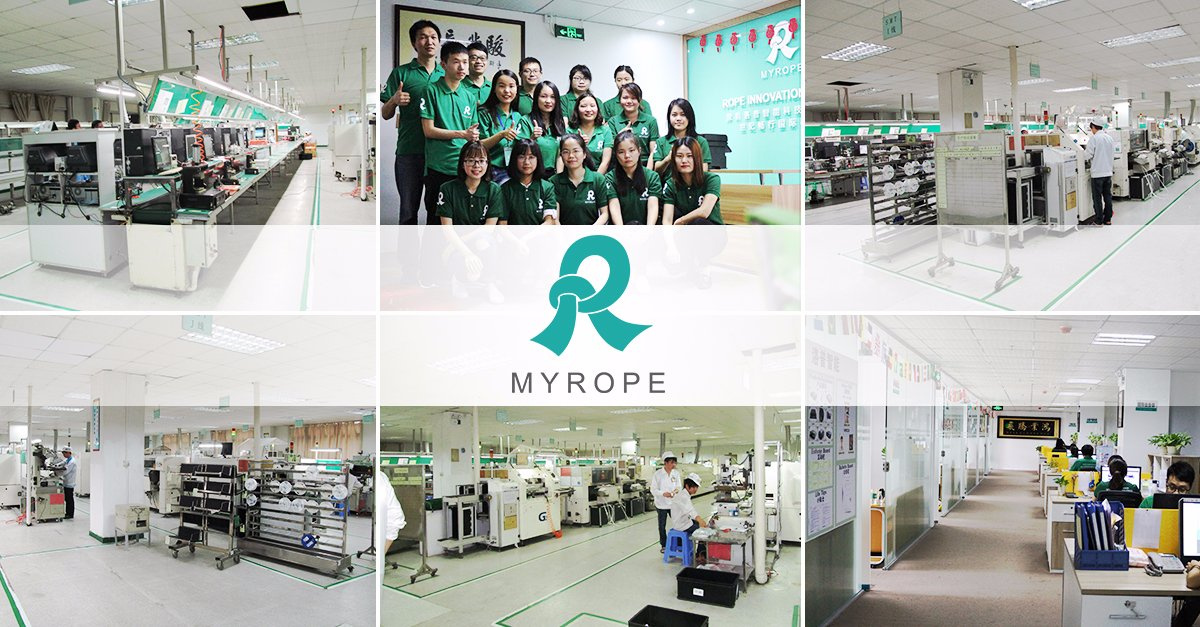

7. Company Information
Rope based in Shenzhen, China with Two huge square meters state-of-the-art modern factory, Rope is dedicated R&D team has over 11 years of experience in design, prototyping,
integration and testing products that are high quality and truly innovative, and satisfying buyers from more than 100 countries.
There are over 30 agents in Asia , Africa , Middle East ,Europe ,North America ,South America Office,India Office.
8. Our Services
1) Free maintain software 7/24 hours . One To One After-Service
2) OEM includes,
Logo Design,
Color Boxes Production,
Manual DIY,
Software System Customization
9.Our patners
Rope has partners in more than 100 countries, the following is some of our partners for your reference.
JUST INQUIRY NOW!
ROPE INNOVATION CO Ltd, a technology creative company, with its principal office at Shenzhen the special economic zone of China, is engaged in researching and manufacturing various kinds of telecom electronic products and professional in the field of GPS tracking solutions.
Within 10 years development, We had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. With the purpose of improving the quality and safety of products and satisfying the requirements of all kinds of customers, we have obtained ISO9001-2008 international management system and types of certificates for products like CCC, CE, FCC, RoHS and explosion-proof certificate early or late, and succeeded in applying our tracking system in construction machine management, logistics fleet management, bus fleet management, taxi solutions and anti-theft system for private cars, person, pets and assets etc. Owning an experienced R&D team with its member of more than 30 engineers, we are able to offer customers ODM and OEM service to customize the brand-new products as per your particular requirements.
With the effort of the entire excellent team, we registered the brand of "MYROPE", gradually became one of the lead in the GPS tracking industry and enjoyed a great popularity worldwide. We were and will go on keeping the tenet of "Flawless quality, Meticulous Service and Endless Innovation" in the progress of development in order that we can all the way provide customers with advanced, stable and high performance products and satisfactory service.
We sincerely hope that we could create a more convenient and safer life for the whole civilians of the world together with you.
