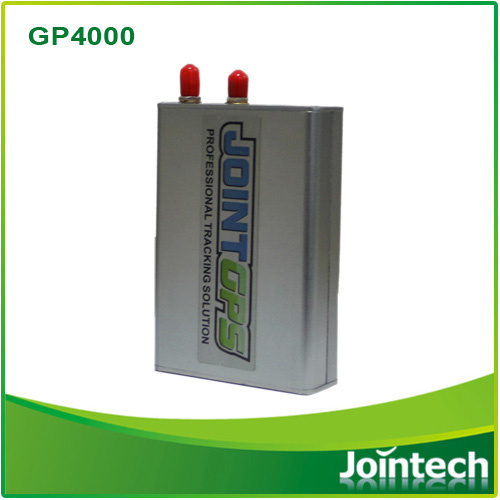

Micro GPS Transmitter Tracker (GP4000)

Name: Micro GPS Transmitter Tracker (GP4000)
Brand: all-electronics-online.com
SKU: 709035985
Availability: InStock
Rating: 4.6 (64 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GP4000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	103x71x26mm
Weight:	750g (Include Standard Accesorries)
Supported Accessories:	Level Sensor, Printer Mdt, Camera, Temperature Sen
Use:	Automotive
Type:	GPS Tracker
Screen Size:	No Screen

Product Description

System features:

1. The vehicle GPS tracker GP4000 has TCP/UDP/SMS communication. It features intelligent power management and four power modes.

2. Real-time tracking including time, distance interval, or intelligent mode is available with the vehicle GPS tracker GP4000.

3. Features data security: 360 pieces GPRS blind area data report in cache and 43200 pieces of history data in Flash.

4. Can realize the regional set of multilateral regions and the speed limit for 100 roads.

5. Has a GPS antenna open circuit and short circuit detection. It has long distance monitoring or two-way calling.

6. Has terminal self checking, self recovery, self protection and build-in battery.

7. Has many types of alarms: Enter/exit fencing, overtime parking, fatigue driving, over speed, SOS, backup battery starting, illegal iginition, emergency brake, neutral sliding, terminal resarting, abnormal oil level, safety belt unfastening, etc.

8. With RS232 serial port and can be equipped with MDT.

9. Features a 6-channel digital inputs, and 5-channel digital outputs. One channel analog signal input (0-5V) and one channel pulse signal input (>3.8V, 2kHz).

Type	Description
Basic Function	TCP/UDP/SMS Transmission Mode	TCP/UDP/SMS
	Data auotomatic upload	Time interval / Distance interval
	Data flow control Power Saving Mode	Factory Setting
		Definition by User
		GPS module power off
		GPS and GSM module power off
	Management time of uploading	Time/Day/Week
	Mileage Statistics	GPS/Electronic
	Remotely listen-in	Build in
	Geo-fence	64 kinds
	Alarm kinds	GPRS/SMS/Email
	Domain name supporting
	Blind area data supplementary uploading
	History data storage (43200pcs)
	GPS antenna open / short detection
	Automatic self-check, recovery, protection, build-in backup battery
Control Function	Remotely cut fuel supply
External Device	Dispatch Screen	Message exchange between driver & Center
	Dispatch Screen	Two-way Voice Call
	Fuel Sensor (Analog)	Single signal
I/O Port	6 Switch signal input (4 high level trigger, 2 low level trigger)
	1 Analog sigal input (0 - 5 V)
	1 Pulse signal input (< 3.8V, 2kHz trigger)
	5 Switch signal output (< 500mA)
	1 Serial port
Parameter	Dimensions (LxWxH)	103 x 71 x 26 mm
	Weight	750g (including standard accessories)
	Power Consumption	60mA - 100mA
	Input Voltage	10 - 30 V
	Backup Power	8.4V 400mAh Ni-MH battery
	GPS	SIRF Star III
	GSM	850/900/1800/1900Mhz
