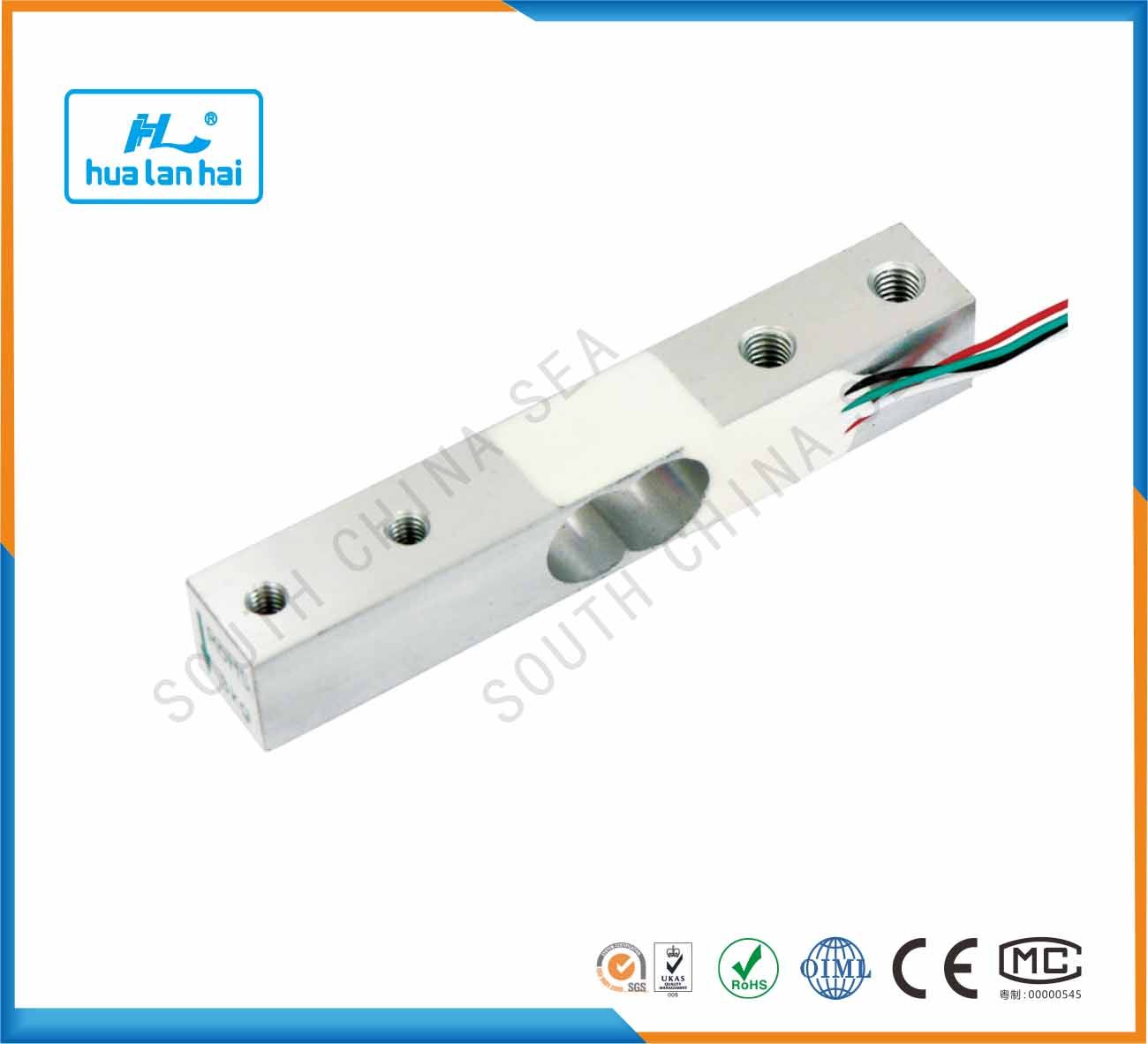

Micro Load Cell (CZL611N)

Name: Micro Load Cell (CZL611N)
Brand: all-electronics-online.com
SKU: 668177731
Availability: InStock
Rating: 4.6 (25 reviews)

Price:	US $ 2.2-3/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL611N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	80×12.7×12.7mm
Wire Length:	0.8X200
Output:	Analog Sensor
Pattern:	Single Point Type

Product Description

Applications:

Our micro-load cells can be applied in body scales, hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighing systems.

Parameters:
1. Rated Load: 3-50kg
2. Rated Output: 1.0+/-0.15mV/V
3. Zero Balance: +/-0.1mV/V
4. Nonlinearity: +/-0.05%F.S
5. Hysteresis: +/-0.05%F.S
6. Reapitability: +/-0.05%F.S
7. Creep: +/-0.05%F.S(3min)
8. Input Resistance: 1090+/-100 ohm
9. Output Resistance: 1000+/-10 ohm
10. Insulation Resistance: ≥2000Mohm
11. Temperature Effect on Zero: +/-0.05%F.S/10 deg C
12. Temperature Effect on Sensitivity: +/-0.05%F.S/10 deg C
13. Four-Angle Error: +/-0.1%F.S
14. Ultimate Overload: 150%
15. Wires: Energize+(red), Energize-(black),Signal+(green), Signal-(white)
16. Excitation Voltage: 3~10VDC

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
