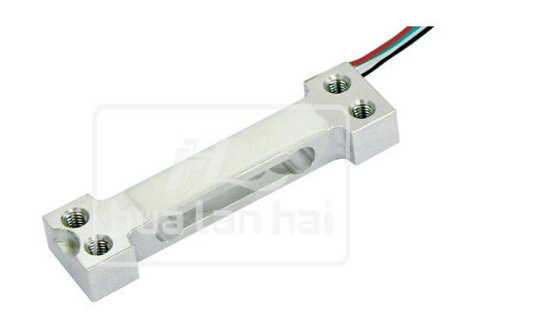

Micro Load Cell -Czl639hb

Name: Micro Load Cell -Czl639hb
Brand: all-electronics-online.com
SKU: 827589285
Availability: InStock
Rating: 5 (112 reviews)

Price:	US $ 2/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL639HB
Pattern:	Micro Load Cell
Material:	Aluminium Alloy

Product Description

TMaterial:     aluminium alloy
Surface:      anodized treatment
Protection:   IP65
Application:   handable scales

1. Rated Load	100-500 (g)
2. Rated Output	0.6±0.2mV/V
3. Zero Balance	±15%F.S
4. Input Resistance	1050±50Ω
5. Output Resistance	1000±50Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.05%F.S
8. Hysteresis	0.05%F.S
9. Repeatability	0.05%F.S
10.Creep(30min)	0.05%F.S
11.Operating Temperature	-10ºC To +50ºC
12.Temperature Effect on Zero	0.15%F.S/10ºC
13.Temperature Effect on Span	0.3%F.S/10ºC
14.Insulation Resistance	2000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	200mm(flat 4-wires)

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
