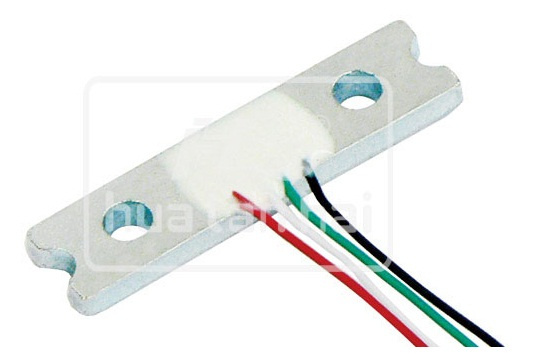

Micro Load Cell -Czl700

Name: Micro Load Cell -Czl700
Brand: all-electronics-online.com
SKU: 827582985
Availability: InStock
Rating: 4.6 (126 reviews)

Price:	US $ 2/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL700
Pattern:	Micro Load Cell
Material:	Aluminium Alloy

Product Description

Micro Weighing Load Cell (CZL700)

Material:     aluminium alloy
Surface:      anodized treatment
Protection:   IP65
Application:   handable scales

Our micro-load cells can be applied in body scales, hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighing systems.

Parameters :
Rated load ( kg )	10-50
Comprehensive error ( %FS )	0.3
Rated output ( mV/V )	1.7 ± 0.15
Dimensions ( mm )	31.8 × 7.9 × H
Cable ( mm )	Φ 0.6 ×110

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
